Square D HGA260502 - 50A Circuit Breaker for I-Line Panelboards
Square D HGA260502 - 50A Circuit Breaker for I-Line Panelboards

Square D HGA260502 - 50A Circuit Breaker for I-Line Panelboards

Square D
Price
Save $594.82
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

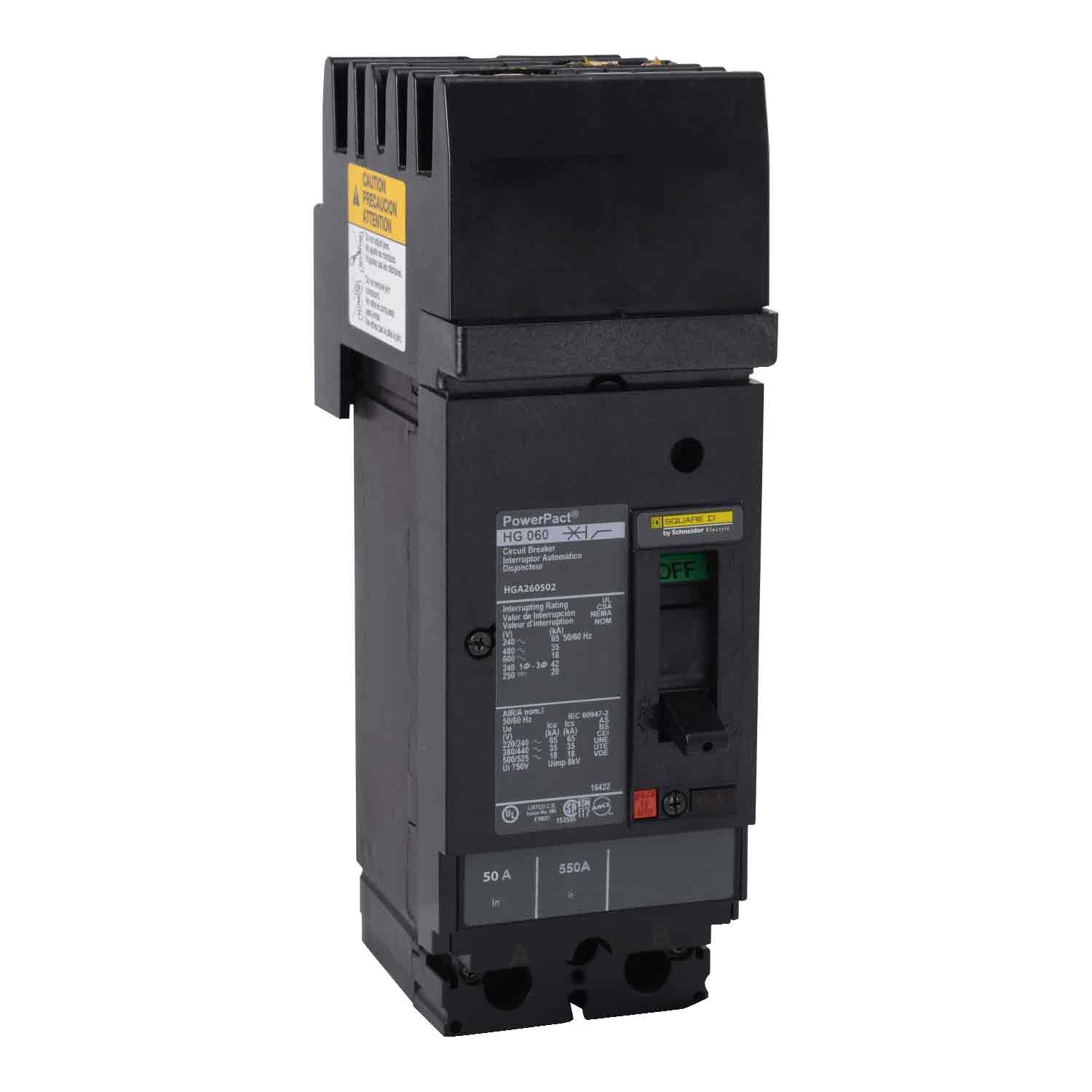

Square D HGA260502 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (H x W x D) and weighing 3.001 lb. This thermal-magnetic breaker is constructed for plug-in connection to I-Line panelboards, offering long-time and instantaneous trip functions with a 35kA interrupting capacity at 480V. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and operates reliably across a temperature range of -25 to 70 °C. Its lug terminals accommodate copper or aluminum conductors from AWG 14 to 3/0, making it suitable for a wide range of commercial and industrial applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 163 mm x 104 mm x 86 mm (H x W x D)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, I-Line panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C
  • Phase: 1
  • AIC rating: 35kA @ 480V
  • Connection: Plug In Panelboard
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Wire Size: AWG 14 to 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: AC
  • Terminal Connection: Lug
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Weight: 3.001 lb


Product Identification
  • UPC: 785901491149
  • GTIN: 00785901491149
