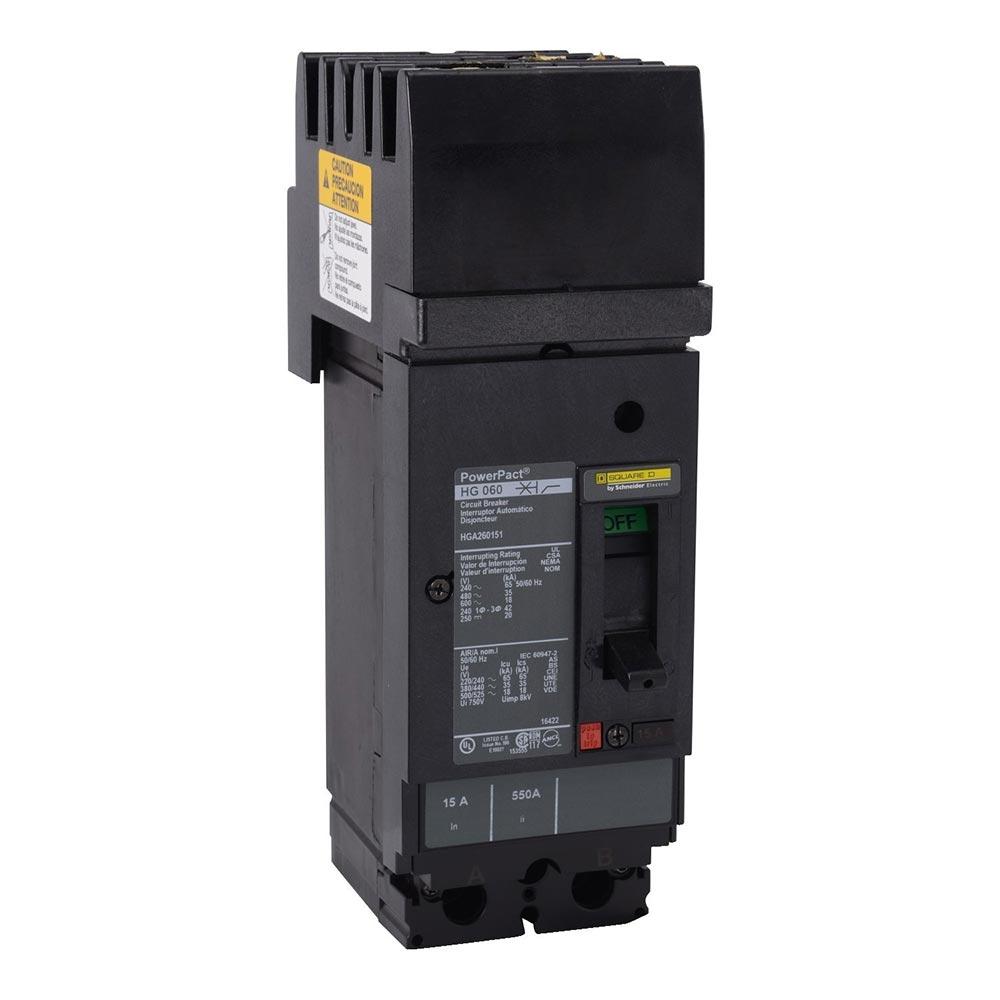

Square D HGA260151 - Molded Case Circuit Breaker 15A 600V
Square D HGA260151 - Molded Case Circuit Breaker 15A 600V

Square D HGA260151 - Molded Case Circuit Breaker 15A 600V

Square D
Price
Save $970.83
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA260151 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 4.068 lb. This thermal magnetic breaker is constructed for bolt-on connection to I-Line panelboards, utilizing lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG for aluminum or copper conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is engineered for a wide operating temperature range of -25 to 70 °C. Typical applications include protecting branch circuits in industrial control panels, commercial distribution boards, and other critical power distribution equipment where a 35kA interrupting rating at 480V is required.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 4.068 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Control Panels, Commercial Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Coil Voltage Maximum: Not Applicable
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Shipping Dimensions: Not Specified
  • Phase: 1
  • Voltage: 600V
  • Amperage: 15A
  • AIC rating: 35kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time, Instantaneous
  • Frame Size: 150A/HG
  • Trip Type: Thermal Magnetic
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Control Voltage Minimum: Not Applicable
  • Control Voltage Maximum: Not Applicable
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Fuse Class: Not Applicable
  • Insulation Temperature: Not Specified
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: Not Specified
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Coil Material: Not Applicable
  • Horse Power: Not Specified
  • Aux Contacts: None
  • CPT: Not Applicable
  • Full Load Amps: Not Specified
  • Dist Voltage: Not Specified
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: Not Specified
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Not Specified
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: Not Applicable
  • Wire: Copper or Aluminum
  • Amperage Maximum: 15A
  • Amperage Minimum: 15A
  • Nema Rating: Included in Standards
  • Switch Style: Not Specified
  • Wire Size: 14 AWG to 3/0 AWG
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: AB
  • Compatible Frames: 150A/HG
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: 150A/HG
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 785901539674
  • GTIN: 00785901539674
