Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P
Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P
Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P
Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P
Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P
Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P

Cutler Hammer HFDE316036L - Molded Case Breaker 160A 480V 3P

Cutler Hammer
Price
Save $11,131.19
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

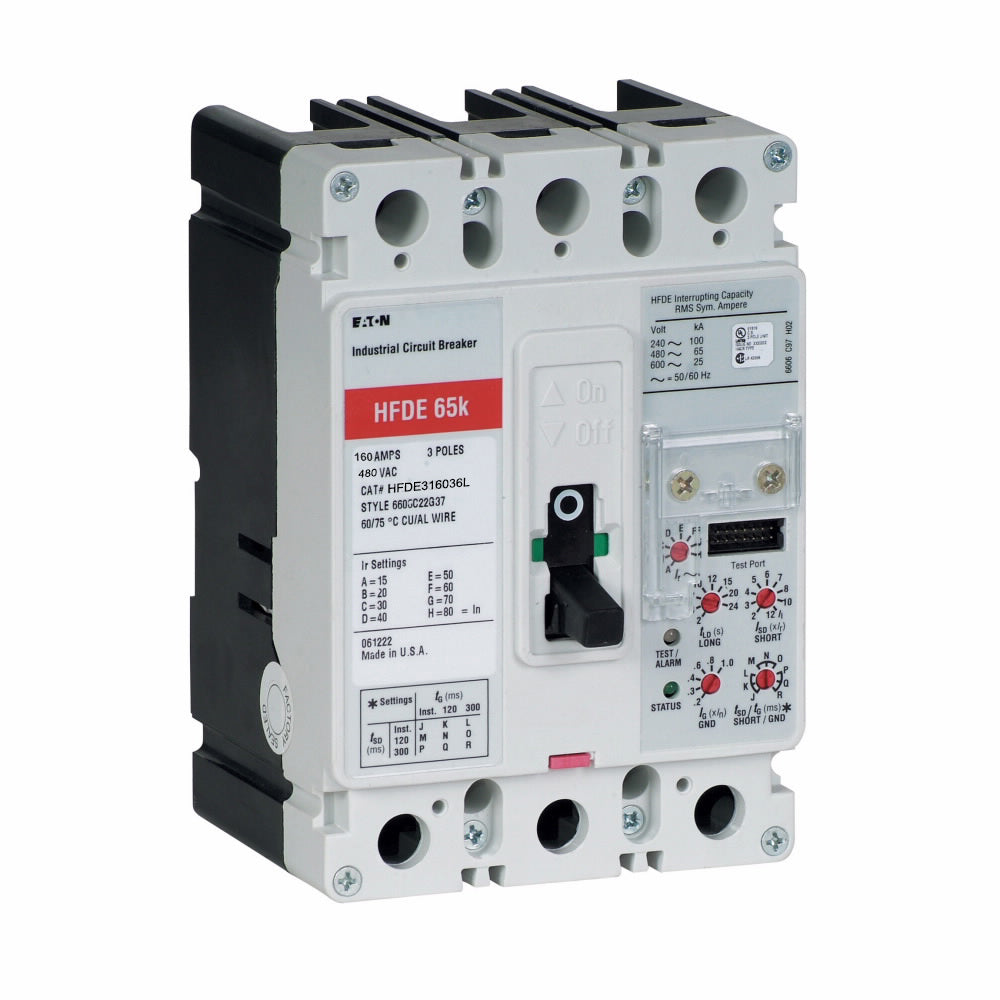

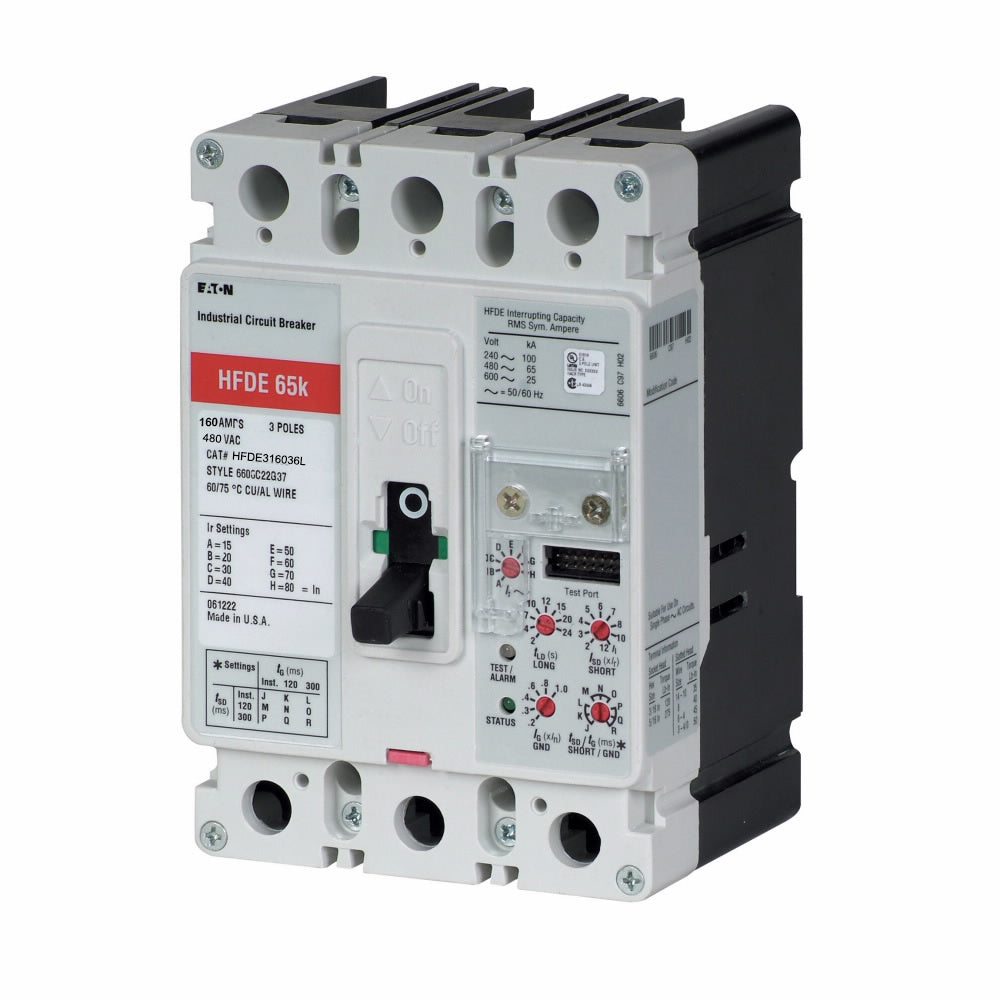

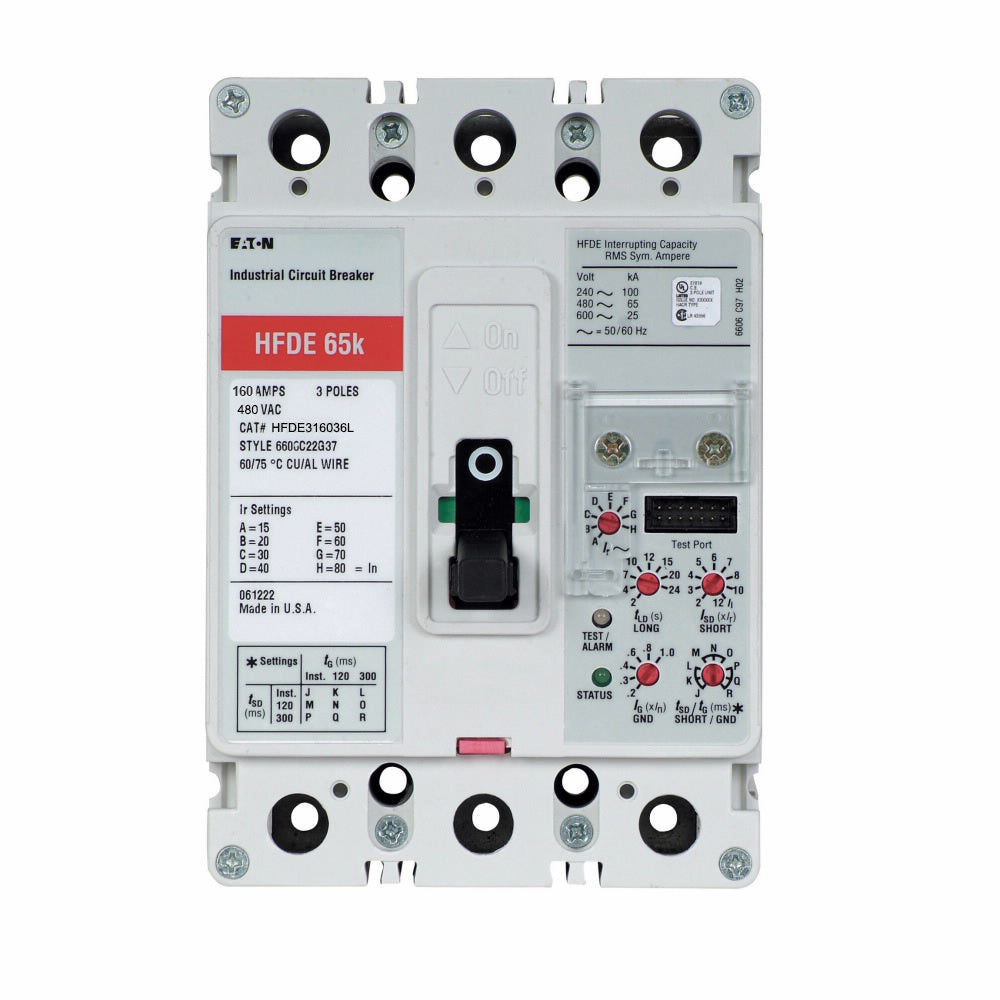

The Cutler Hammer HFDE316036L is a molded case circuit breaker designed to provide comprehensive LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection for three-phase industrial power systems. It features a solid-state trip unit rated for 160A at 480V AC with a 65kA interrupting capacity, housed within a compact F-frame measuring 5" x 7.25" x 5" and weighing 4.4 lb. This UL-listed, feed-thru connection breaker is constructed for reliable performance in demanding environments, meeting rigorous industry standards for electrical safety and system coordination. Its robust design makes it suitable for protecting feeders, motors, and distribution equipment in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Protection, LSIG Functions
  • Voltage Rating: 480V AC
  • Current Rating: 160A
  • Dimensions: 5 in (D) x 7.25 in (H) x 5 in (W)
  • Standards: UL Listed
  • Applications: Industrial Feeder & Motor Protection, Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 160A
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Solid State
  • Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
  • Frame Size: F Frame
  • Trip Type: Electronic
  • Certification: UL Listed
  • Family: Series C
  • Country of Origin: Dominican Republic
  • Weight: 4.4 lb


Product Identification
  • UPC: 786685112756
  • GTIN: 00786685112756
