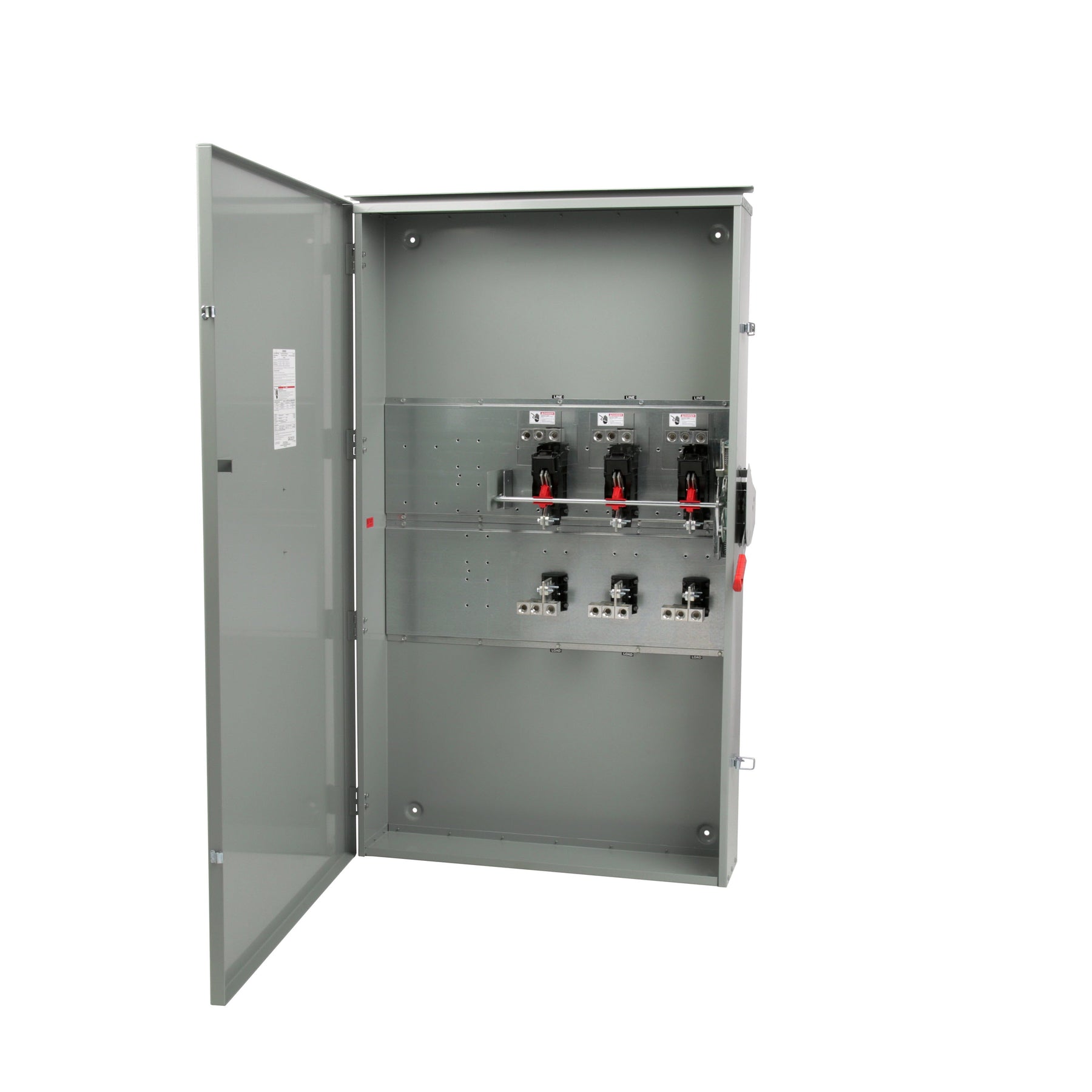

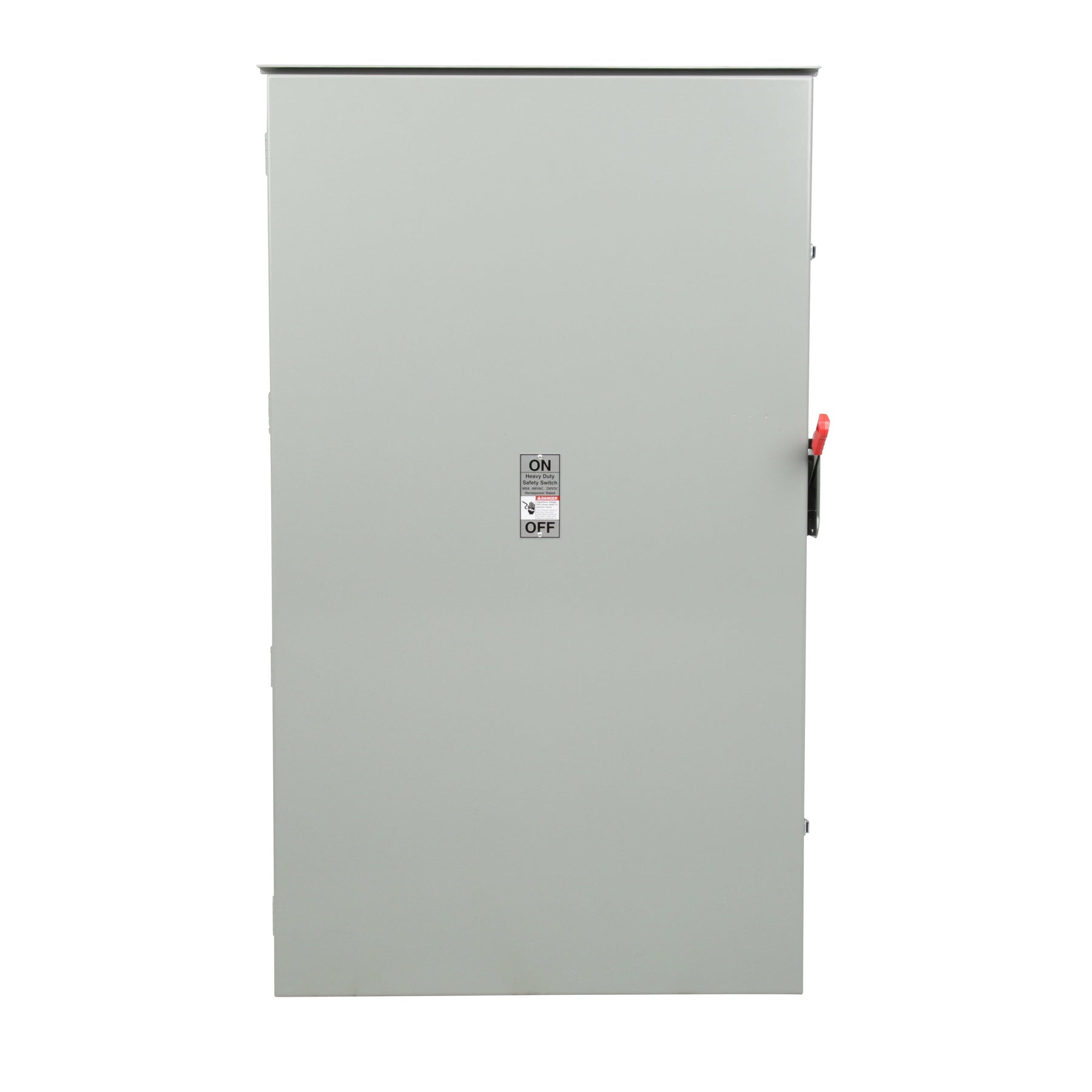

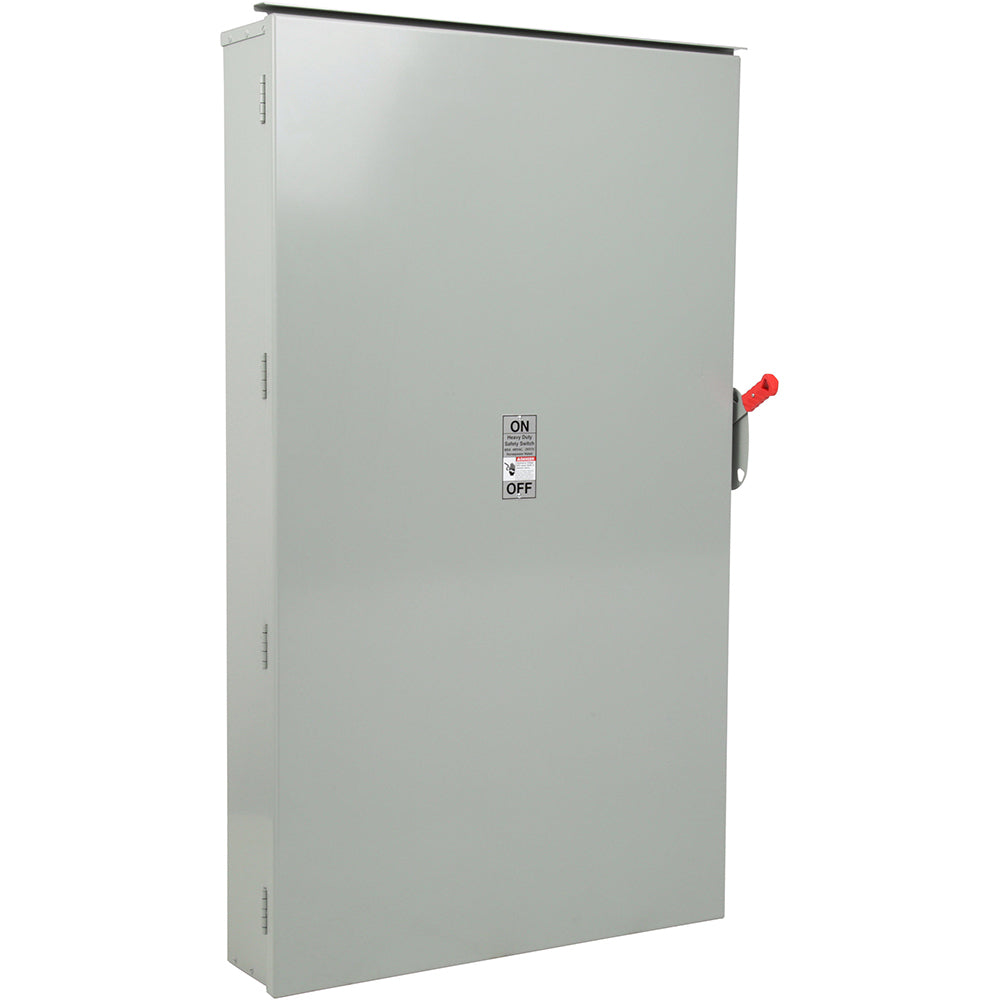

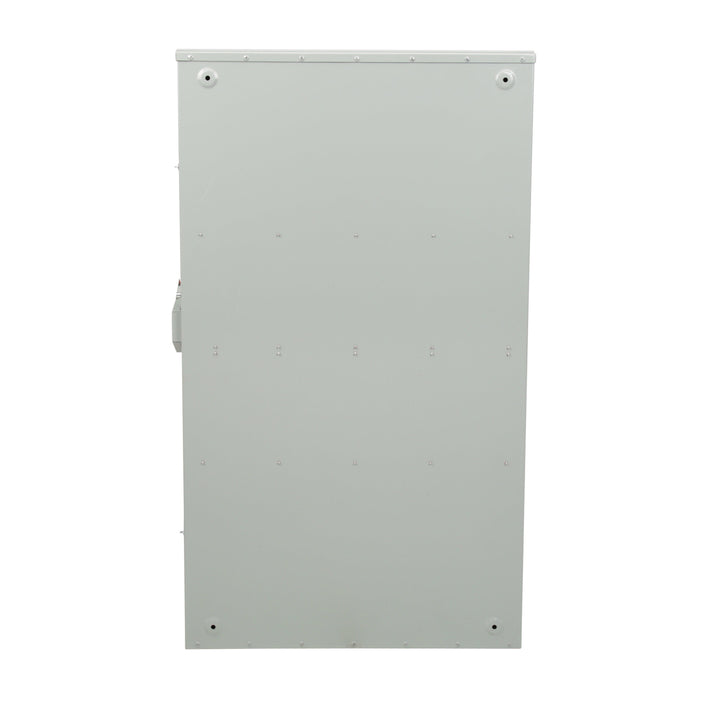

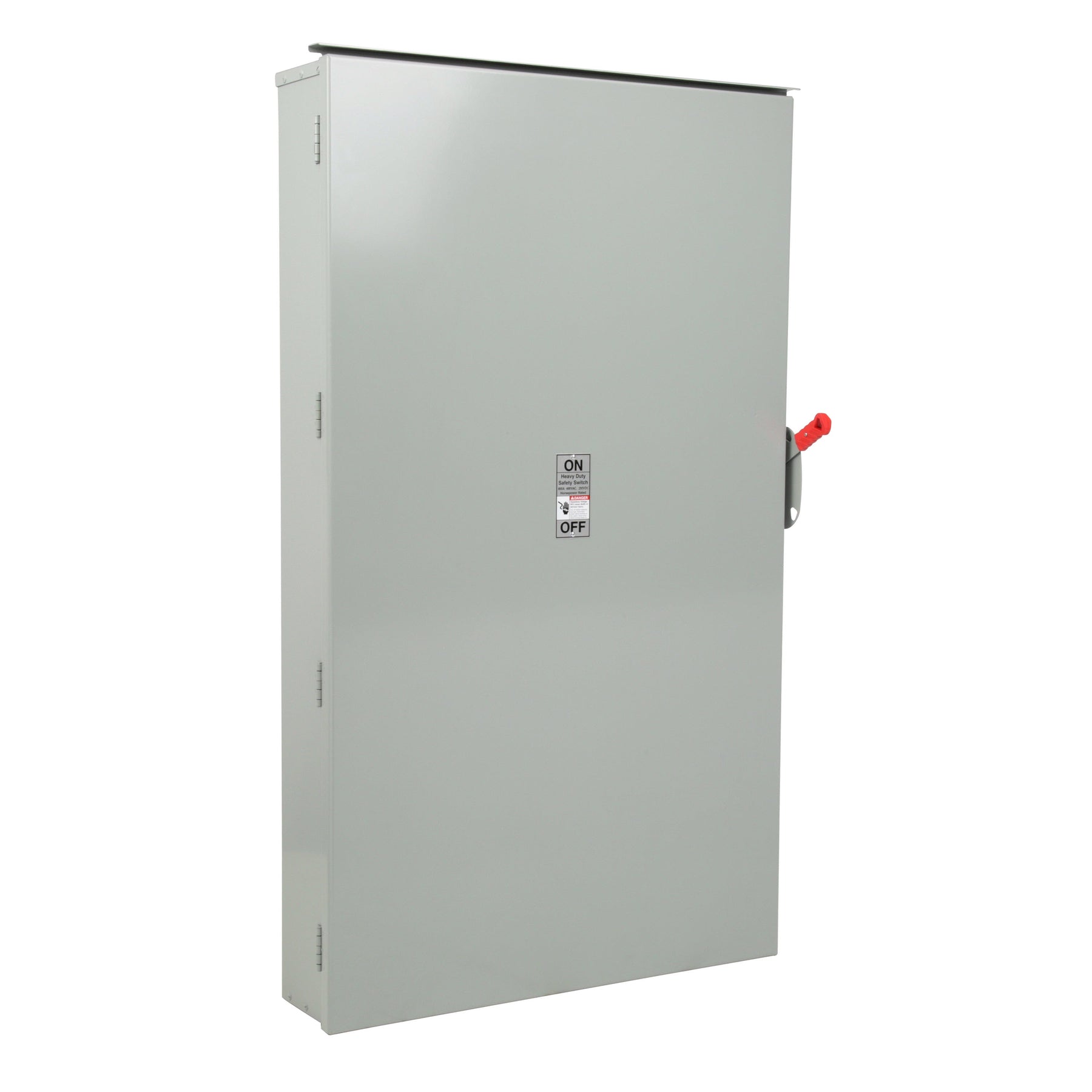

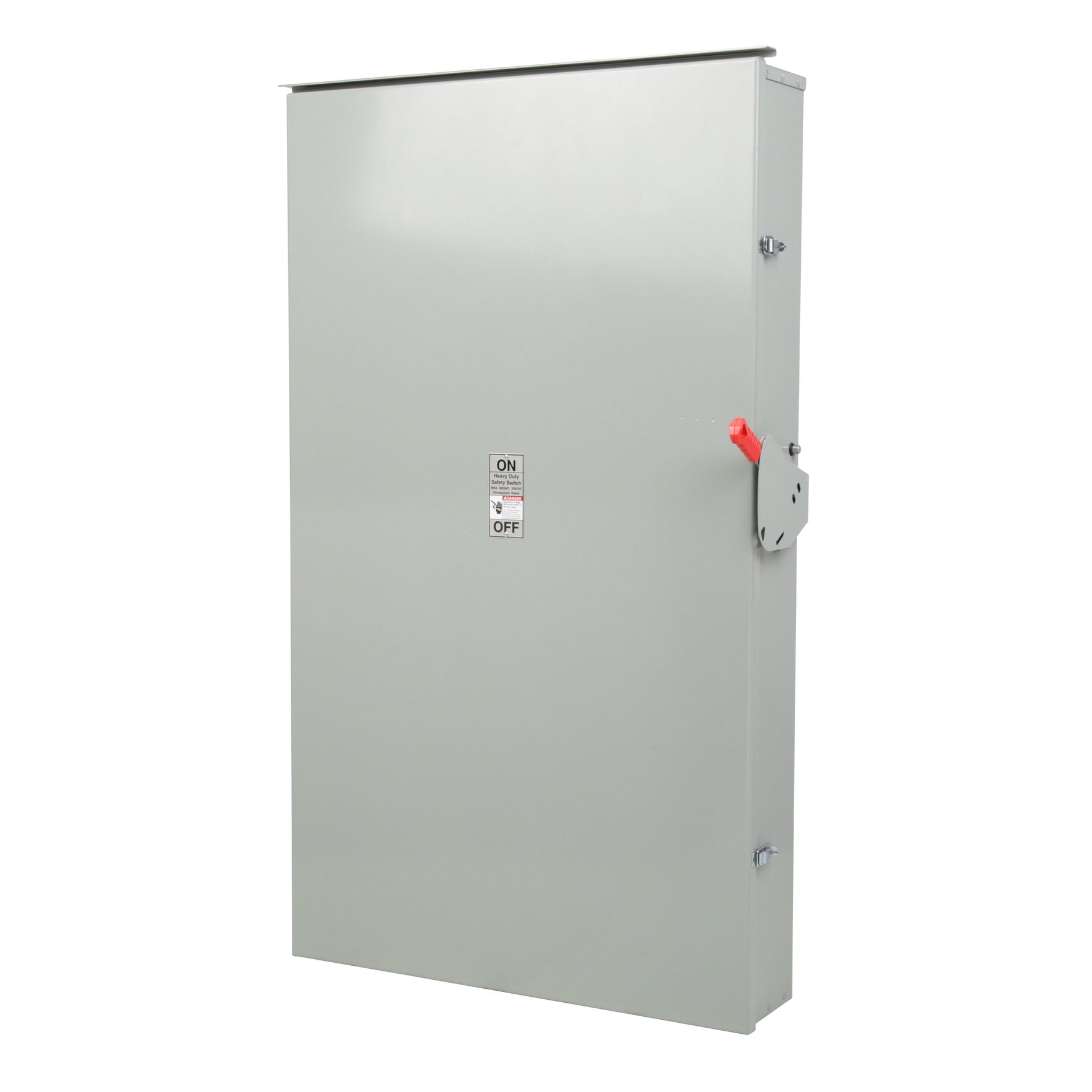

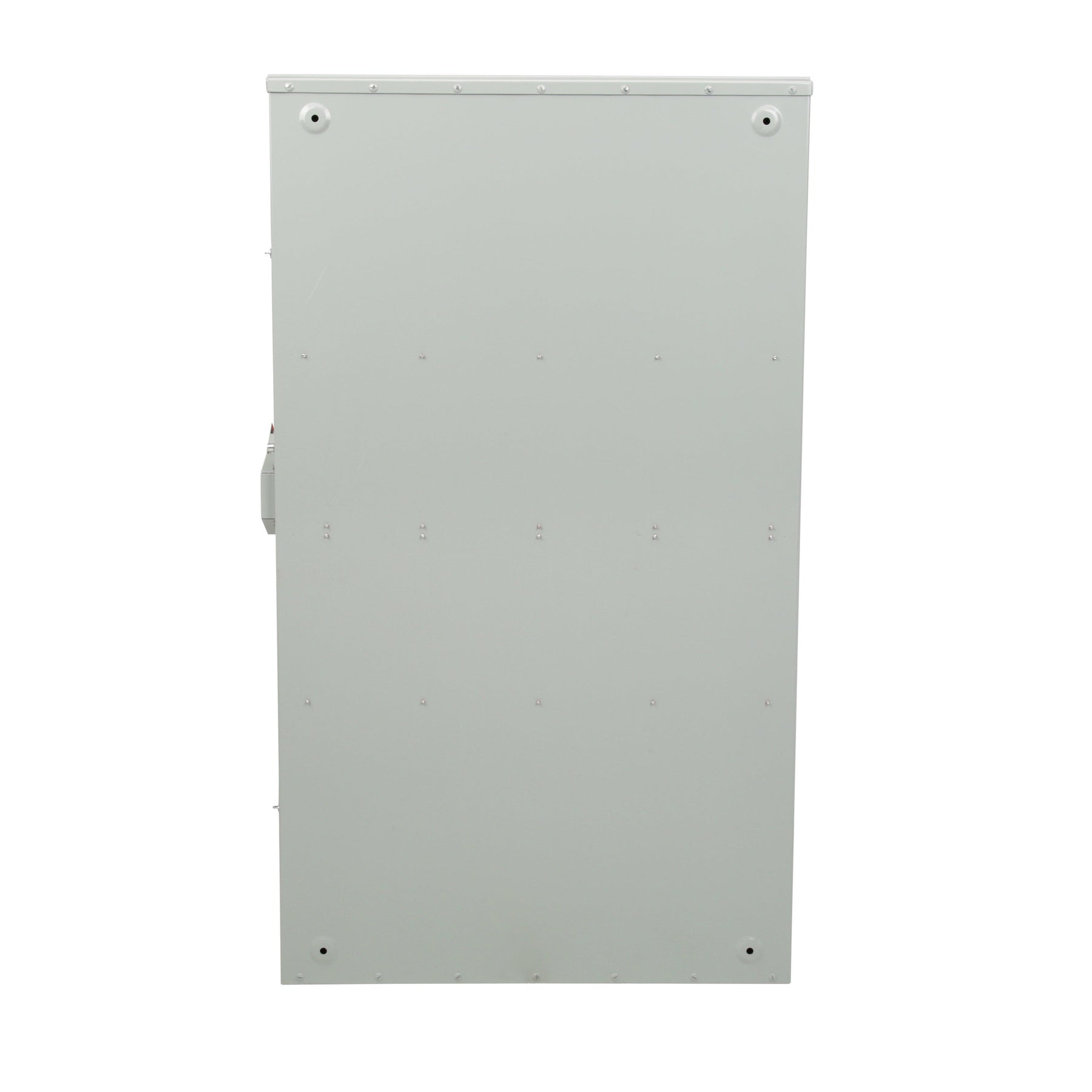

Siemens HF367R is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution systems. It is rated for 800A at 600V AC in a three-phase configuration and features a robust construction with dimensions of 74.803 x 42.913 x 11.811 inches and a weight of 350.733 lb. The switch is UL listed, carries a NEMA 3R enclosure rating for outdoor use, and offers a high interrupting capacity of 200kA at 600V. It is engineered for reliable operation in demanding environments such as manufacturing plants and data centers, with an operational temperature range of -25°C to 70°C (-13°F to 158°F).
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF Type
Voltage Rating: 600V AC
Current Rating: 800A
Configuration: Single, 3-Pole
Interrupting Rating: 200kA @ 600V
Fuse Class: R
Enclosure Rating: NEMA 3R
Phase: 3
Operating Temperature: -25°C to 70°C (-13°F to 158°F)
