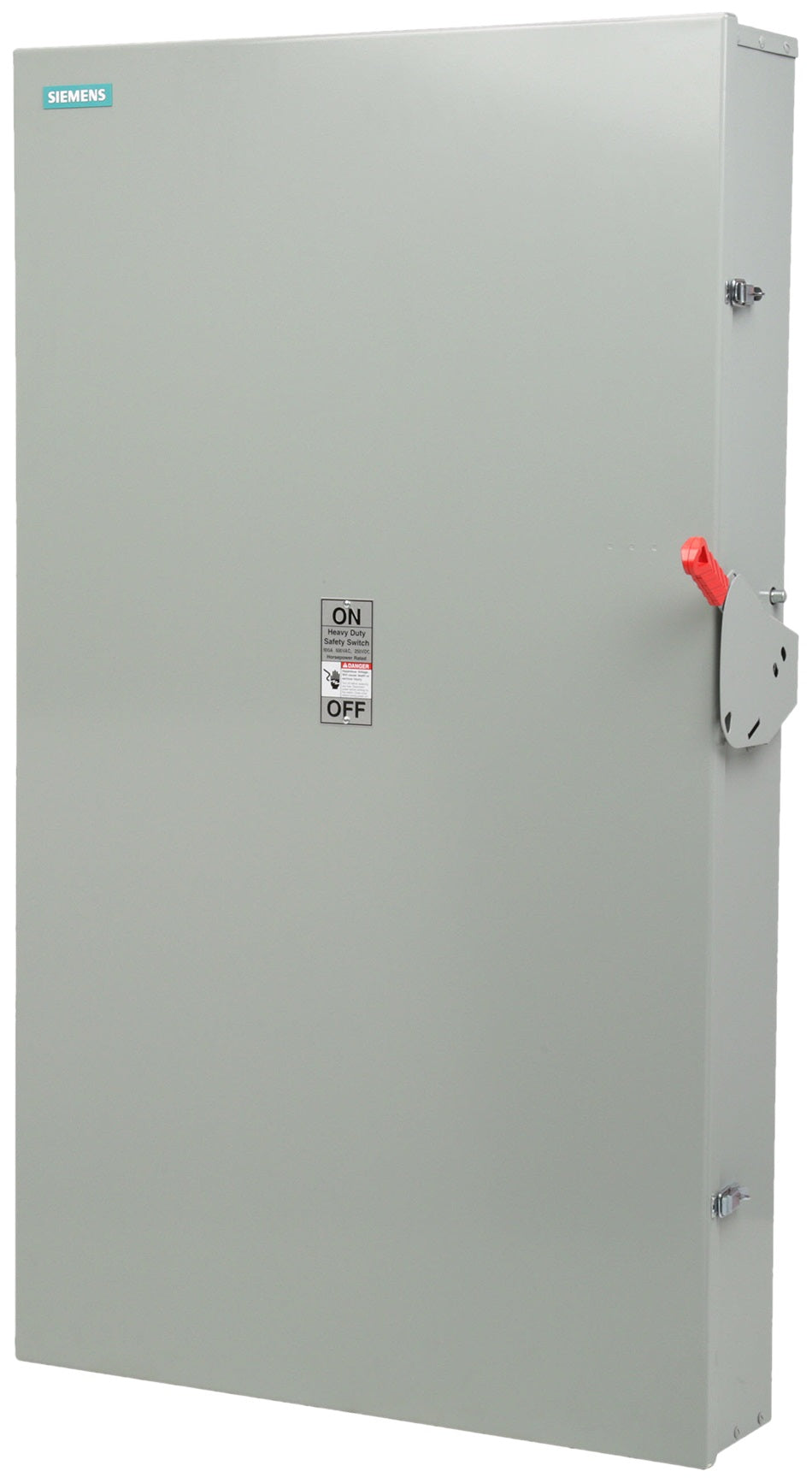

Siemens HF367N - Fusible Disconnect Switch 800A@600V (200kA AIC, NEMA 1)

Siemens HF367N is a fusible disconnect switch designed for high-current circuit protection in industrial power distribution systems. This NEMA 1-rated switch features a 600V voltage rating and 800A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The unit measures 42.913 x 74.803 x 11.811 inches (1090 x 1900 x 300 mm) and weighs 475 lb (215 kg), constructed with Class L fuse compatibility for three-phase applications. Compliant with North American electrical standards, this VBII Series switch is engineered for main feeder disconnects, motor control centers, and heavy industrial equipment requiring PGP frame compatibility.

Key Features & Specifications

• Type: Fusible disconnect switch, single configuration
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: 42.913 x 74.803 x 11.811 in (1090 x 1900 x 300 mm)
• Standards: NEMA 1 enclosure rating
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: L
• Compatible Frames: PGP
• Weight: 475 lb (215 kg)
• Country of Origin: United States

Product Identification

• UPC: 783643151147
• GTIN: 00783643151147
