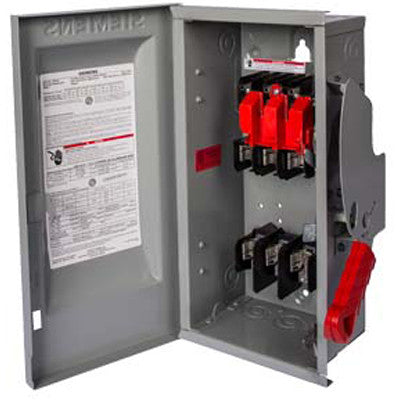

Siemens HF367J - Fusible Disconnect Switch 800A@600V (200kA AIC, NEMA 12)

Siemens HF367J is a fusible disconnect switch designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 800A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The switch has a compact NEMA 12-rated enclosure measuring 42.913 x 74.803 x 11.811 inches (1090 x 1900 x 300 mm) and weighs 465 lb (211 kg), constructed for durability in demanding environments. Compliant with industrial safety standards, this three-phase disconnect is compatible with PGP frames and features Class L fuse protection for three-wire systems. Typical applications include motor control centers, panelboards, and heavy machinery power distribution.

Key Features & Specifications

• Type: Fusible disconnect switch, NEMA 12 enclosure
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: 42.913 x 74.803 x 11.811 in (1090 x 1900 x 300 mm)
• Standards: NEMA 12, Class L fuse compatible
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@600V
• Wire: 3
• Compatible Frames: PGP
• Weight: 465 lb (211 kg)
• Country of Origin: United States

Product Identification

• UPC: 783643151888
• GTIN: 00783643151888
