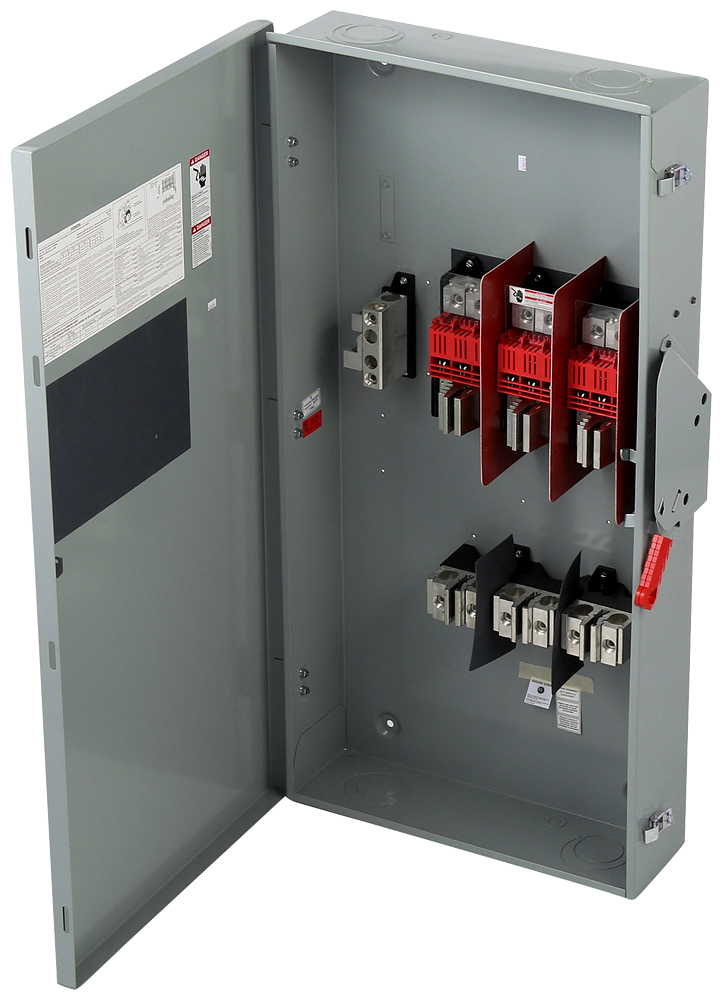

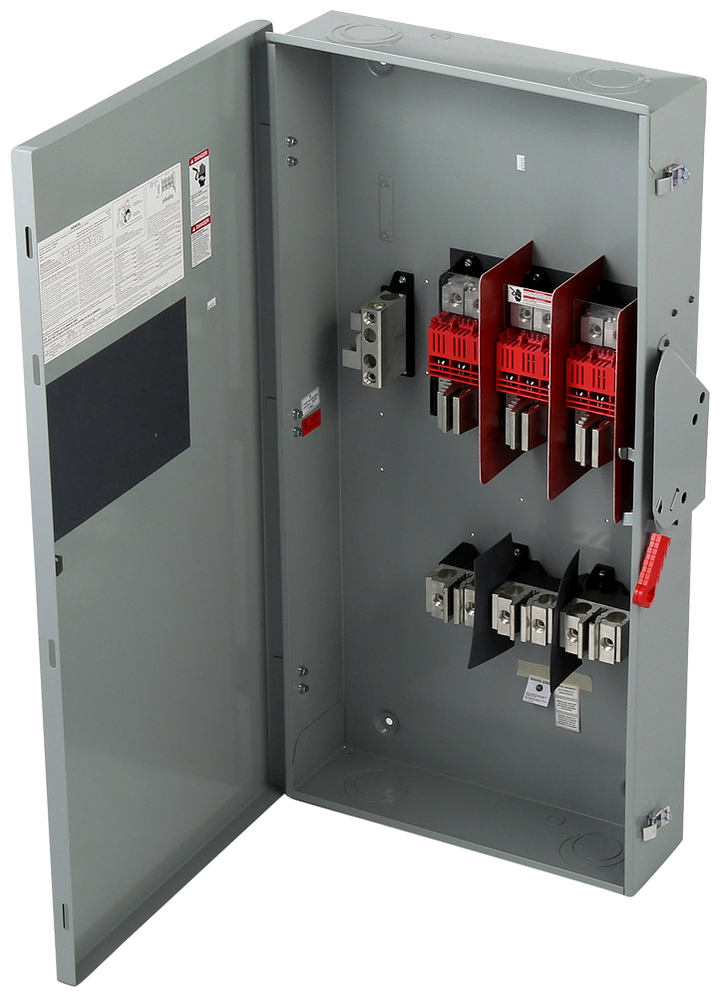

Siemens HF366NA is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600A at 600V AC and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 1 enclosure measuring 6.693" x 22.047" x 45.276" and weighing 99.803 lb, and it operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). As part of the VBII Series, this UL-listed device is engineered for compliance with industrial safety standards, making it suitable for service entrance, motor control centers, and main feeder disconnects where a fusible, three-pole configuration is required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 6.693" W x 22.047" H x 45.276" D (170mm x 560mm x 1150mm)
  • Standards: UL Listed
  • Applications: Main Feeder Disconnect, Motor Control Centers, Service Entrance
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 99.803 lb
  • Phase: 3
  • Amperage: 600A
  • AIC rating: 200kA @ 600V
  • Poles: 3
  • Nema Rating: NEMA 1
  • Fuse Class: R
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872632
  • GTIN: 00887621872632
