Siemens HF366A - Fusible Disconnect Switch 600A 600V AC

Siemens
Price
Save $18,164.10
/
Title
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

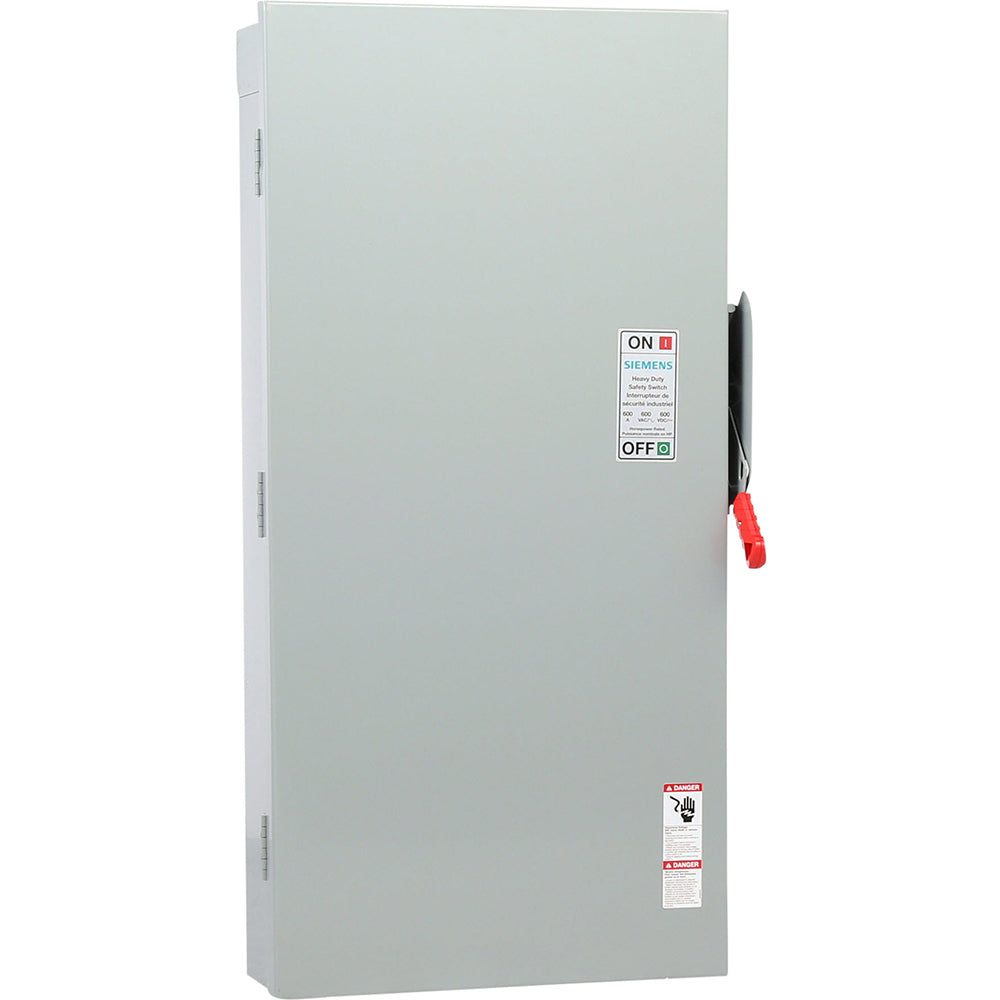

Siemens HF366A is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600A at 600V AC with an interrupting capacity of 200kA and features a robust, three-pole fusible configuration housed in a NEMA 1 enclosure measuring 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 inches) and weighing 97.982 lb. The switch is UL listed and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F), ensuring compliance with industrial safety standards for applications such as motor control centers and main service disconnects where HED compatible frames are utilized.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Configuration: Single, 3-Pole
  • Dimensions: 170 x 560 x 1150 mm (6.693 x 22.047 x 45.276 inches)
  • Weight: 97.982 lb
  • Standards: UL listed
  • Applications: Industrial power distribution, motor control centers, main service disconnects
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 1
  • Fuse Class: R
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Compatible Frames: HED
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872595
  • GTIN: 00887621872595
