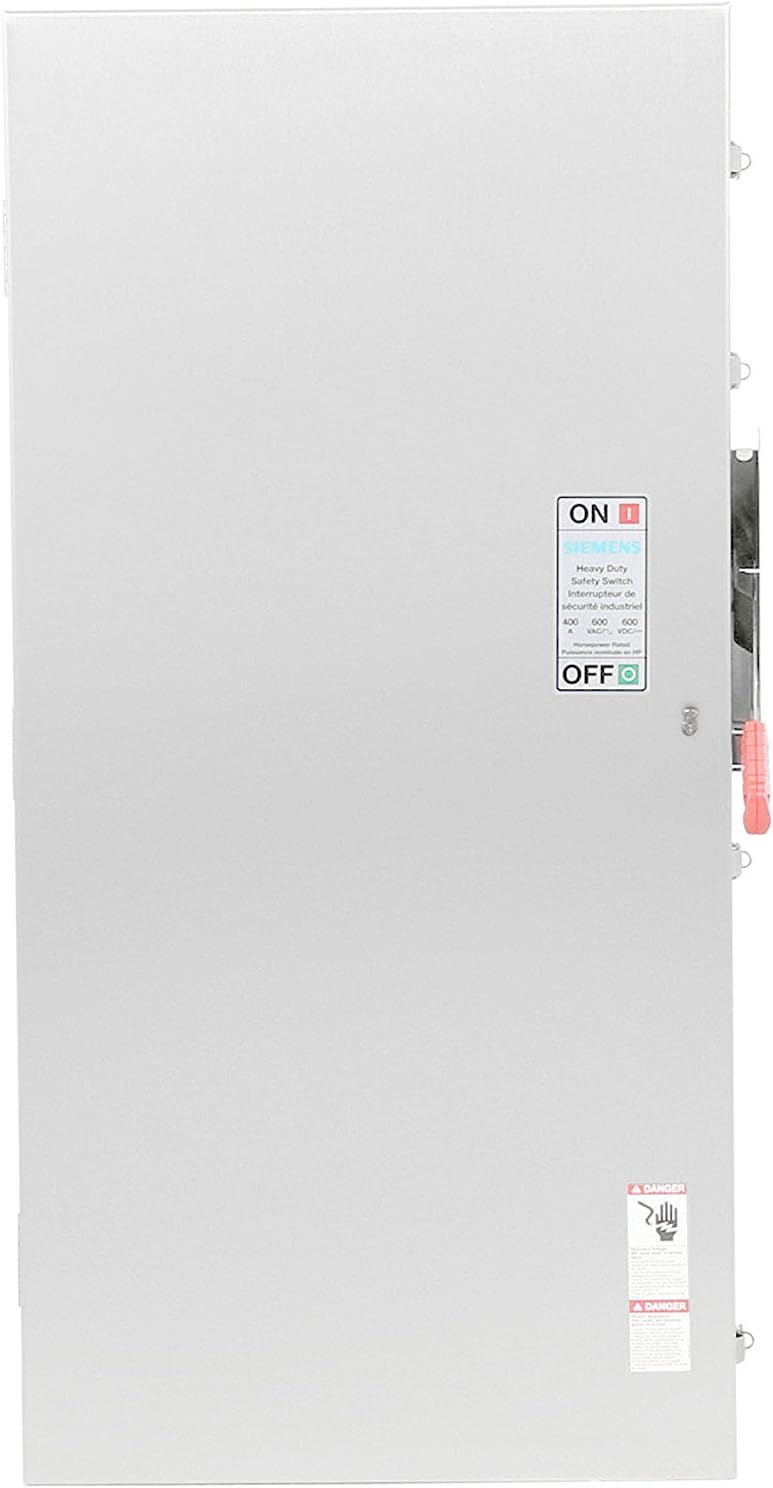

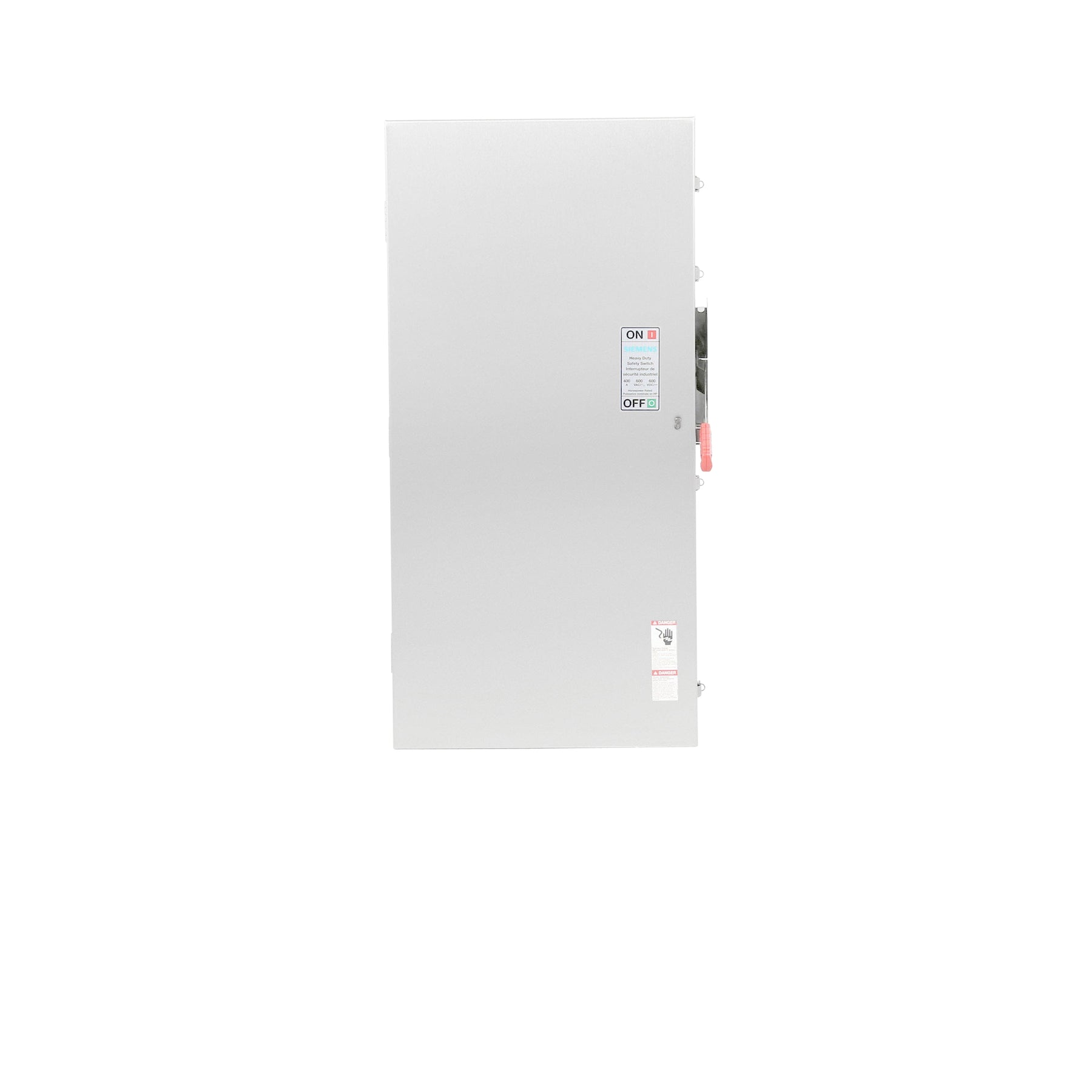

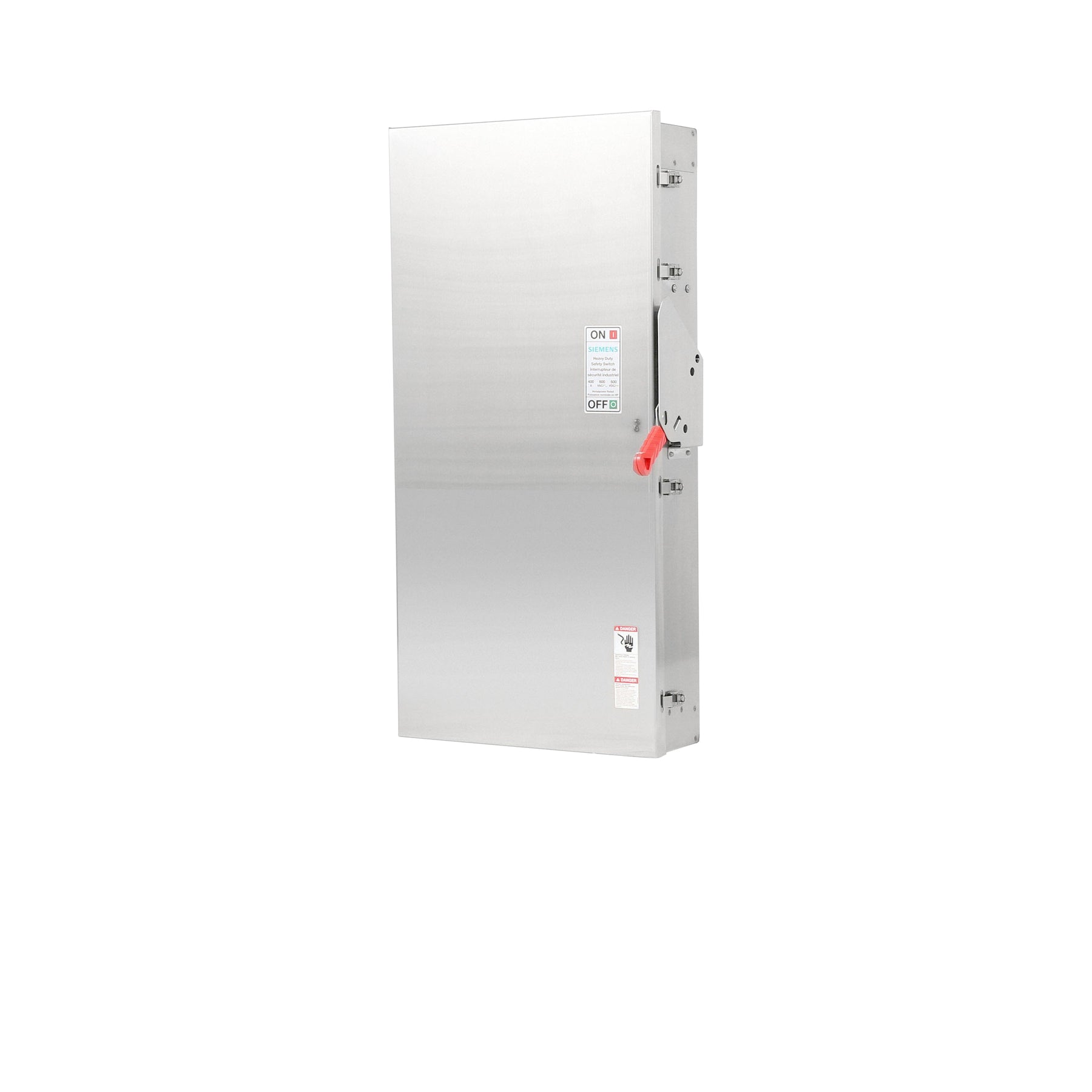

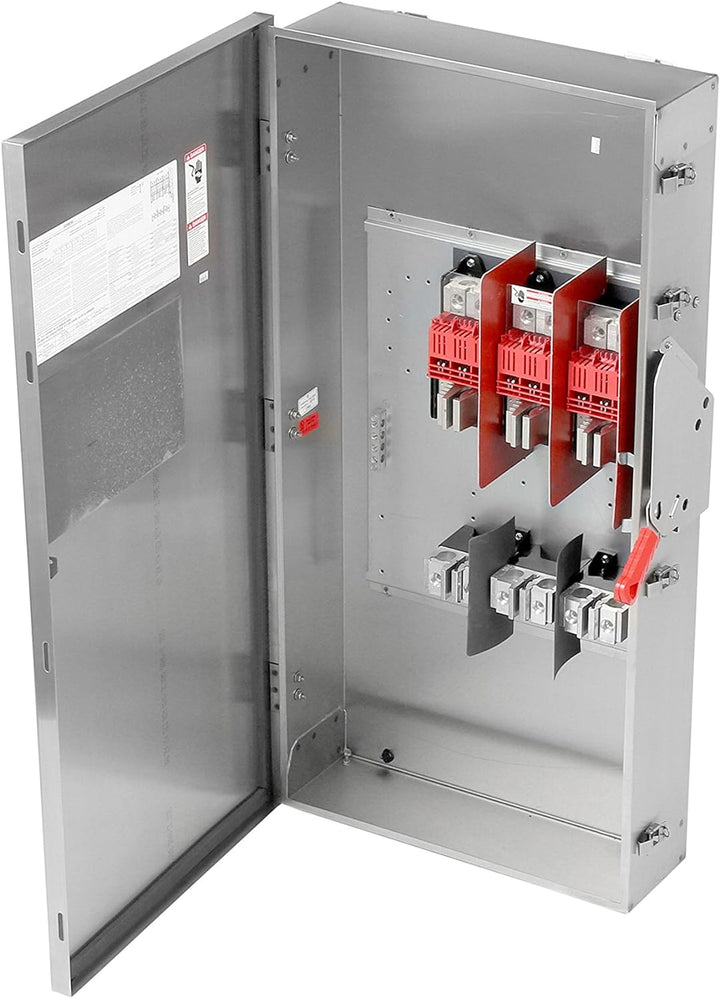

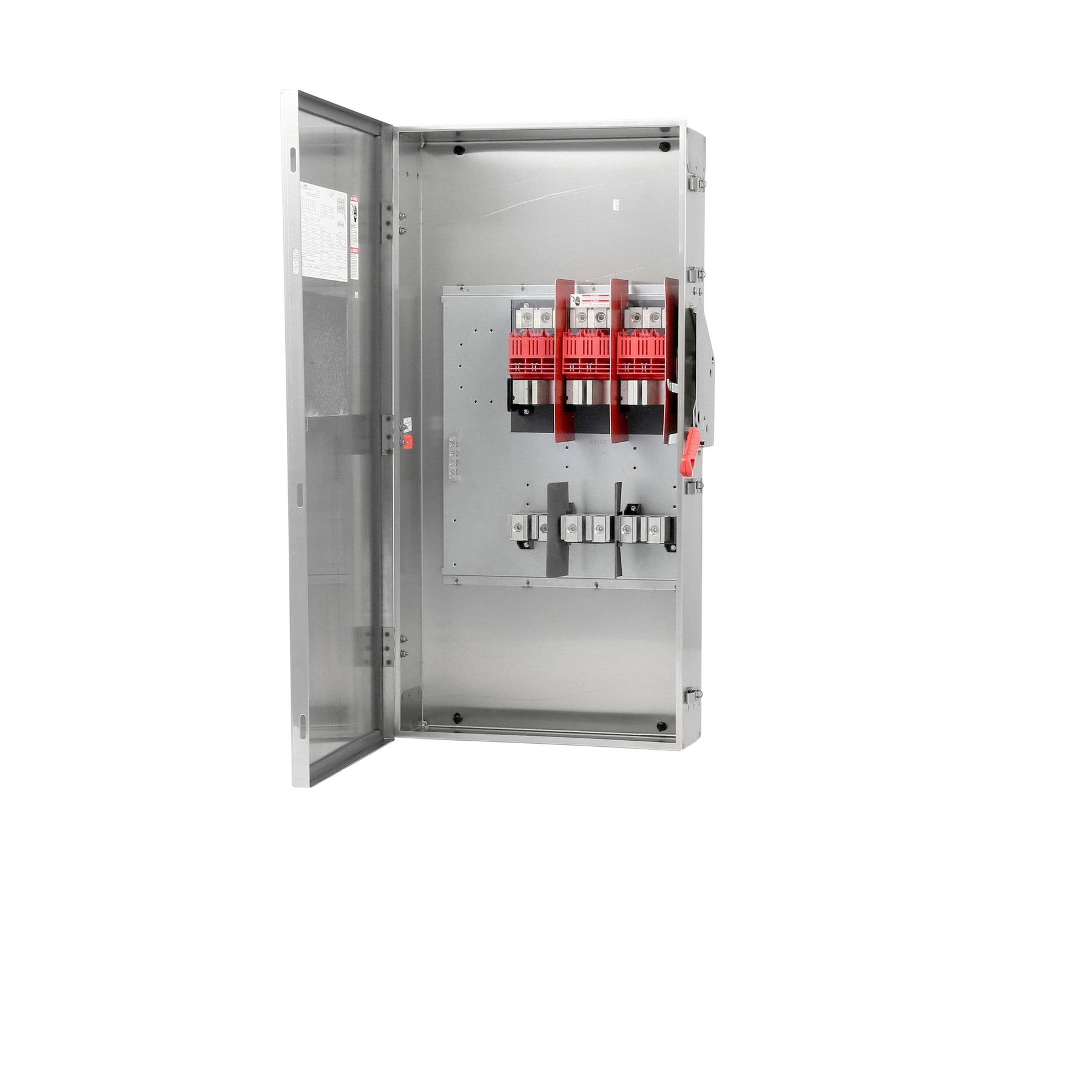

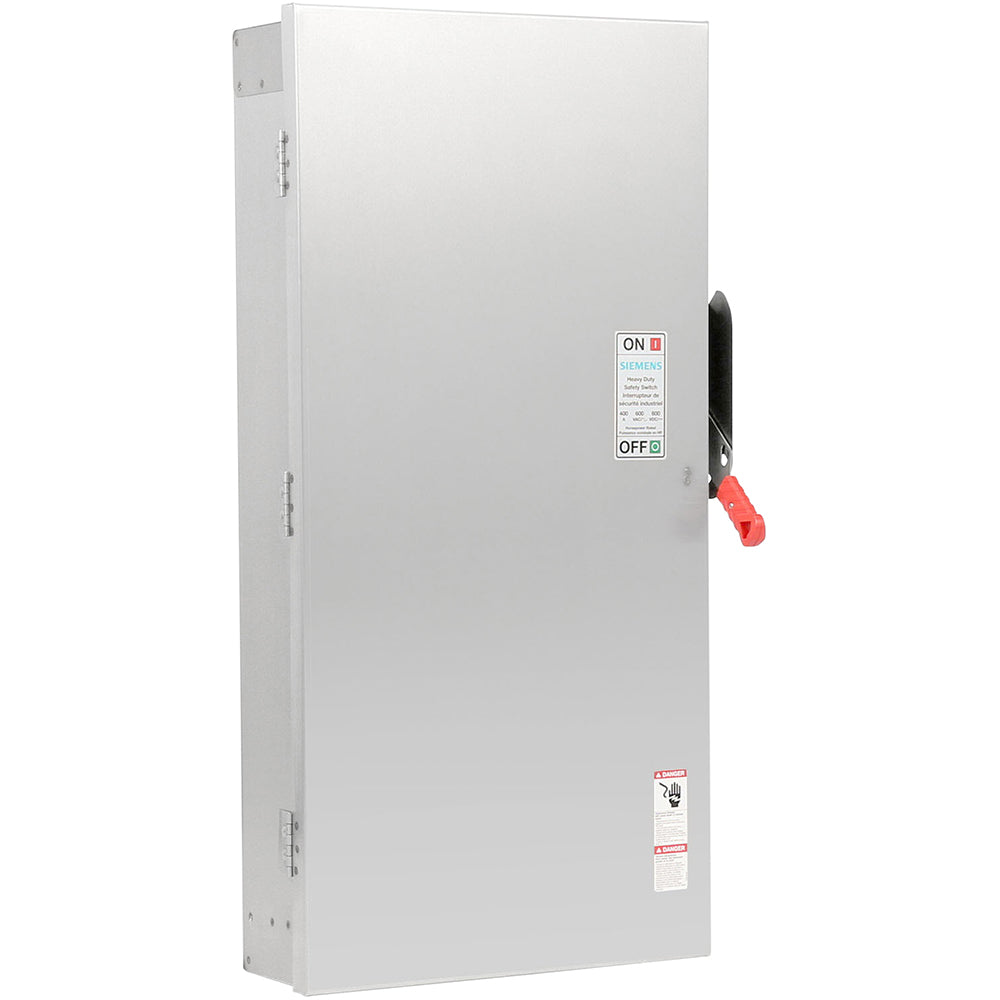

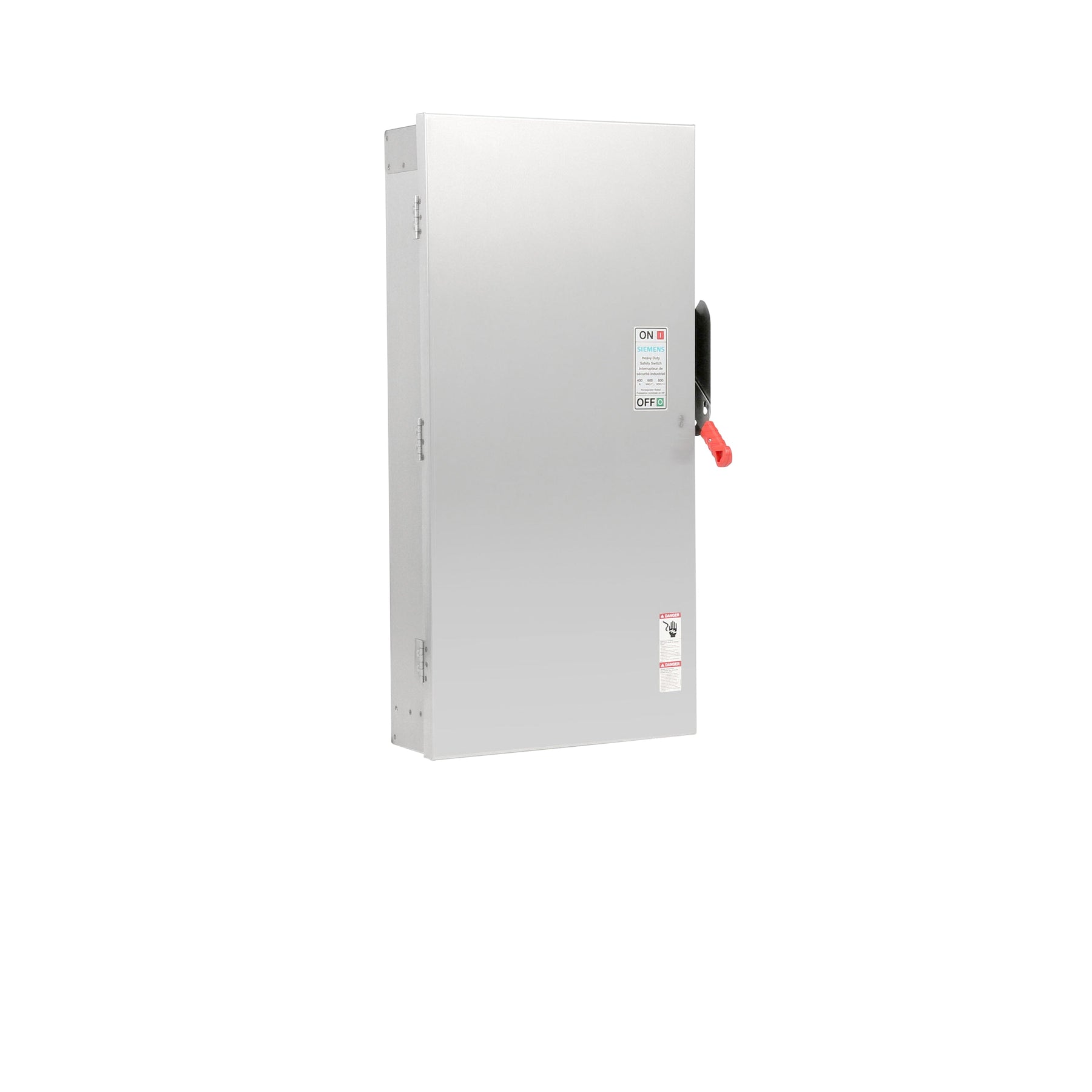

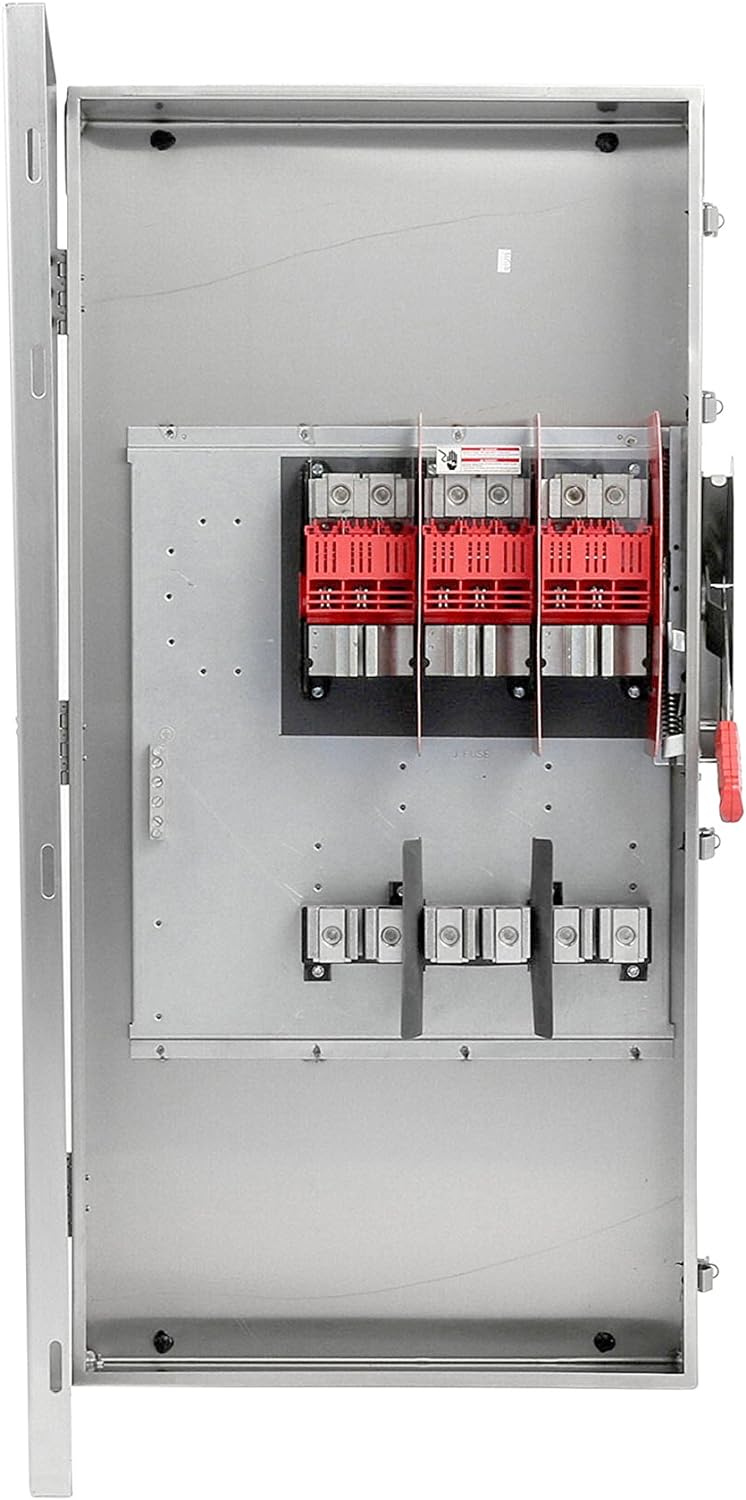

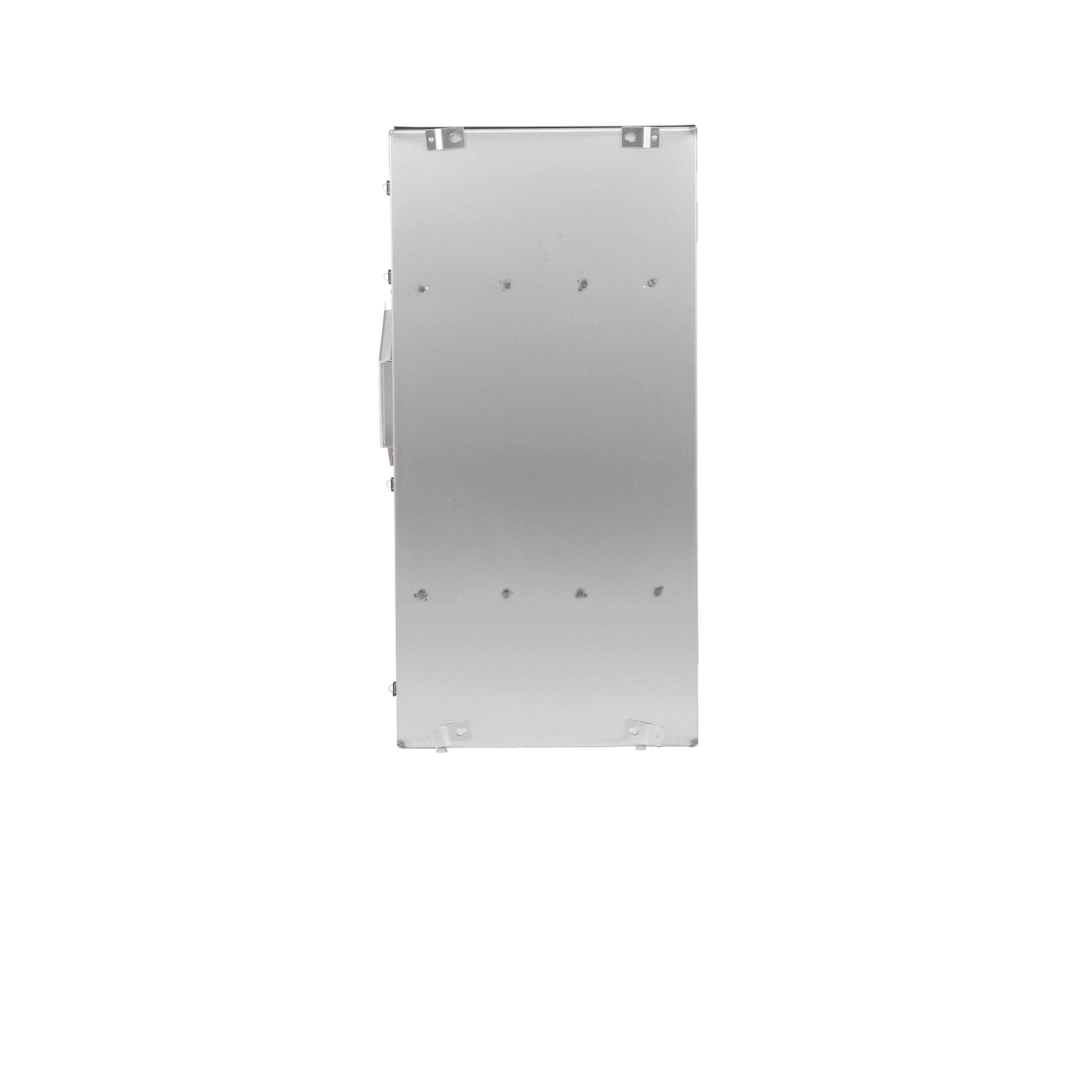

Siemens HF365SA - Fusible Disconnect Switch, 400A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HF365SA is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in demanding three-phase industrial power distribution systems. It is rated for 600V AC operation with a 400A current capacity and features a robust 3-pole, single-configuration design housed within a NEMA 4X enclosure for superior environmental protection. Constructed as part of the VBII Series, this switch offers a high interrupting capacity of 200kA at 600V and is UL listed for safety compliance, operating reliably within a temperature range of -25°C to 70°C. Its industrial-grade construction makes it suitable for applications requiring a secure means to de-energize equipment for maintenance and to protect circuits from fault currents.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 7.087" x 22.047" x 45.276" (180mm x 560mm x 1150mm)
  • Weight: 99.803 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, main disconnects
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 4X
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872731
  • GTIN: 00887621872731
