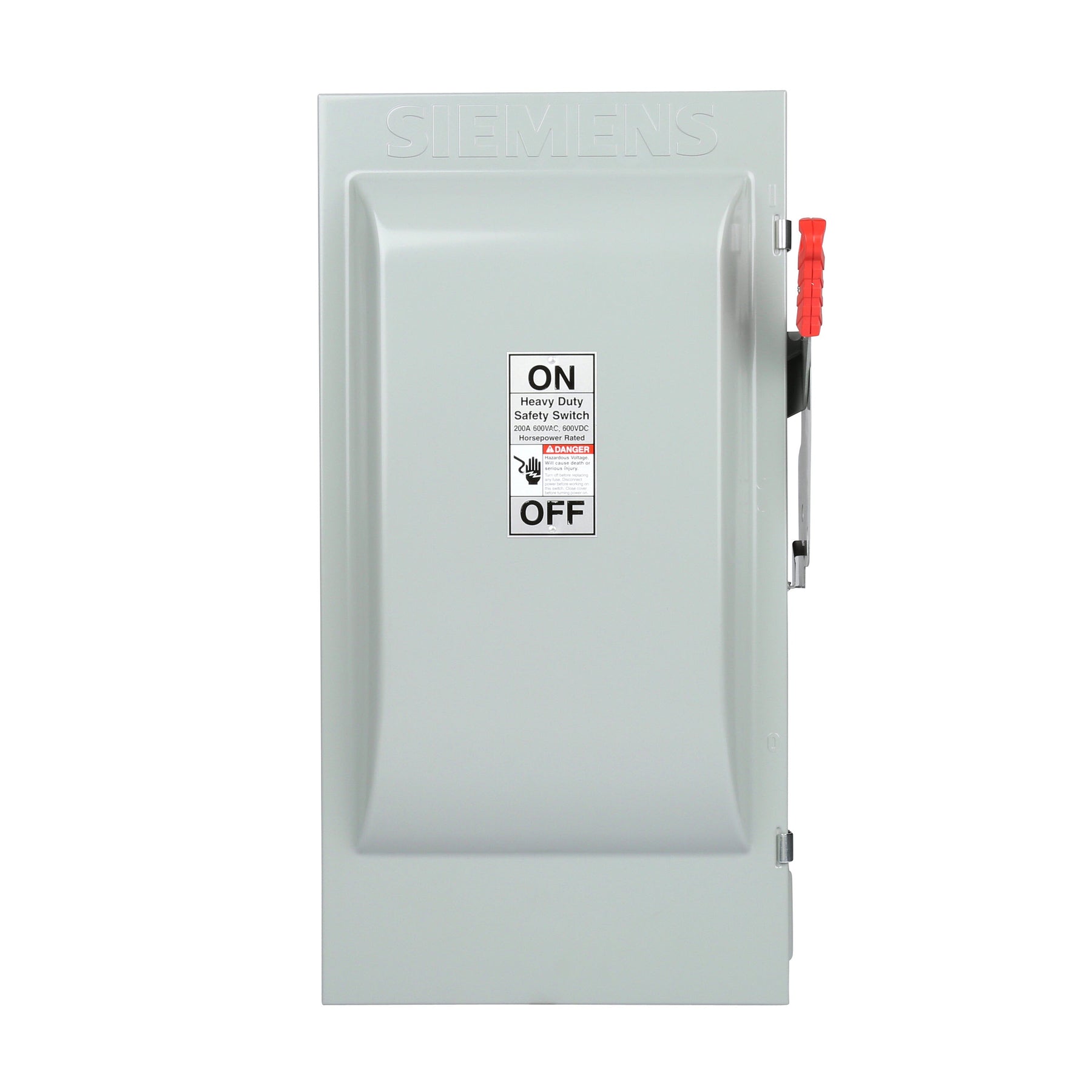

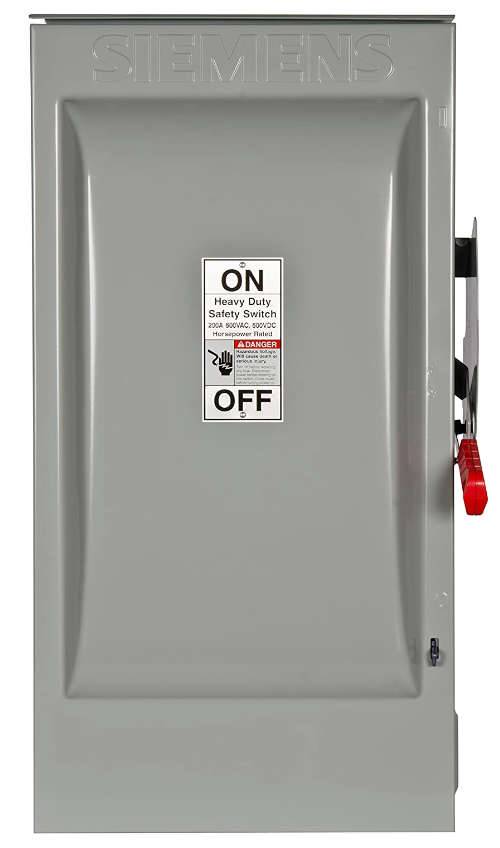

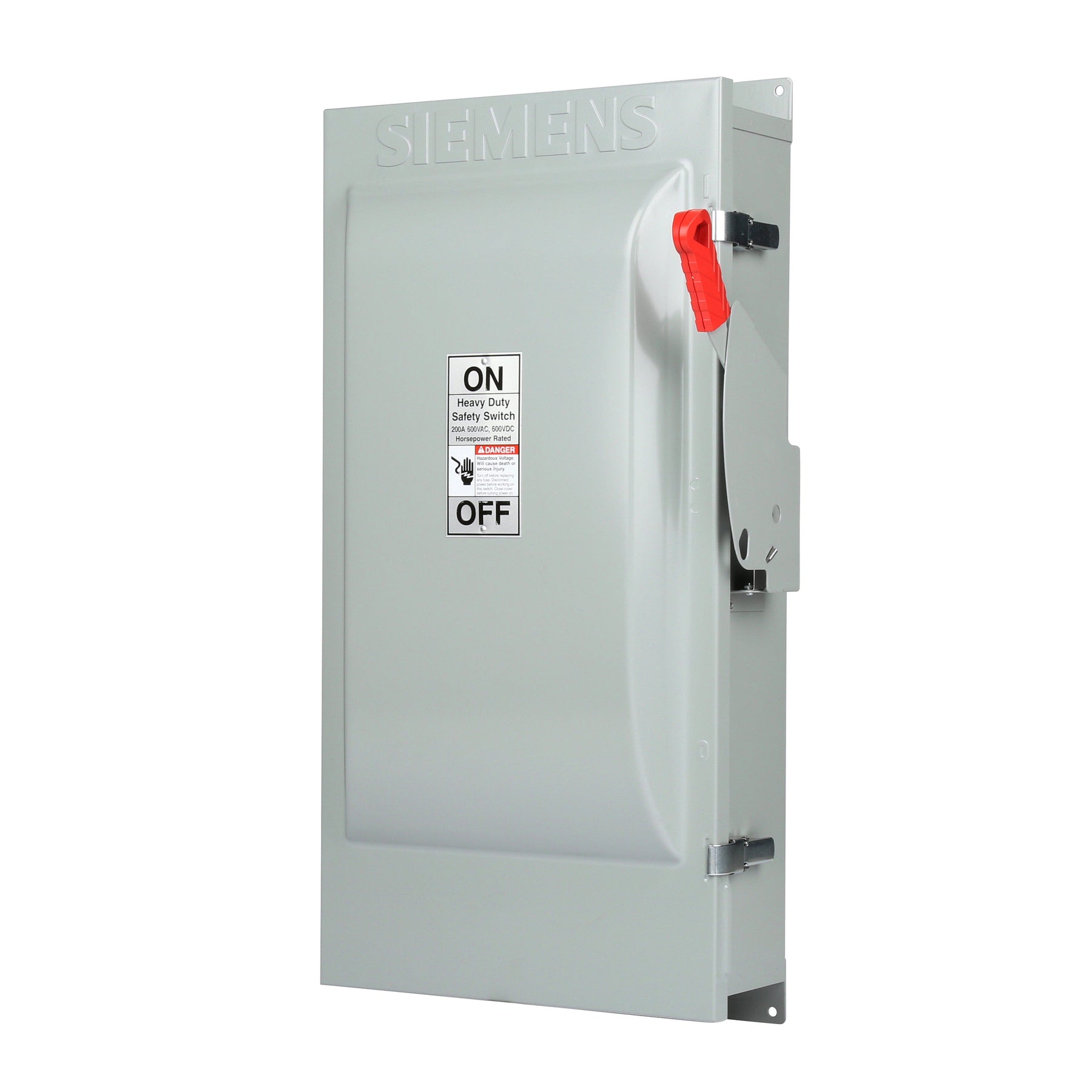

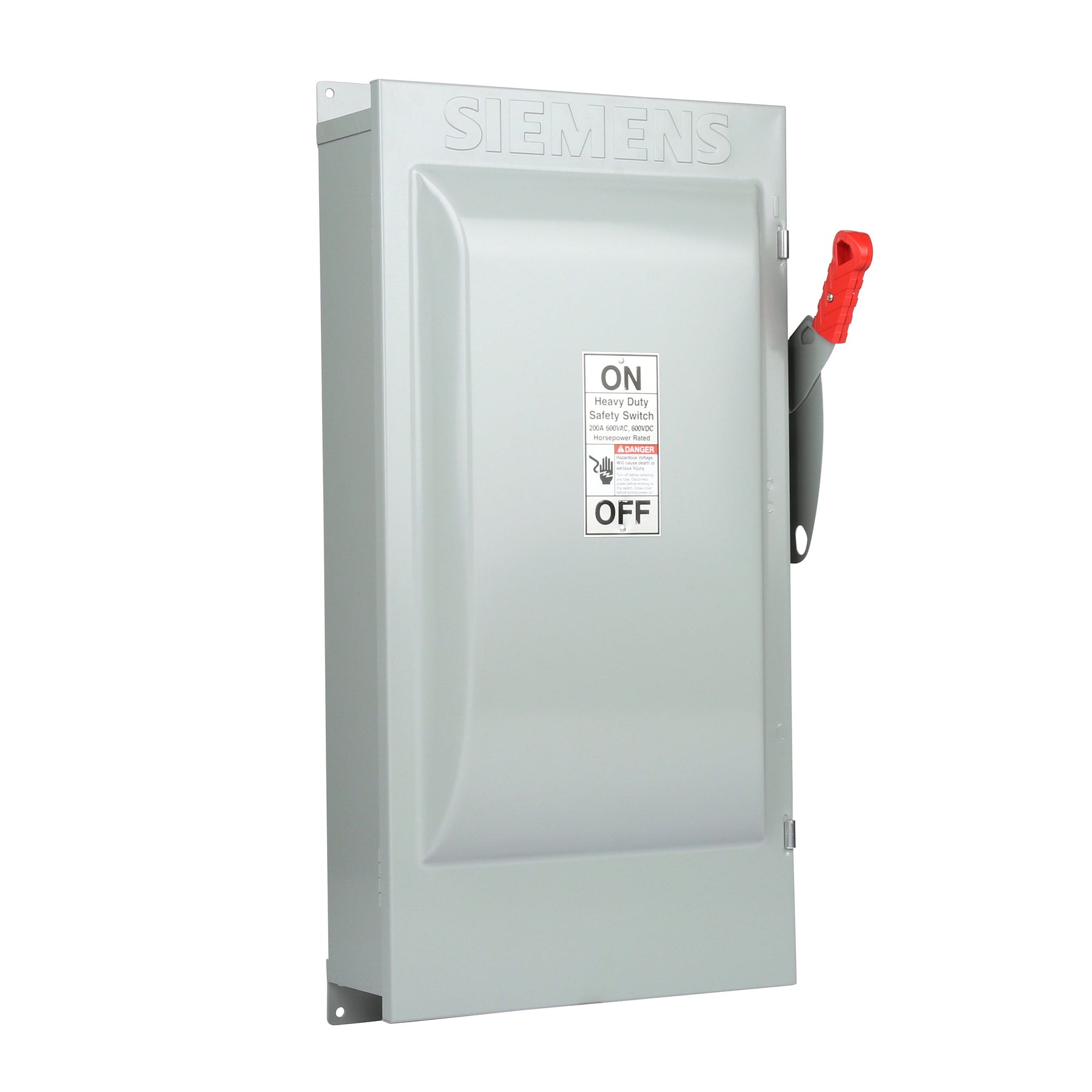

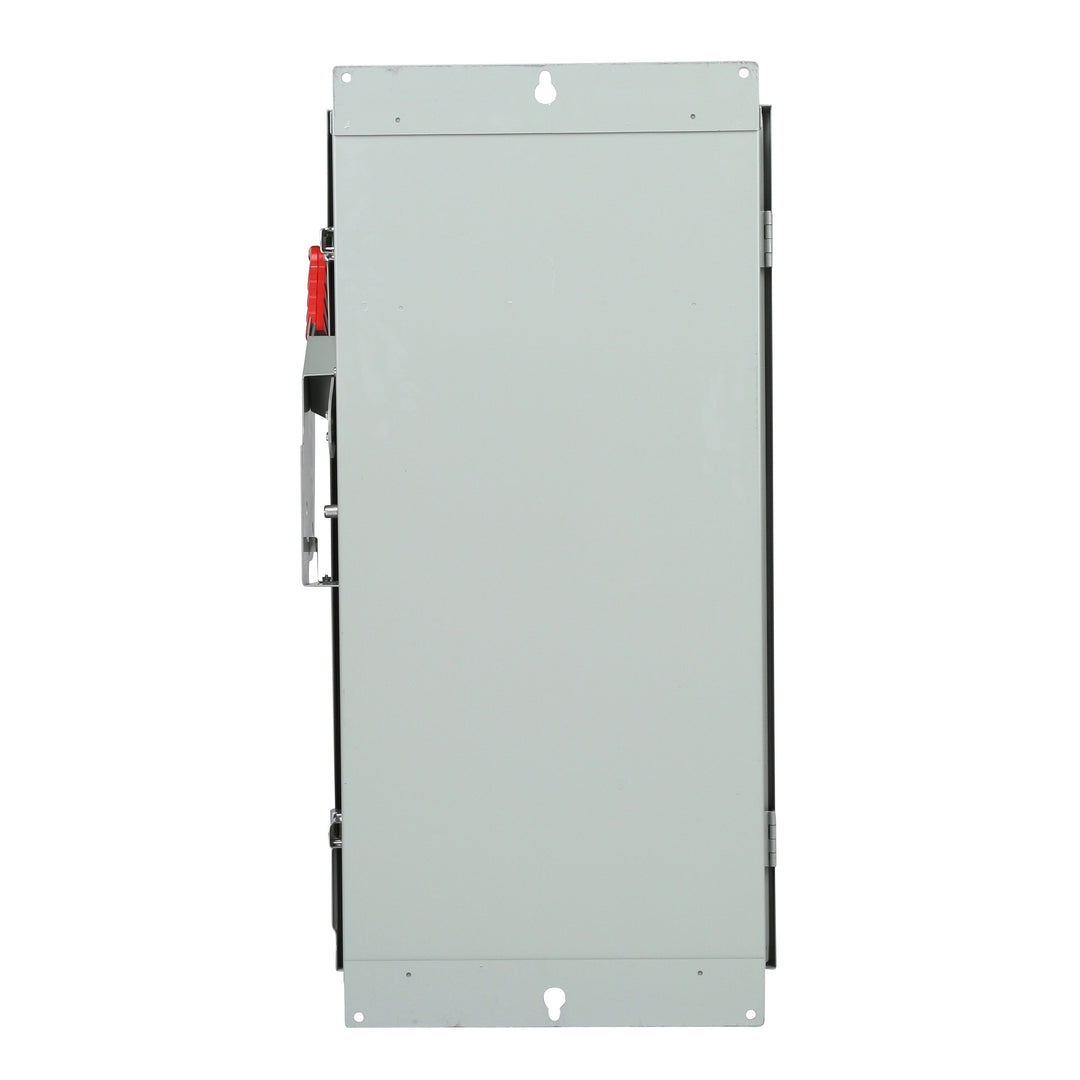

Siemens HF364J is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 200A current rating, housed within a robust NEMA 12 enclosure measuring 34.646 x 20.472 x 9.449 inches and weighing 48.502 lb. The switch is UL listed, operates within a temperature range of -25°C to 70°C, and is engineered for a high interrupting capacity of 200kA at 600V. Typical applications include integration into motor control centers and panelboards requiring a reliable disconnect means with Class R fuse protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 34.646 x 20.472 x 9.449 inch
  • Standards: UL listed, NEMA 12 enclosure rating
  • Applications: Industrial power distribution, motor control centers, panelboard disconnects
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 200kA@600V
  • Poles: 3
  • Fuse Class: R
  • Compatible Frames: PGP
  • Weight: 48.502 lb


Product Identification
  • UPC: 783643151840
  • GTIN: 00783643151840
