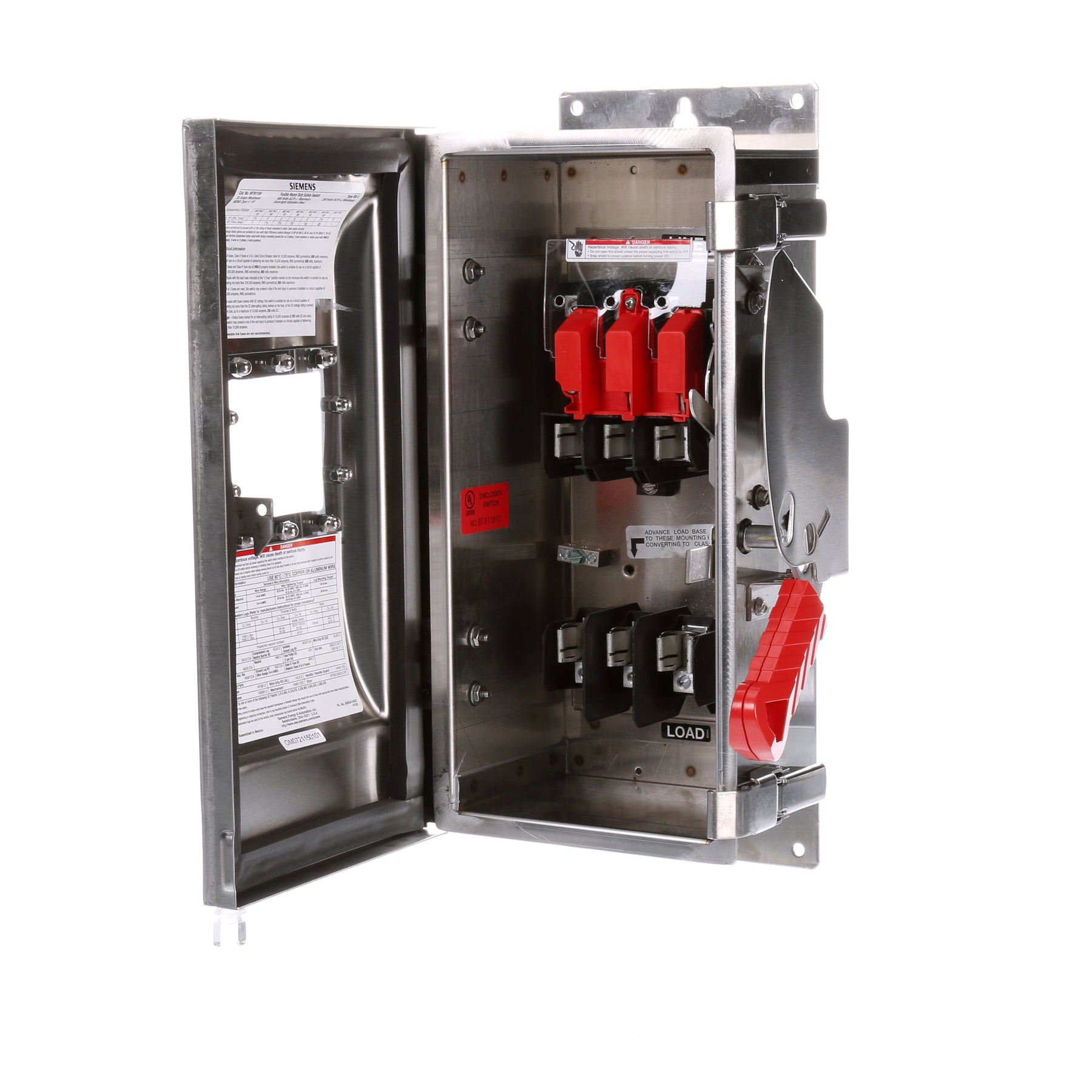

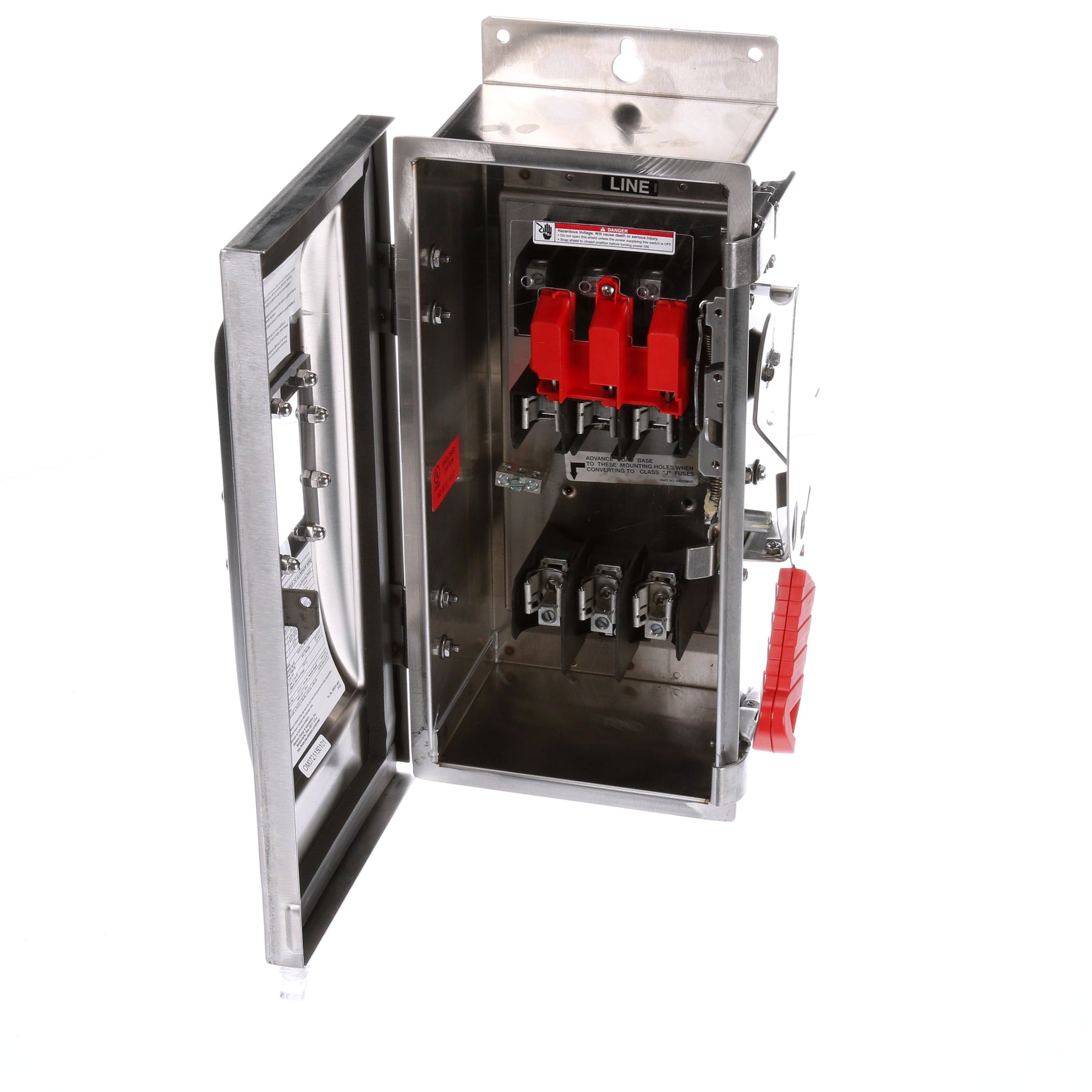

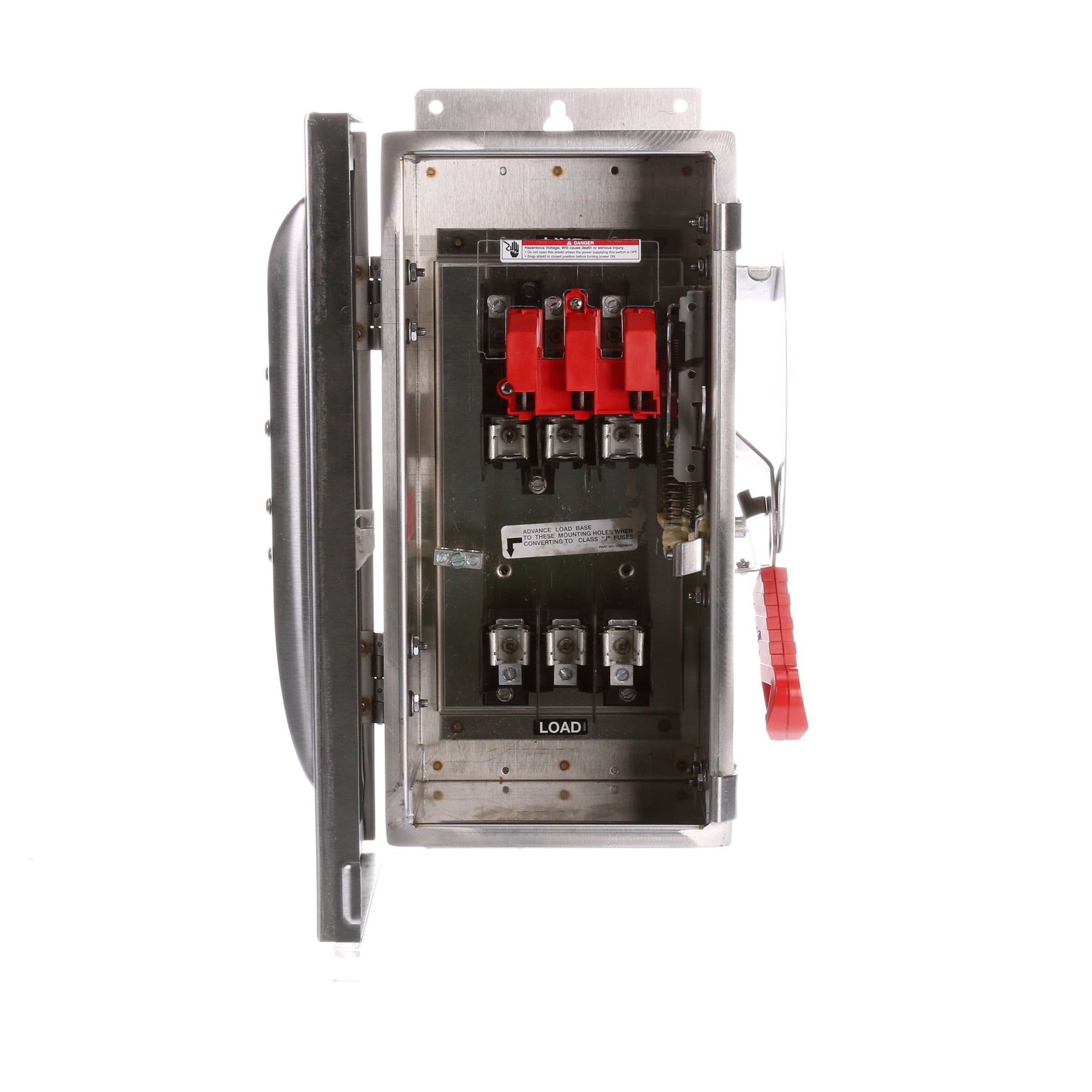

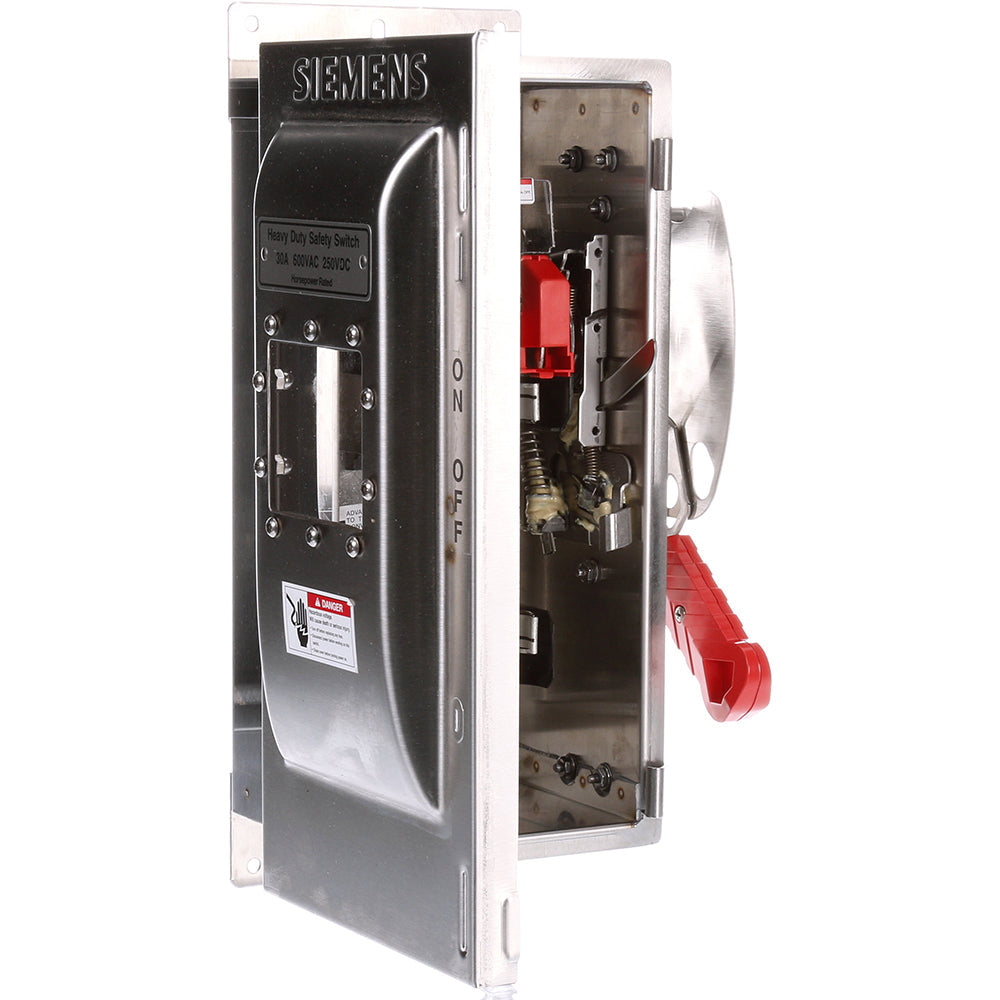

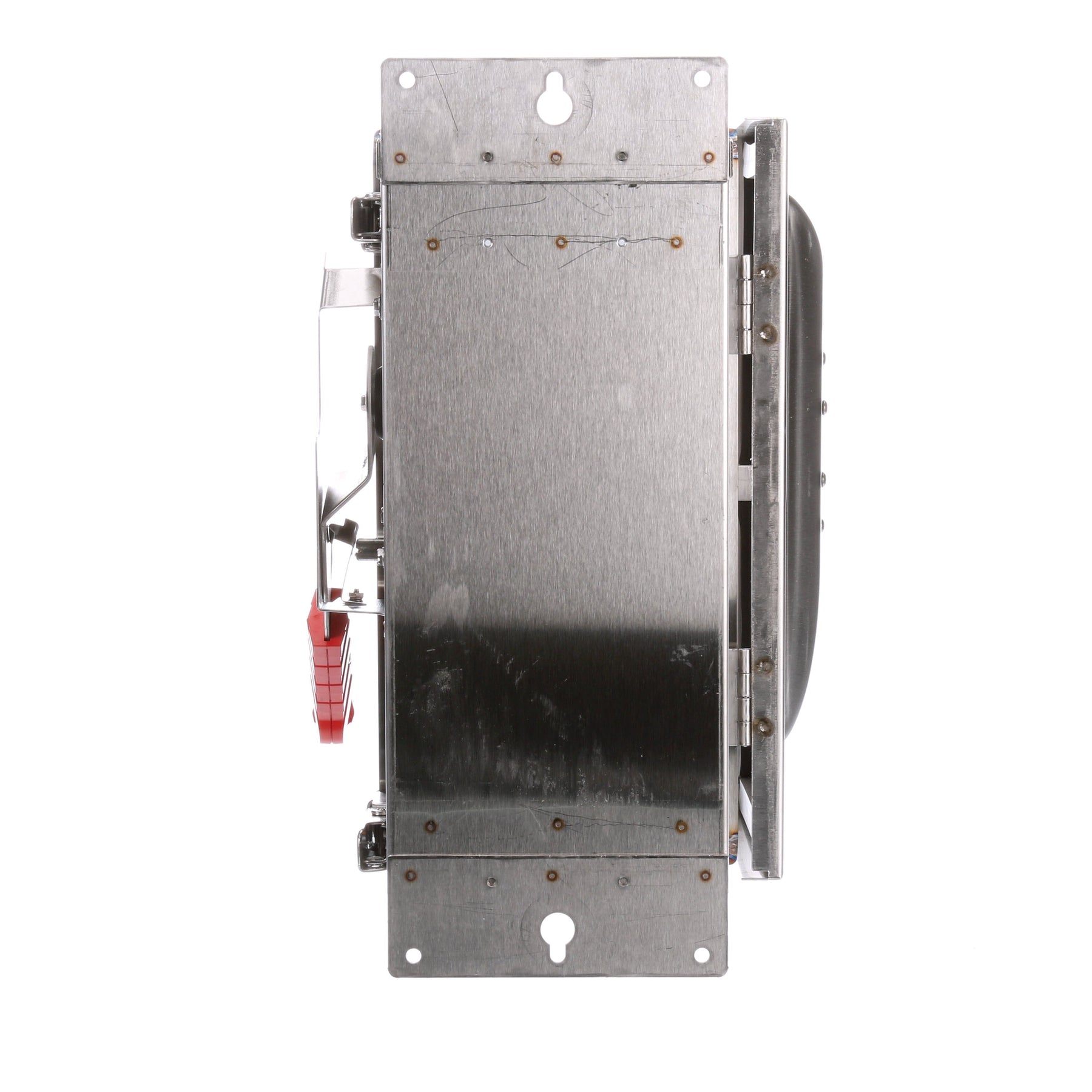

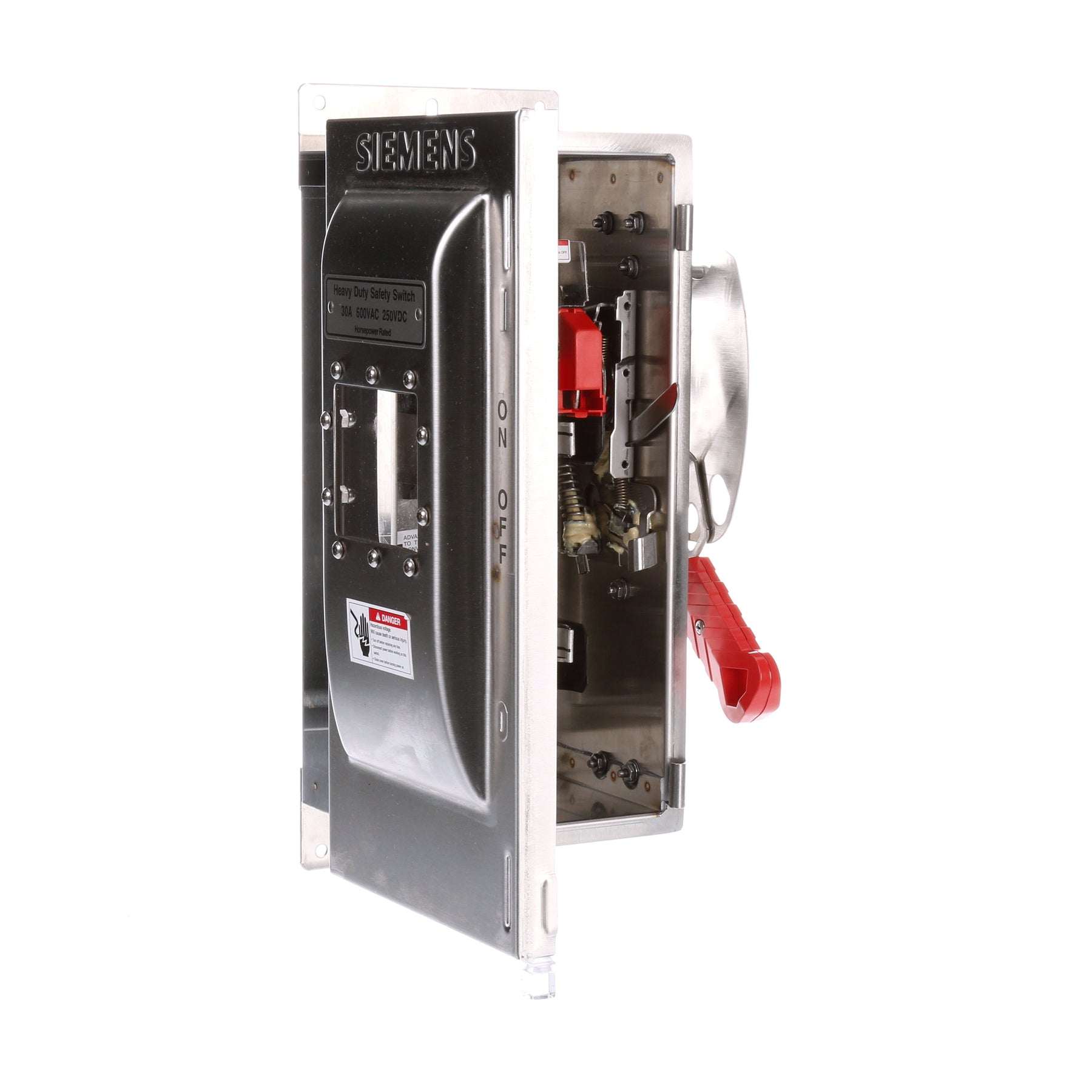

Siemens HF361SW is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC operation with a 30A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 4X rated enclosure, measures 10.63 x 7.874 x 18.898 inches, weighs 17.483 lb, and operates reliably across a temperature range of -25°C to 70°C. It is UL listed for safety compliance and is compatible with Siemens PAF frames, making it suitable for applications in motor control centers, industrial machinery, and panelboards where a fusible disconnect is required.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF Type
Voltage Rating: 600V AC
Current Rating: 30A
Configuration: Single
Poles: 3
Phase: 3
AIC Rating: 200kA @ 600V
NEMA Rating: NEMA 4X
Temp Rating: -25°C to 70°C
Dimensions: 10.63 x 7.874 x 18.898 inches
Weight: 17.483 lb
Standards: UL Listed
Compatible Frames: PAF
Applications: Industrial power distribution, motor control, panelboards
