Siemens HF361SS - Fusible Disconnect Switch, 30A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

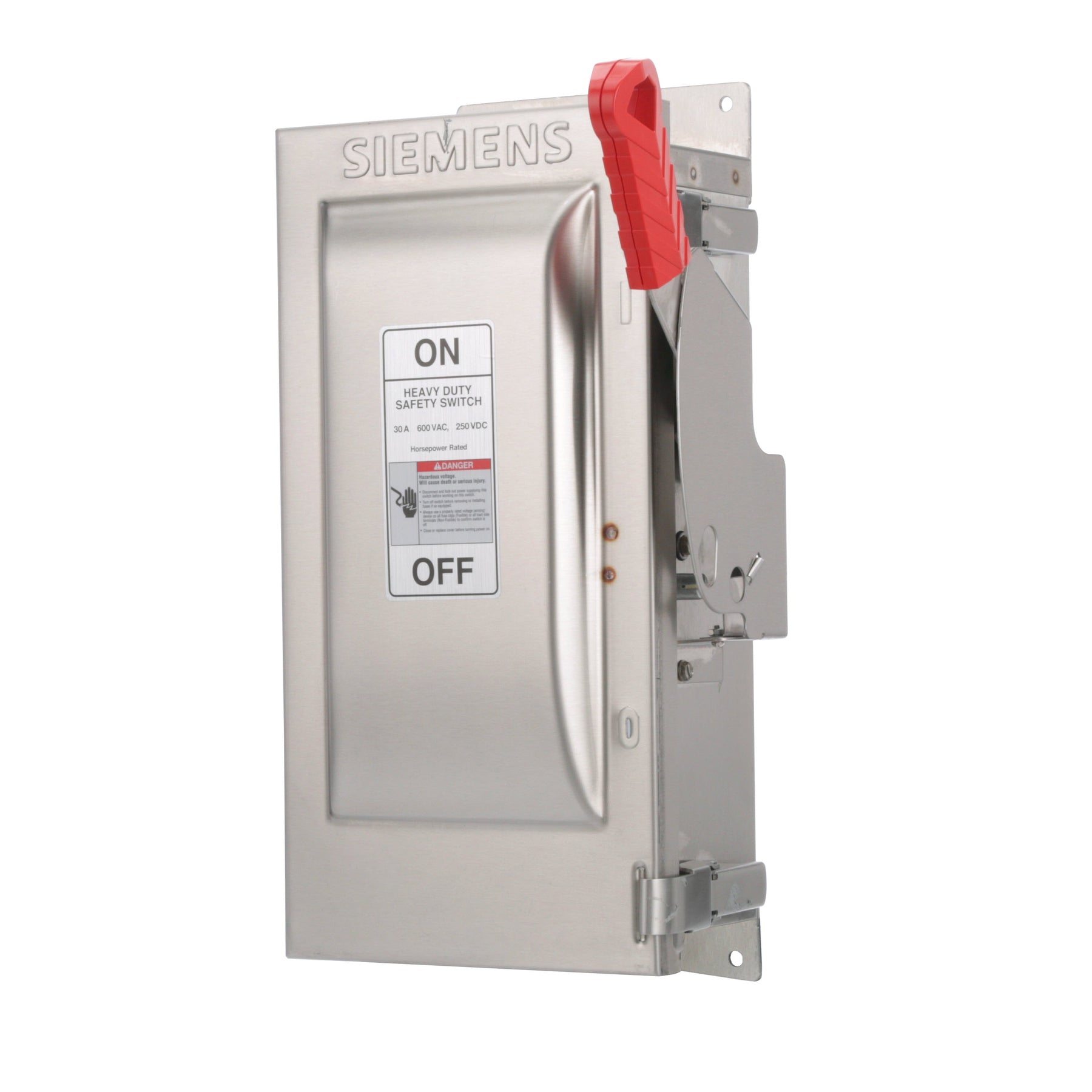

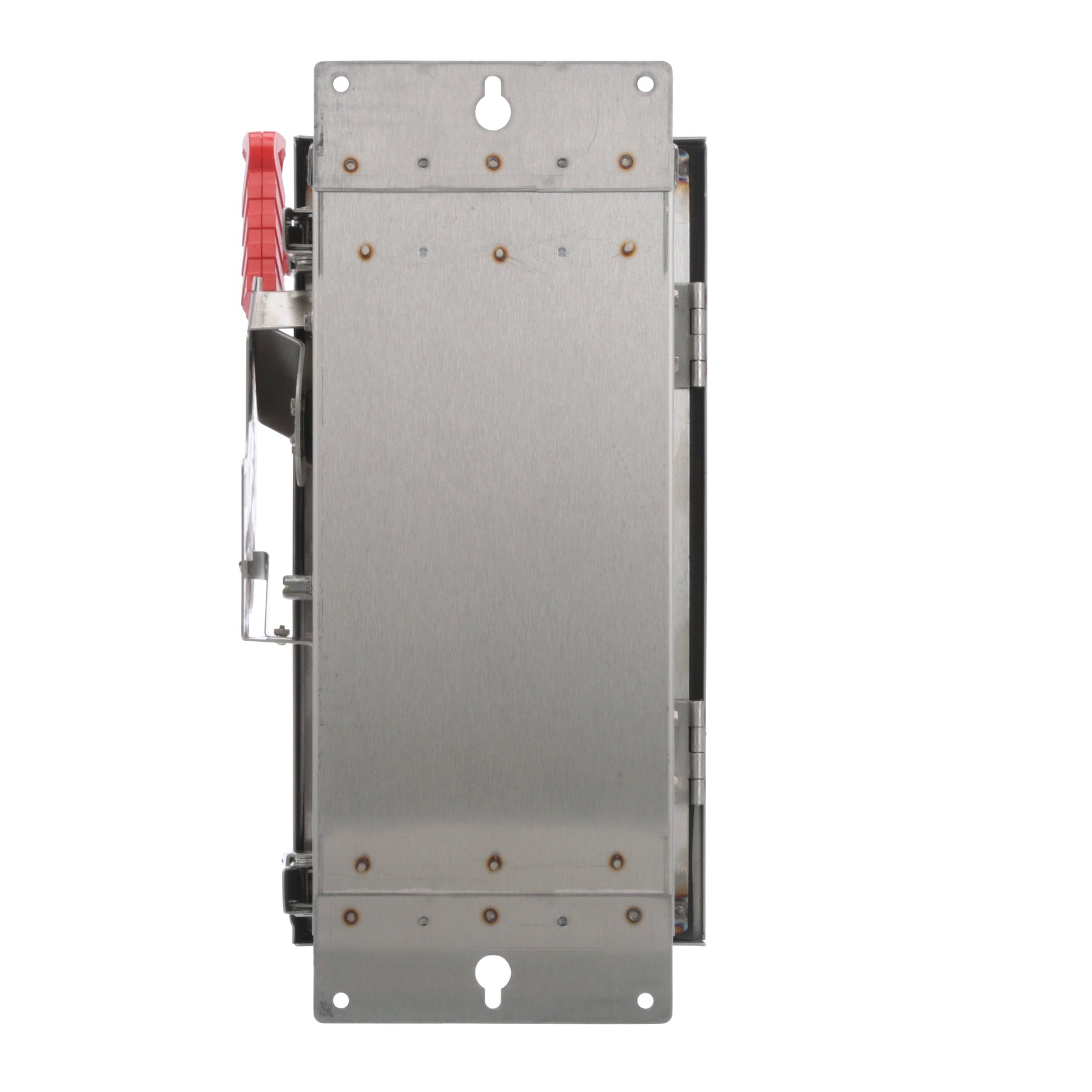

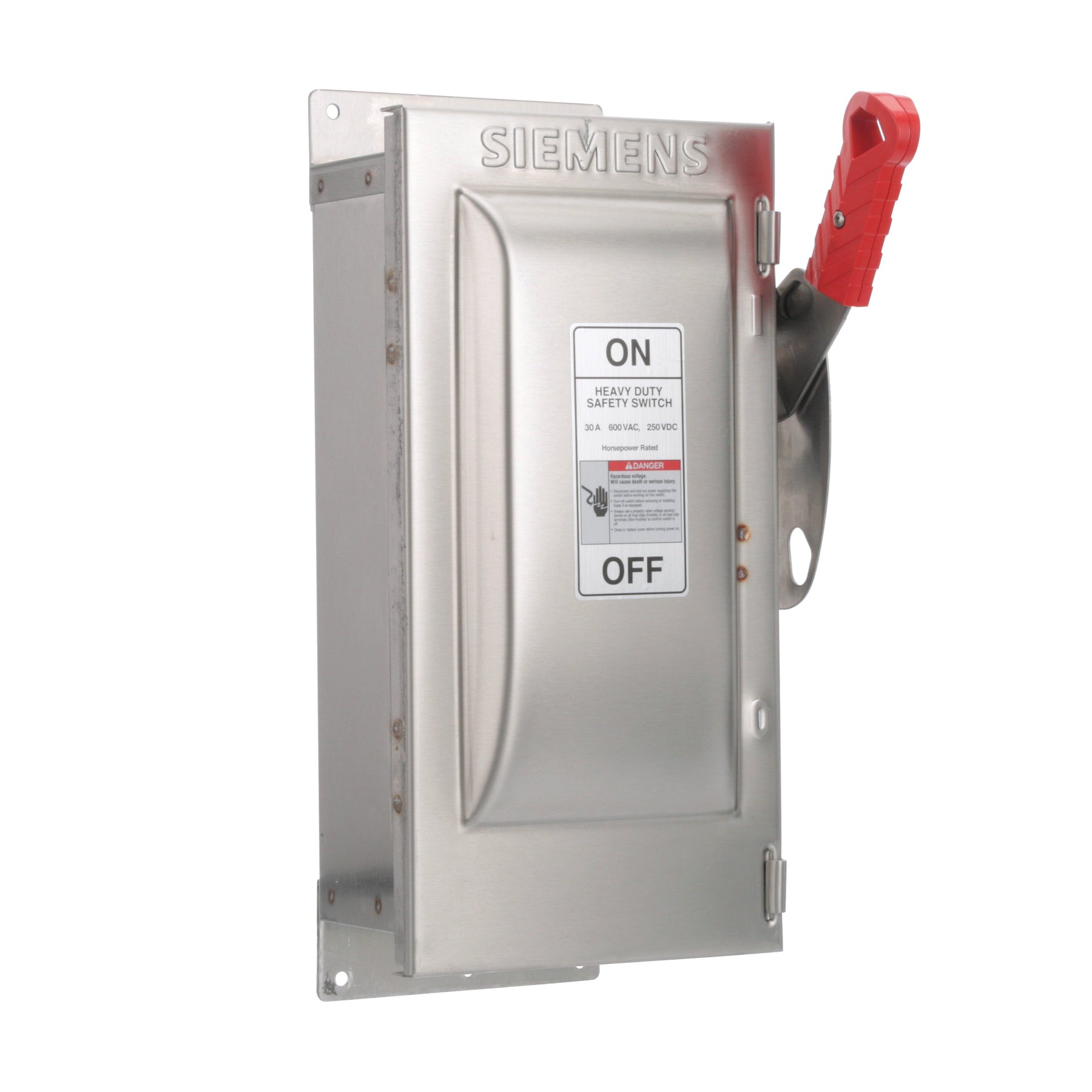

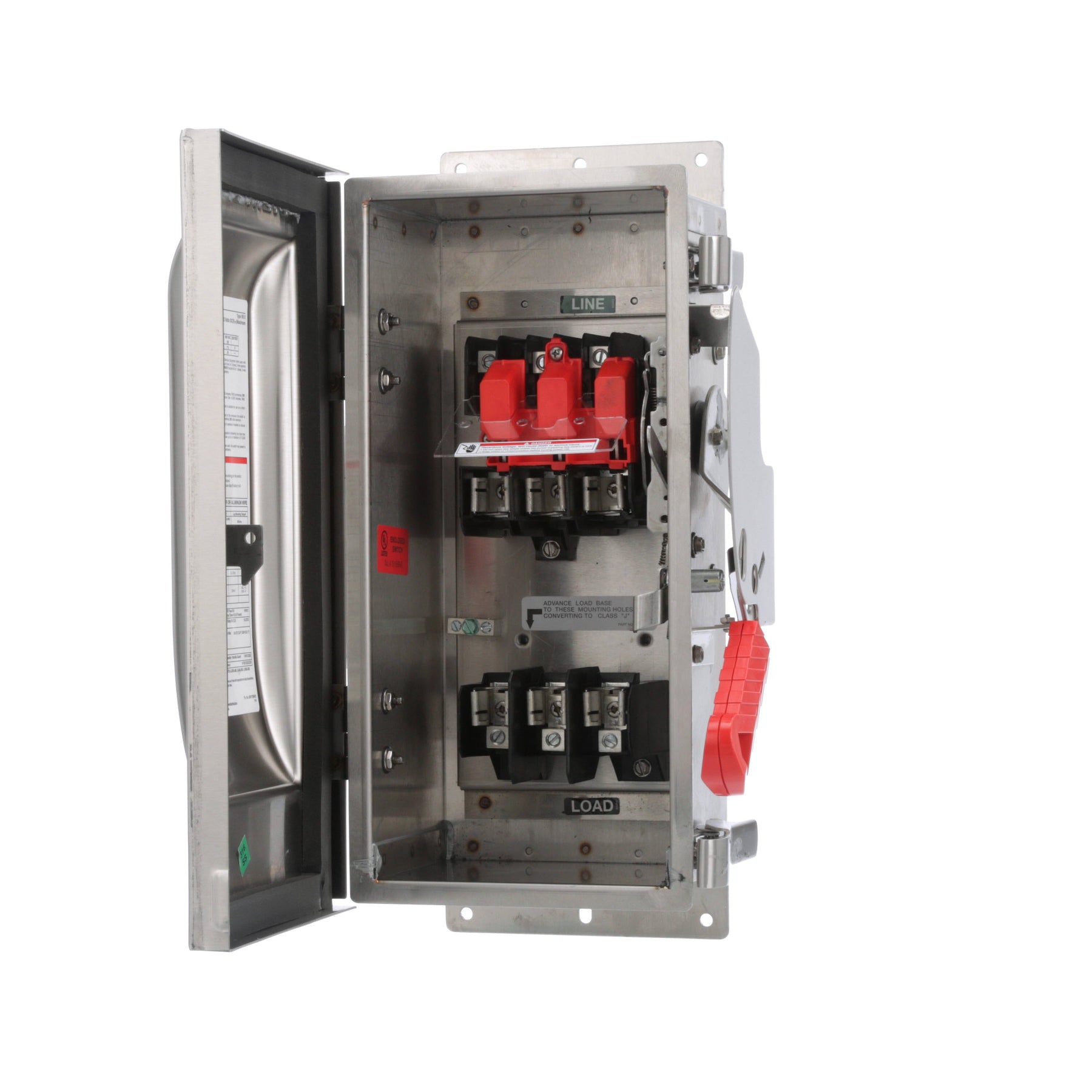

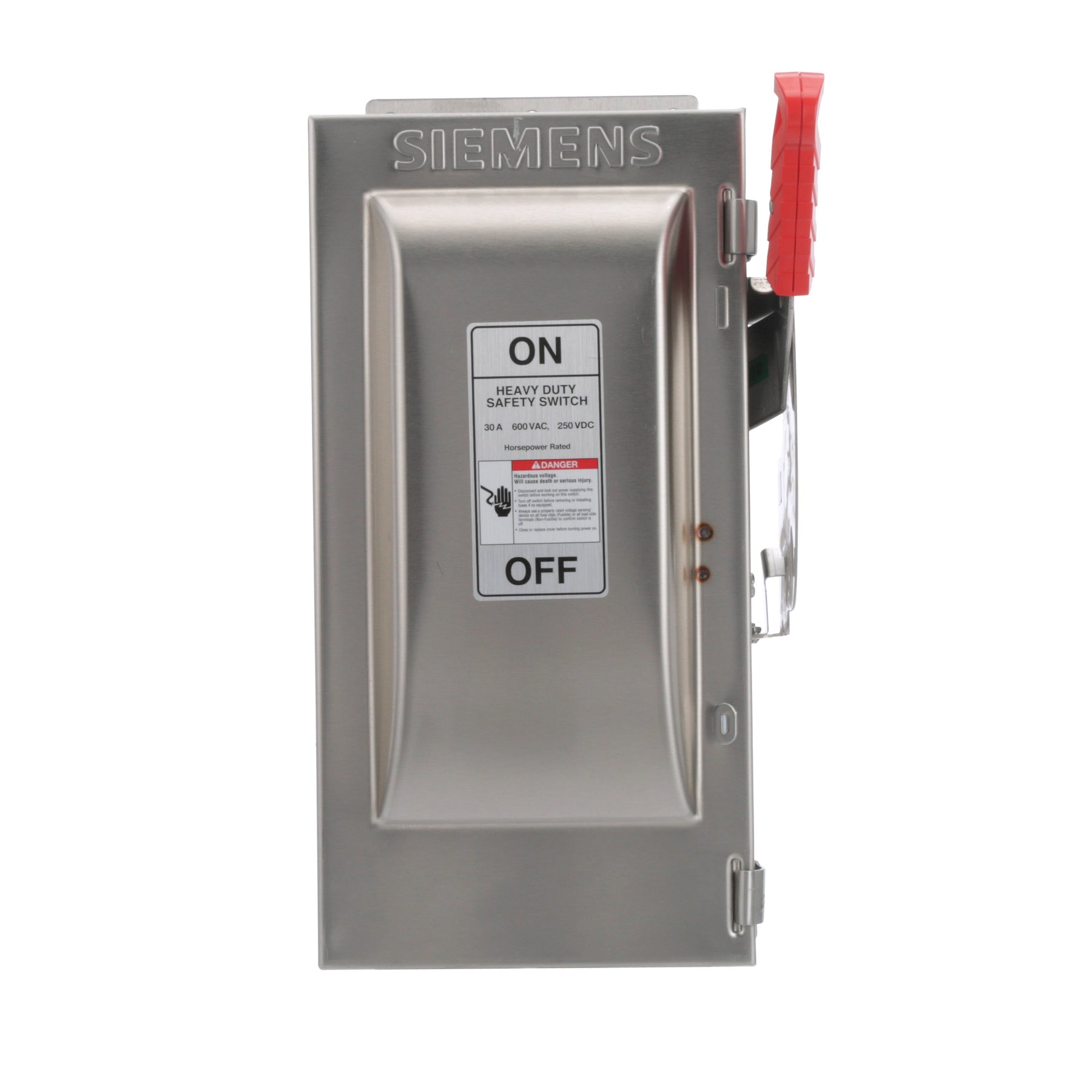

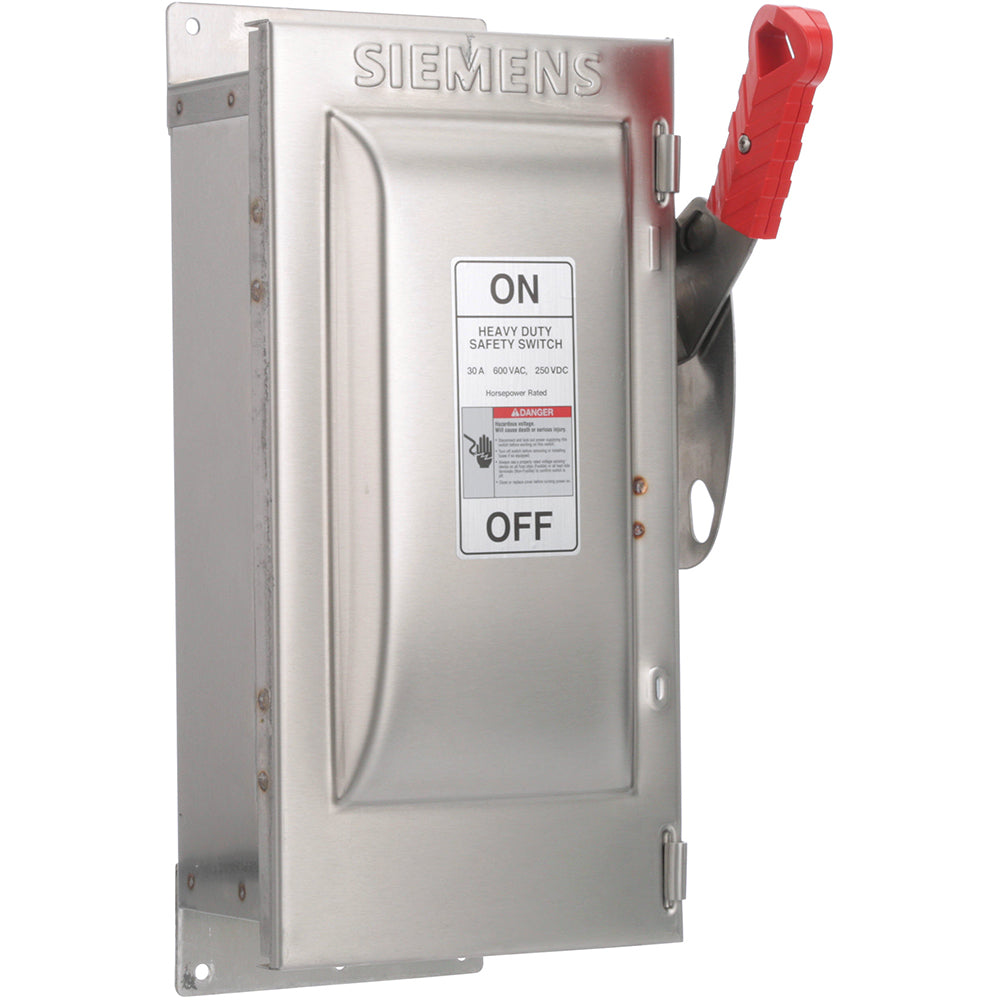

Siemens HF361SS is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial three-phase power circuits. It is rated for 600V AC and 30A, featuring a three-pole, single-configuration design with a high 200kA interrupting capacity at 600V. The switch is housed in a robust NEMA 4X enclosure measuring 20.079 x 11.417 x 7.874 inches and weighing 2.205 lb, ensuring protection against corrosion and harsh environments within an operating temperature range of -25°C to 70°C. As a UL-listed component from the VBII Series, it complies with key industry safety standards for reliable operation in demanding applications such as motor control centers, industrial machinery, and power distribution panels.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF type, visible blade design
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 20.079 x 11.417 x 7.874 inches (510 x 290 x 200 mm)
  • Standards: UL listed
  • Applications: Industrial motor control, power distribution, machinery
  • Switch Type: Fusible
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 20.079 x 11.417 x 7.874 inches
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Connection: Not Specified
  • Poles: 3
  • Protection: Overcurrent (via fuses)
  • Nema Rating: NEMA 4X
  • Enclosure: NEMA 4X
  • Certification: UL listed
  • Family: VBII Series
  • Country of Origin: Mexico
  • Weight: 2.205 lb


Product Identification
  • UPC: 040892169010
  • GTIN: 00040892169010
