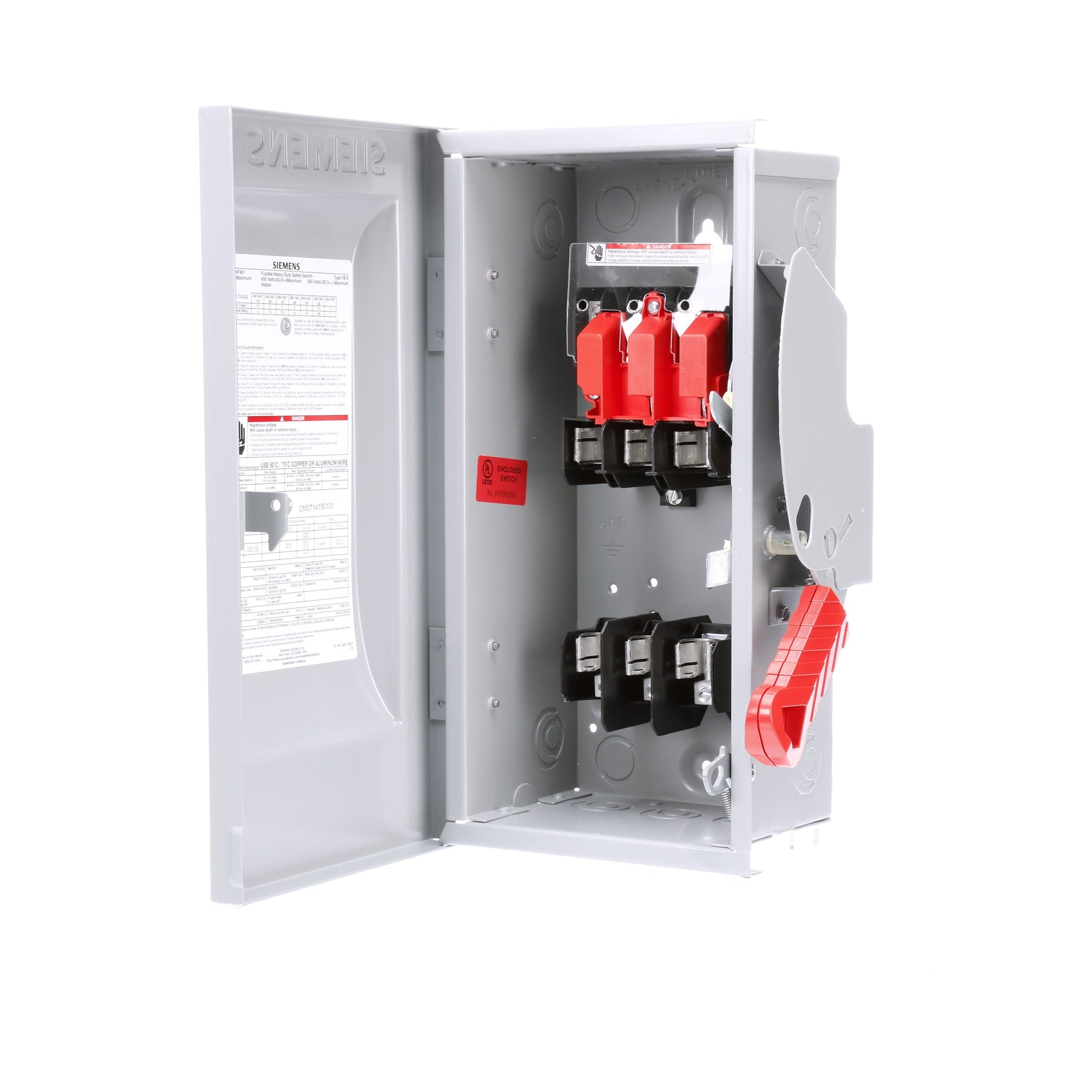

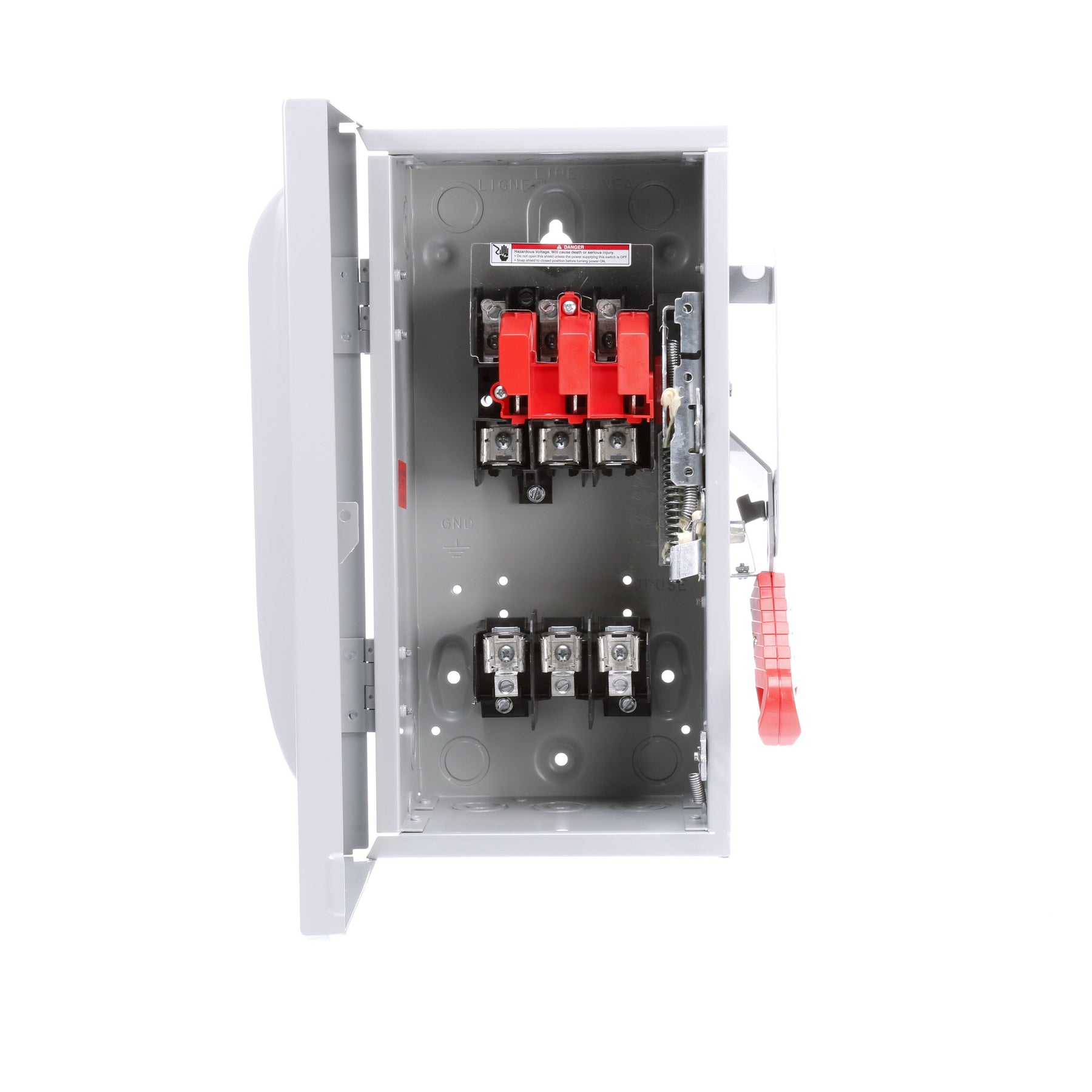

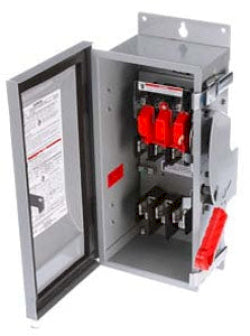

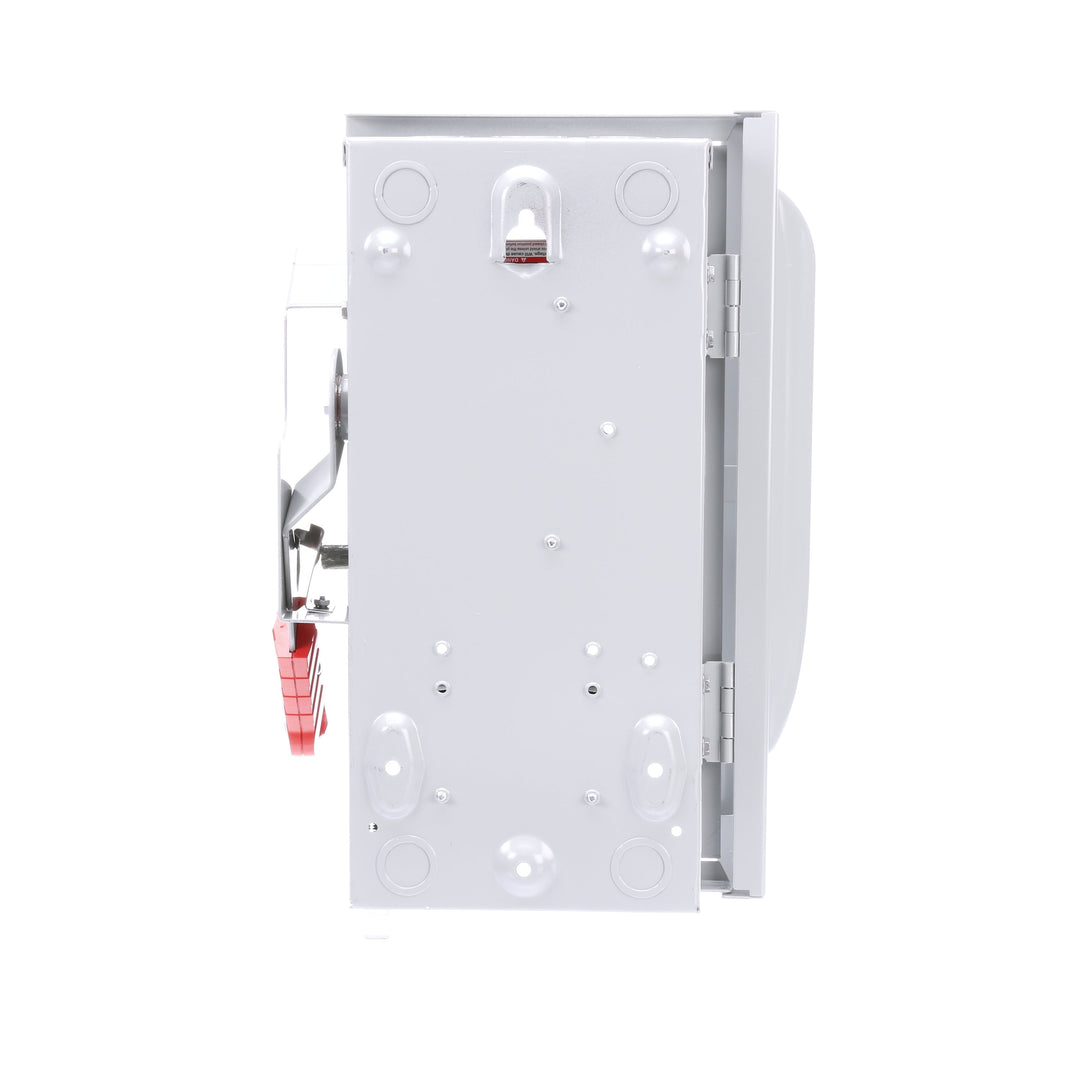

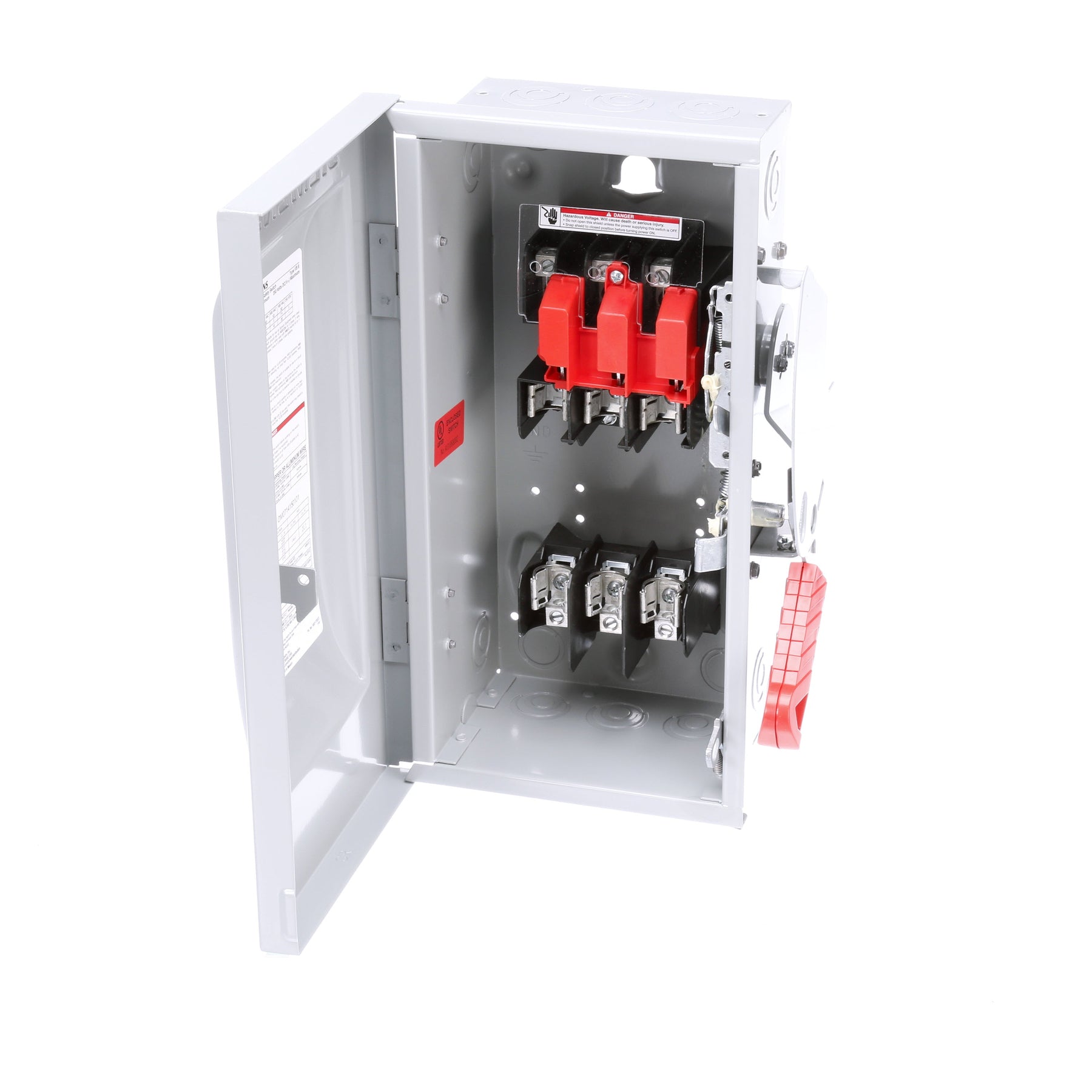

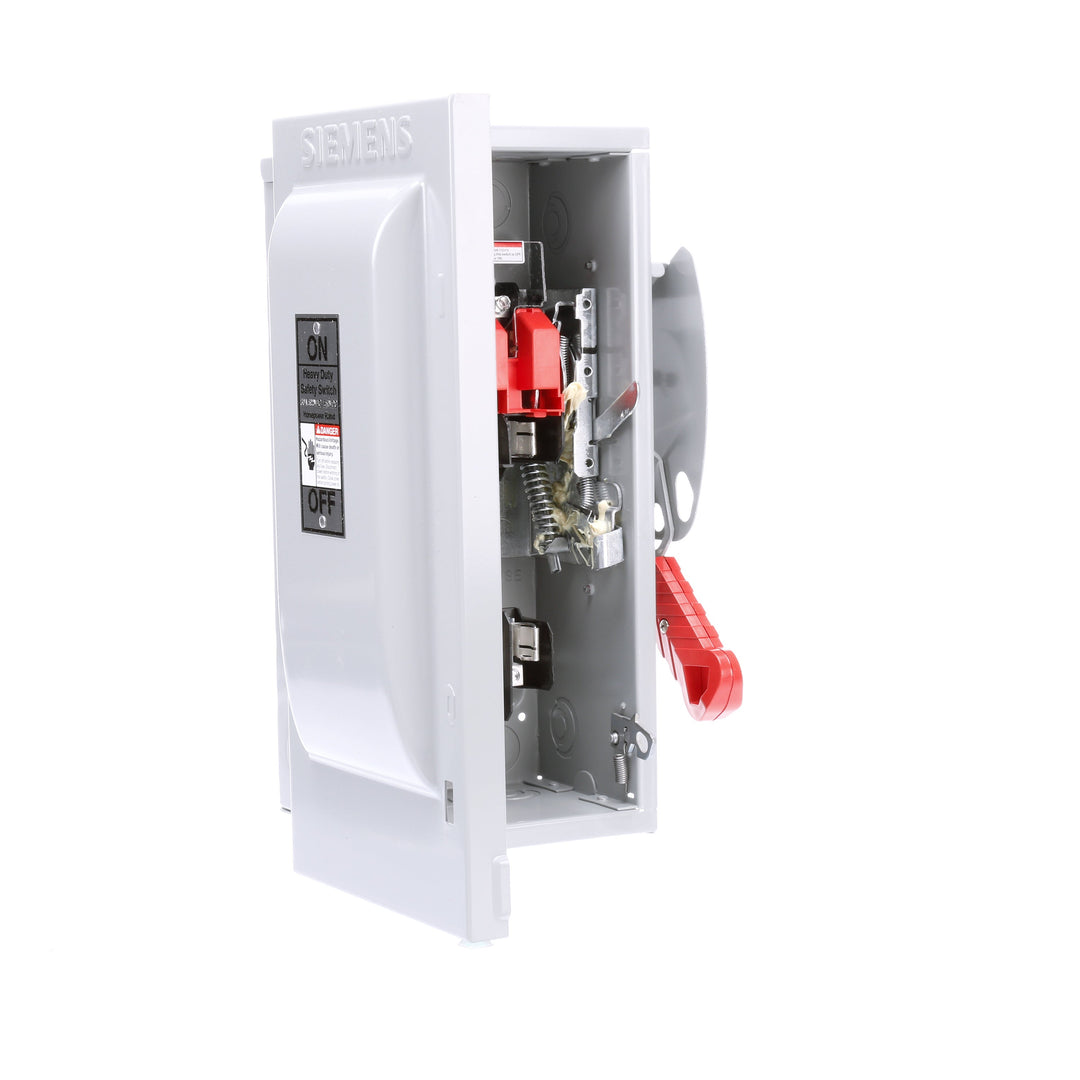

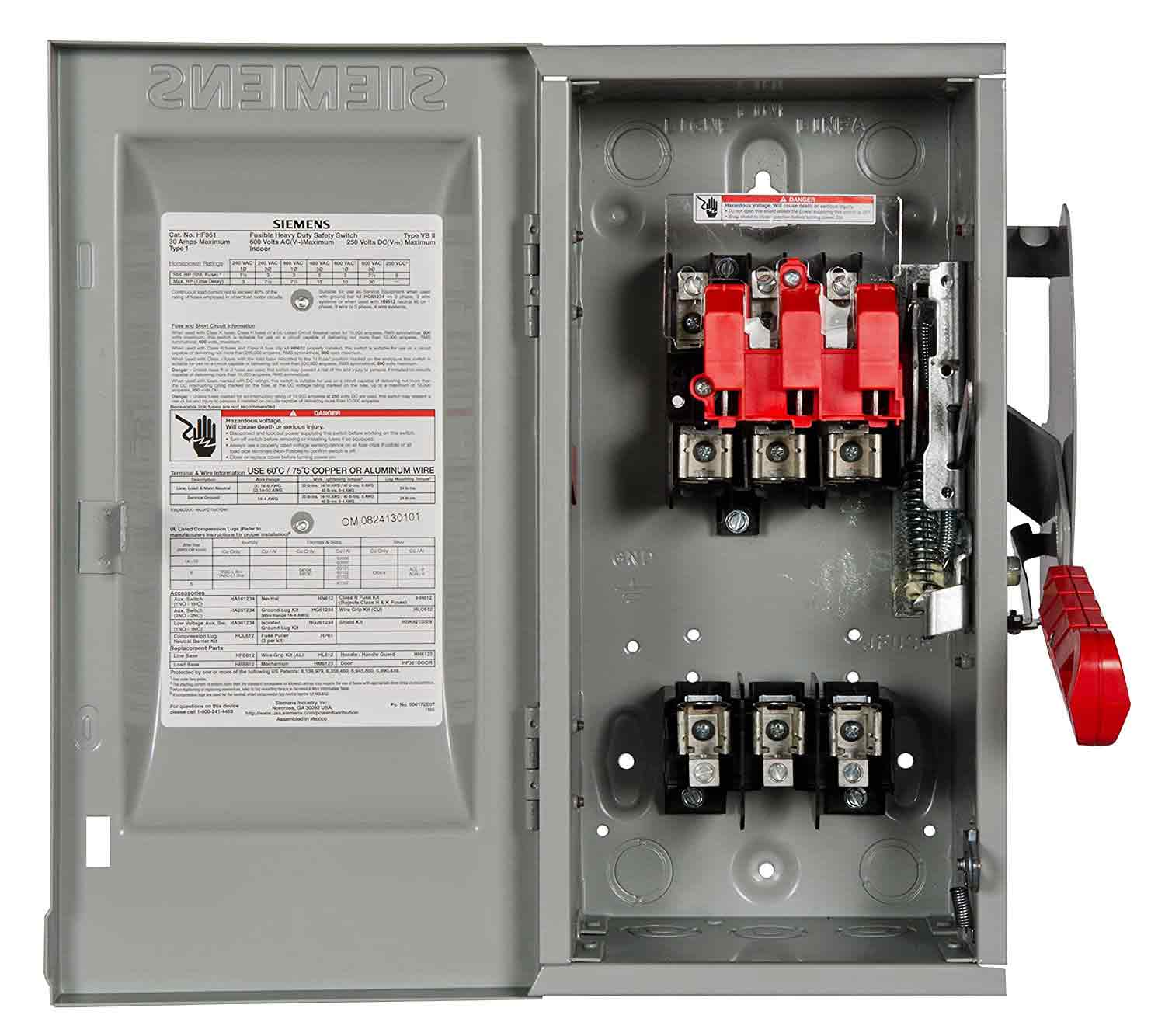

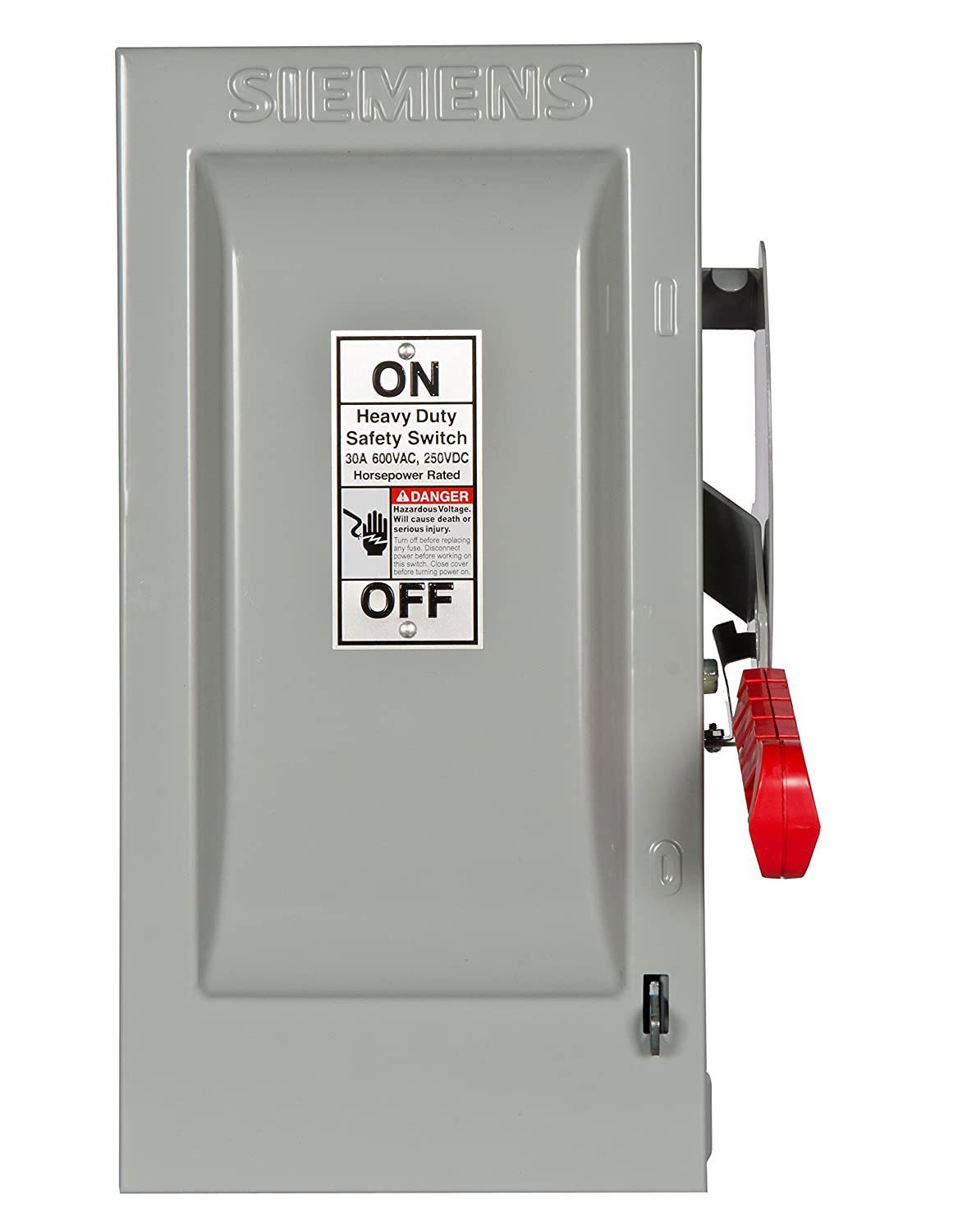

Siemens HF361 is a fusible disconnect switch designed for providing a visible means of isolation and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and a continuous current of 30A in three-phase configurations, housed in a robust NEMA 1 enclosure measuring 14.6" x 7.75" x 8.89" and weighing 13.001 lb. The switch is UL listed and operates reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). Its 200kA interrupting rating at 600V and compatibility with Class R fuses make it suitable for protecting motor control centers, industrial machinery, and panelboards where high fault current protection is required.
Key Features & Specifications
Type: Fusible Disconnect Switch, VBII Series, HF type
Voltage Rating: 600V AC
Current Rating: 30A
Configuration: Single, 3-Pole
Dimensions: 14.6 x 7.75 x 8.89 inch
Weight: 13.001 lb
Standards: UL listed, NEMA 1 Enclosure
Applications: Industrial power distribution, motor control centers, panelboards
