Siemens HF327NR - Fusible Disconnect Switch 800A 240V (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

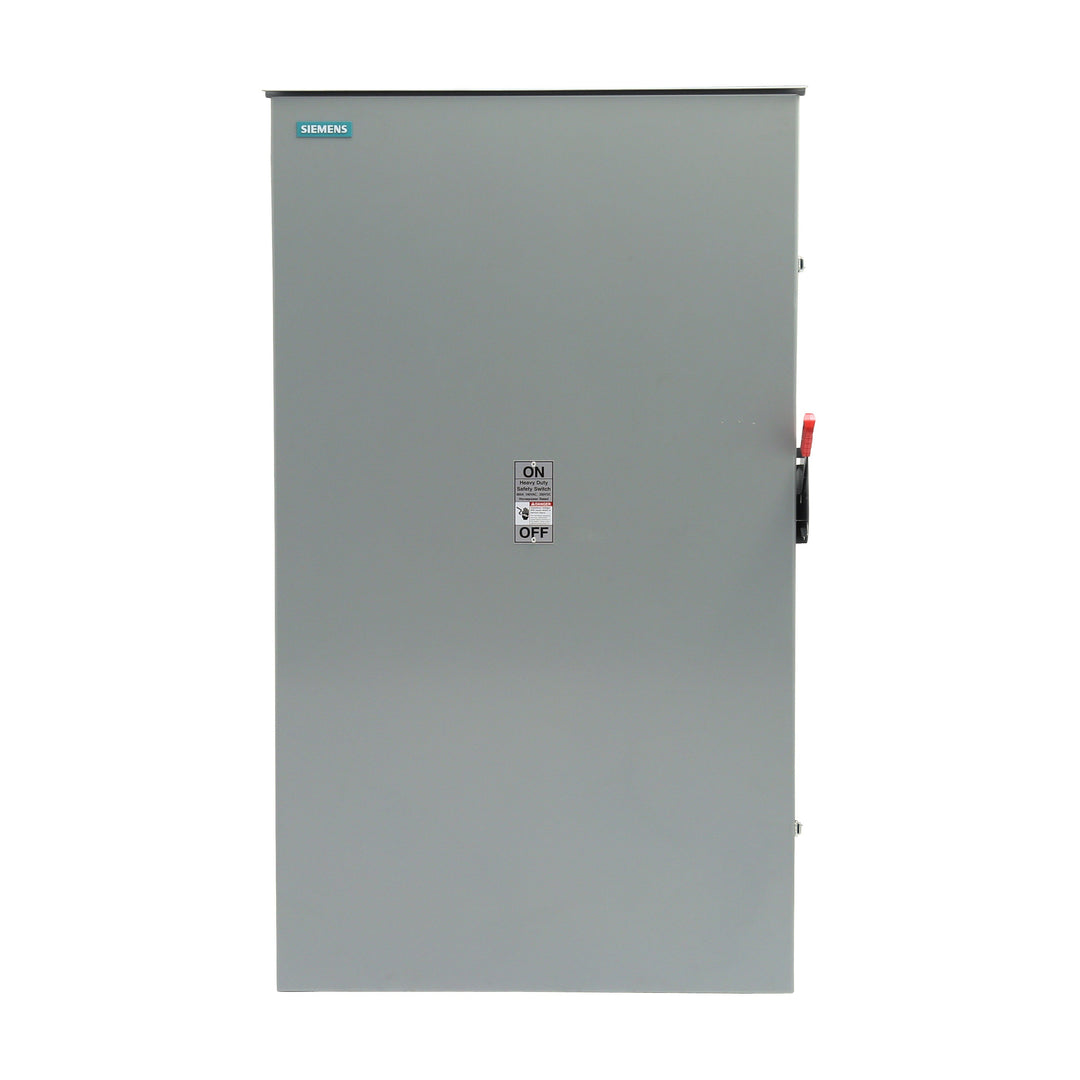

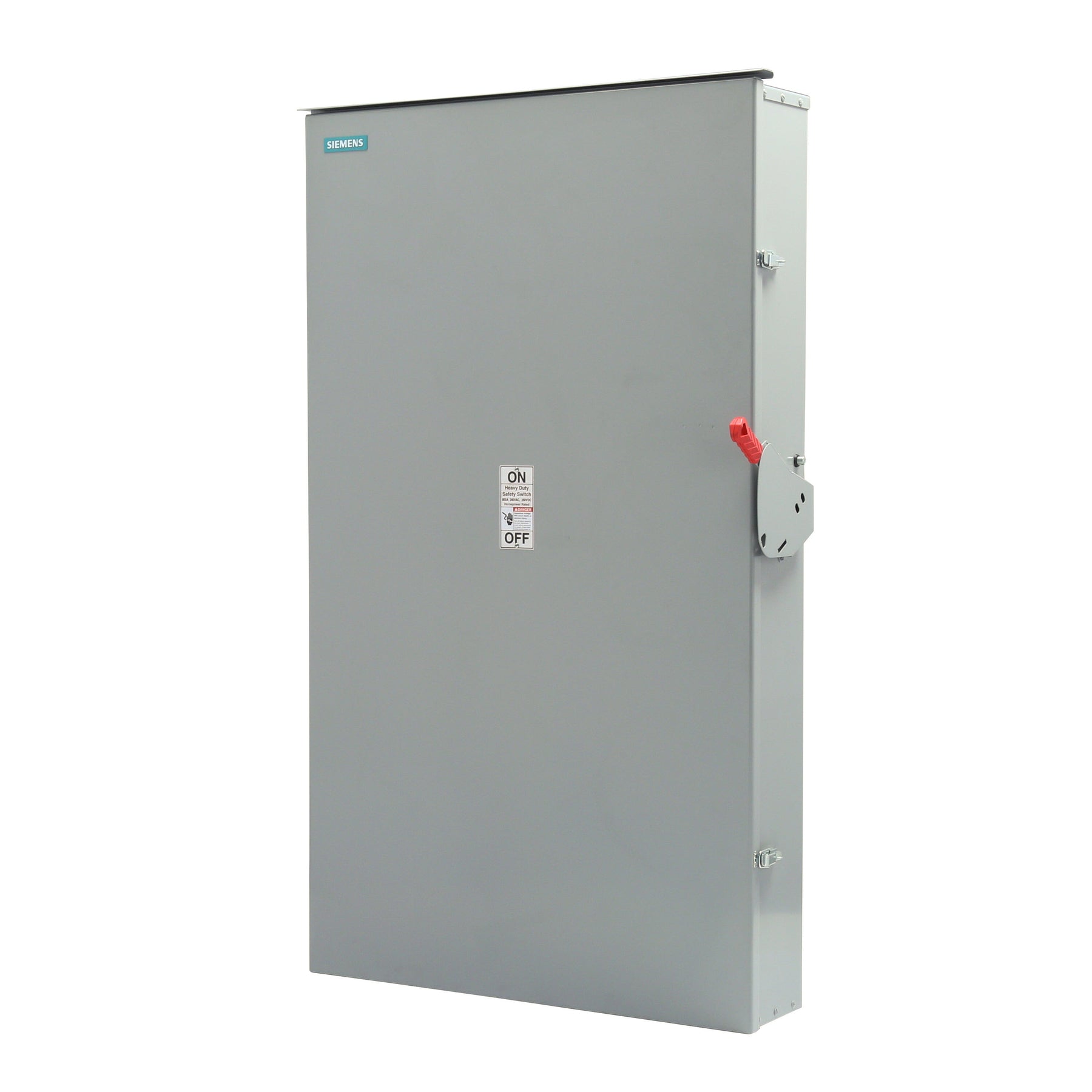

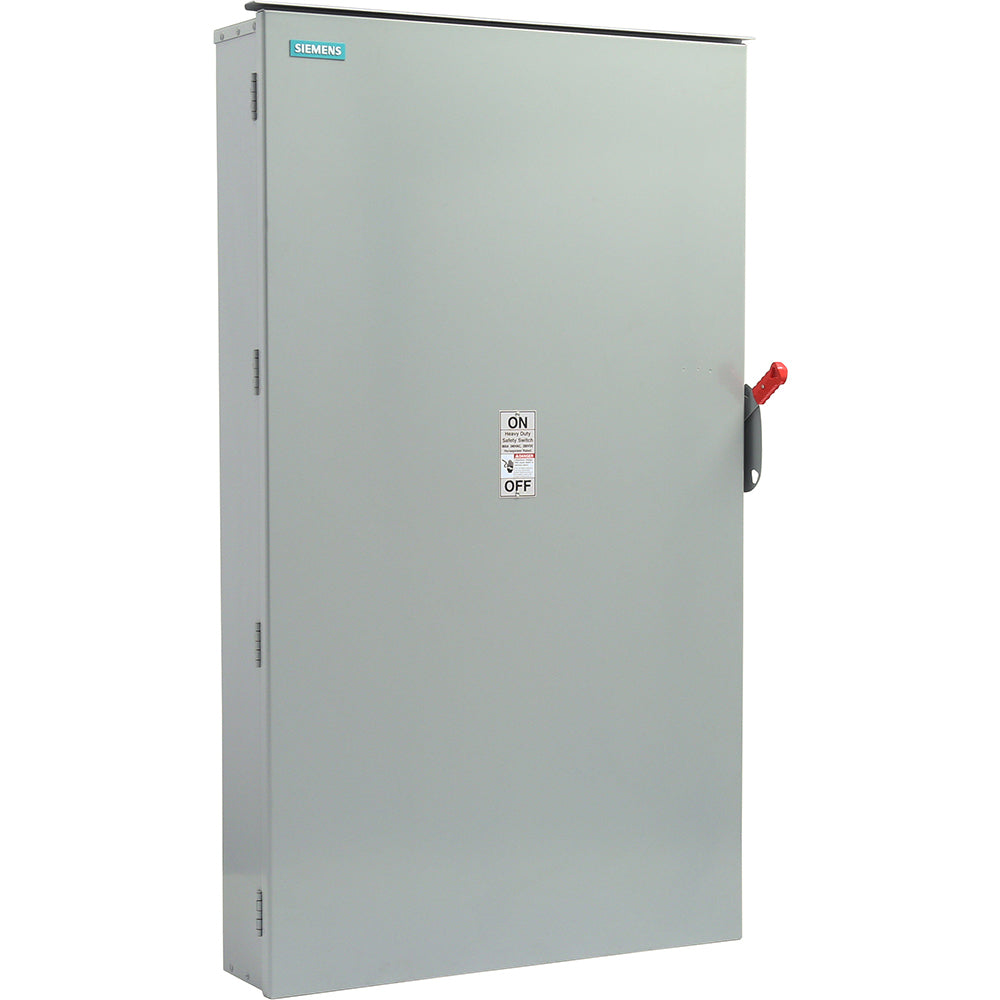

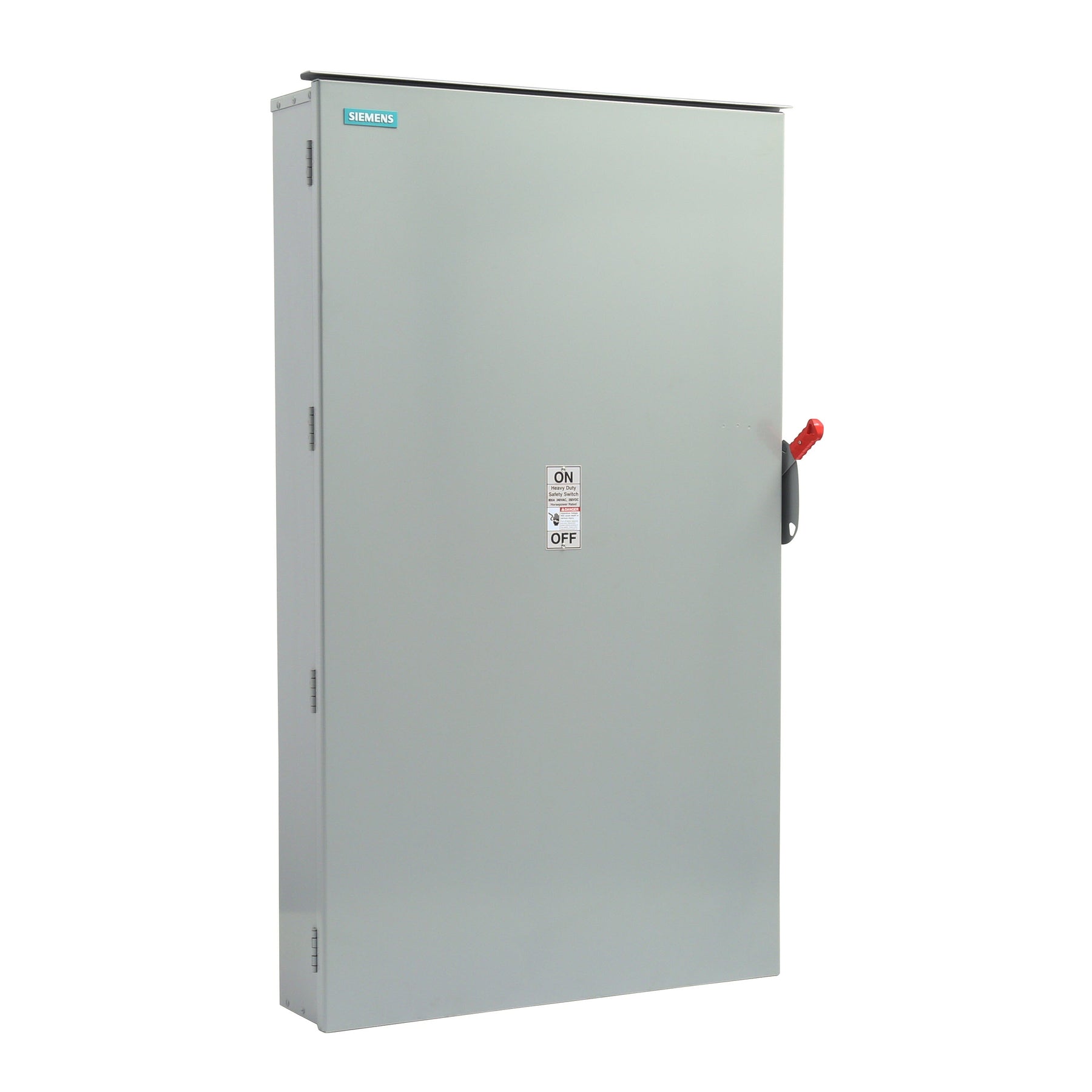

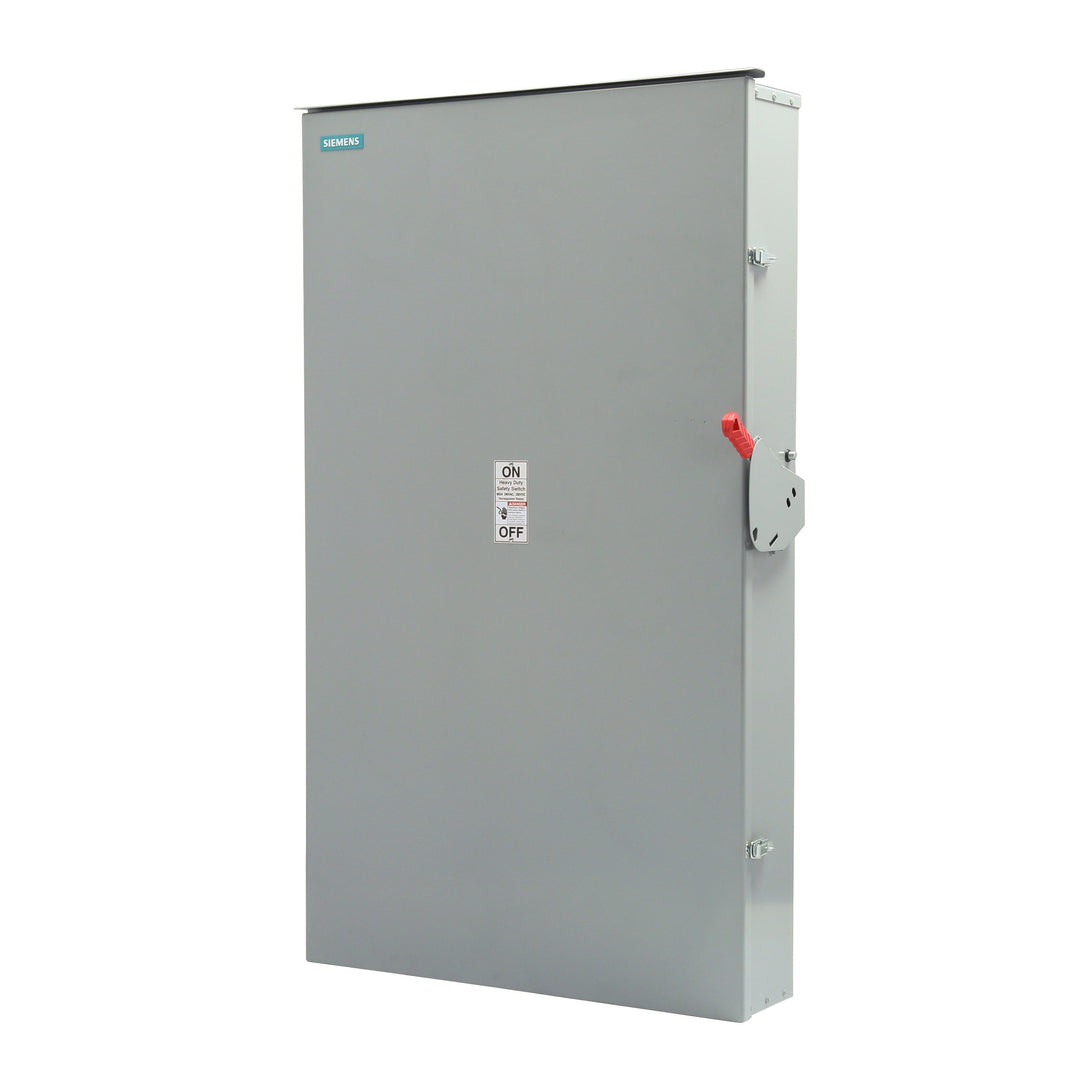

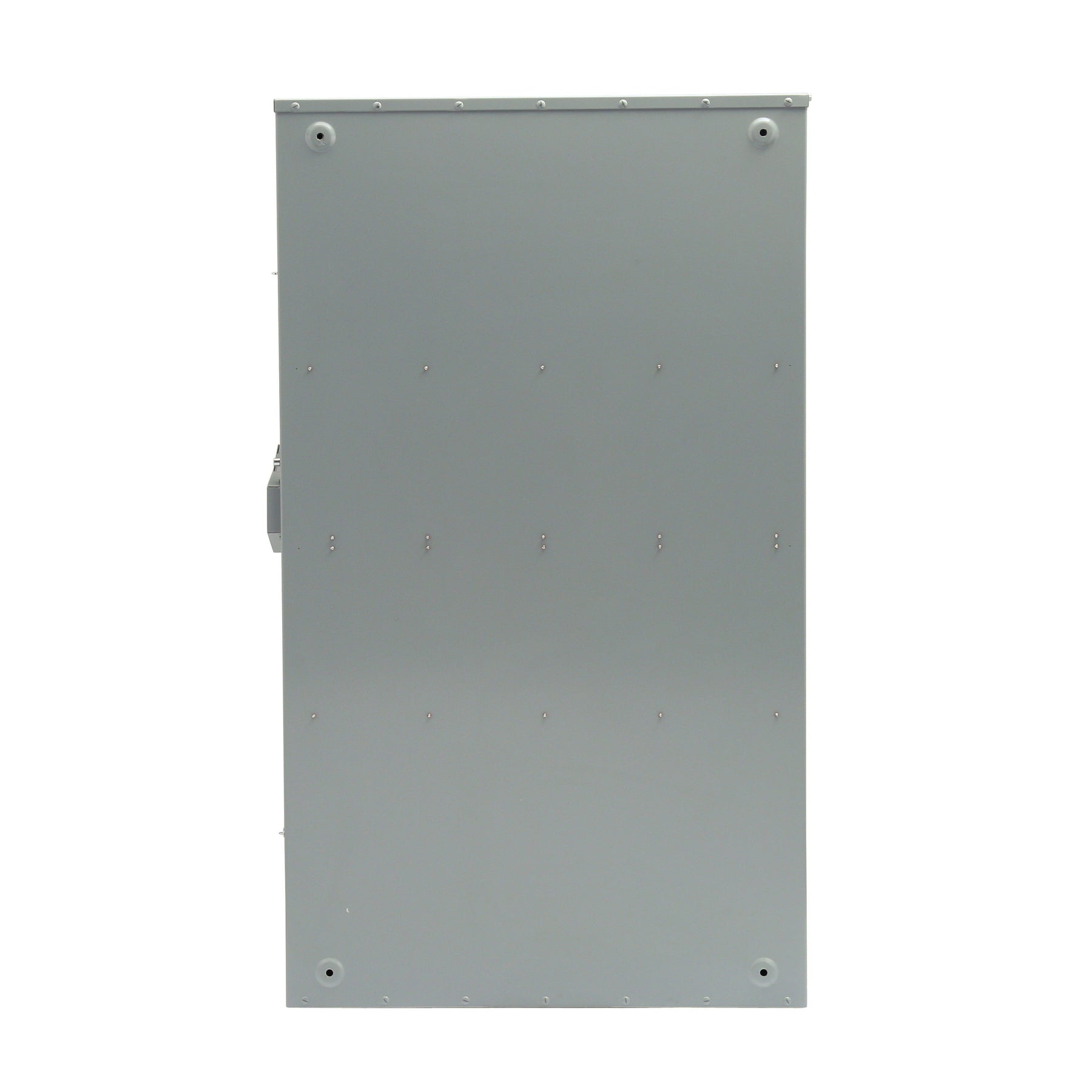

Siemens HF327NR is a heavy-duty fusible disconnect switch designed for providing visible isolation and overcurrent protection in three-phase industrial power distribution systems. It is rated for 800A at 240V AC with an interrupting capacity of 200kA, housed within a robust, NEMA 3R-rated enclosure measuring 71.654 x 42.126 x 10.63 inches and weighing 353.732 lb. The switch features a single-configuration, three-pole design compatible with Class L fuses and is UL listed, ensuring compliance with industry safety standards for reliable operation in demanding environments such as manufacturing plants and large commercial facilities.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 240V AC
  • Current Rating: 800A
  • Dimensions: 71.654" x 42.126" x 10.63"
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, main service disconnects, feeder protection
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 200kA @ 240V
  • Fuse Class: Class L
  • Compatible Frames: NS Frame
  • Weight: 353.732 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643150744
  • GTIN: 00783643150744
