Siemens HF326NA - Fusible Disconnect Switch 600A 240V (200kA AIC)
Siemens HF326NA - Fusible Disconnect Switch 600A 240V (200kA AIC)

Siemens HF326NA - Fusible Disconnect Switch 600A 240V (200kA AIC)

Siemens
Price
Save $-3,035.19
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

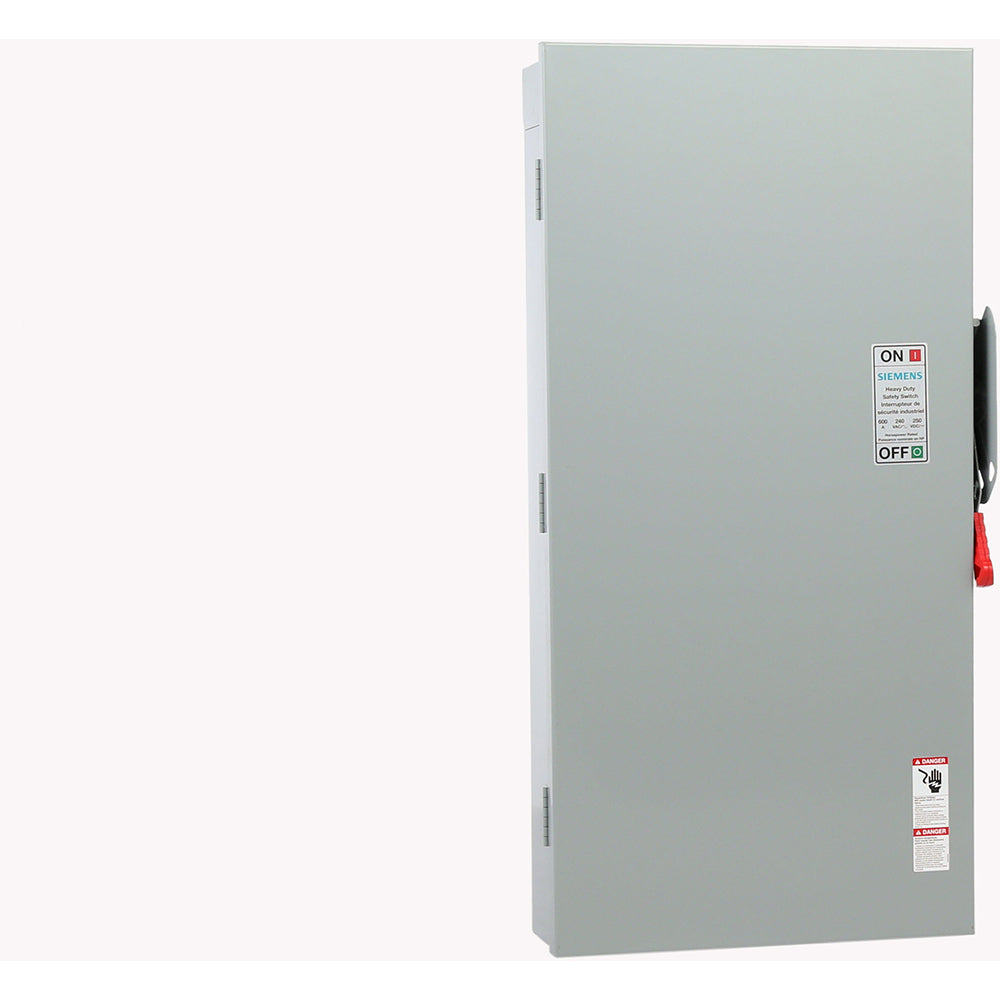

Siemens HF326NA is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution systems. It is rated for 600A at 240V AC with an interrupting capacity of 200kA, housed in a robust NEMA 1 enclosure measuring 6.693" x 22.047" x 45.276" and weighing 99.803 lb. The switch features a 3-pole, single configuration with provisions for four wires and is UL listed for compliance with industry safety standards, making it suitable for use in motor control centers, industrial panels, and main service disconnects.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, HF Type, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • Switch Style: Fusible
  • NEMA Rating: NEMA 1
  • Dimensions: 6.693" W x 22.047" H x 45.276" D
  • Weight: 99.803 lb
  • Wire: 4
  • Certification: UL Listed
  • Enclosure: NEMA 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872588
  • GTIN: 00887621872588
