Siemens HF325NRA - Fusible Disconnect Switch, 400A 3-Pole

Siemens
Price
Save $9,692.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

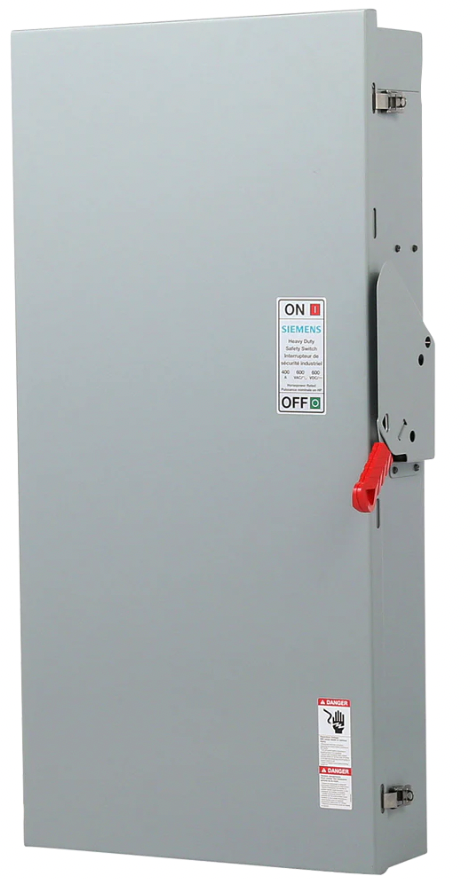

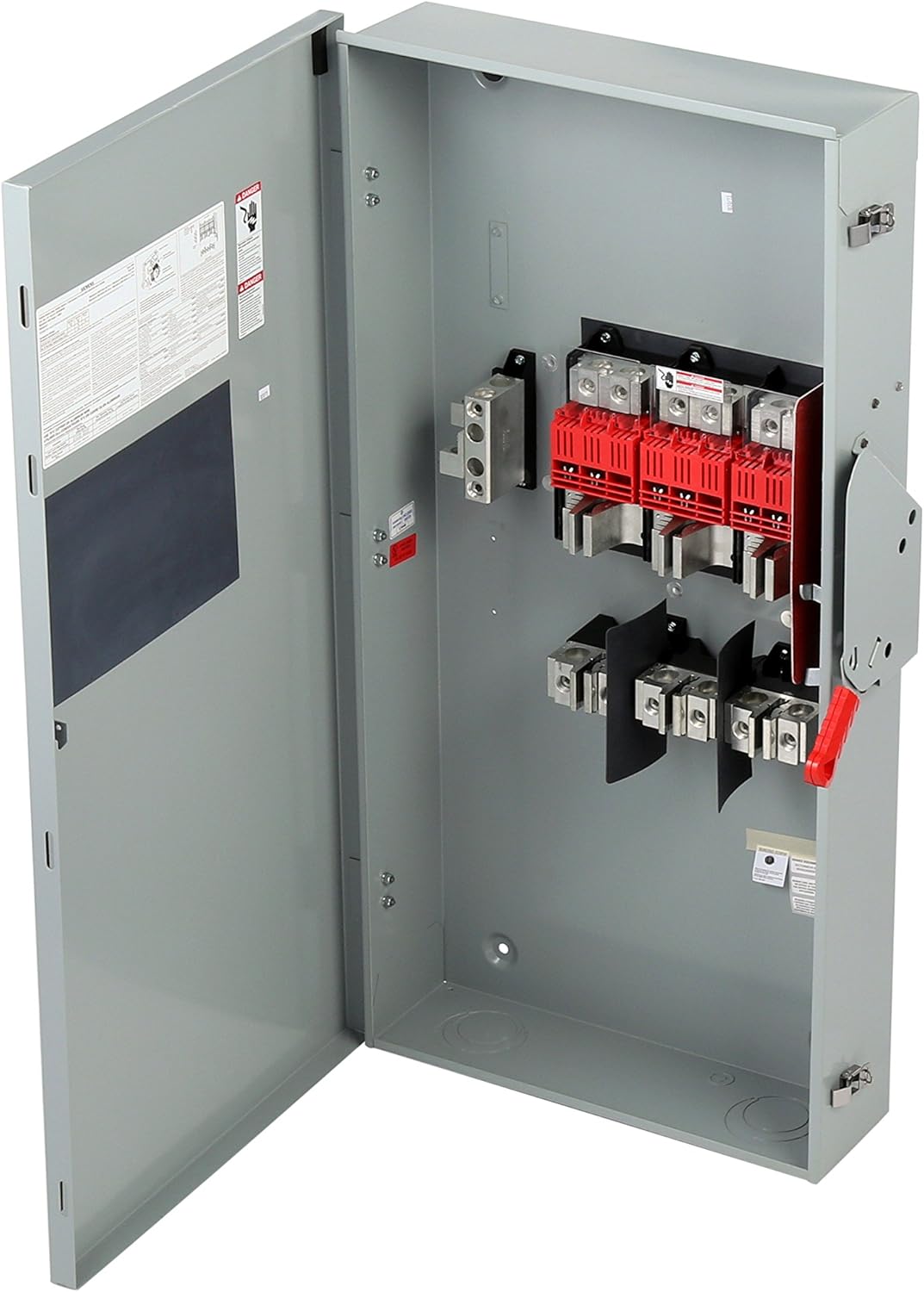

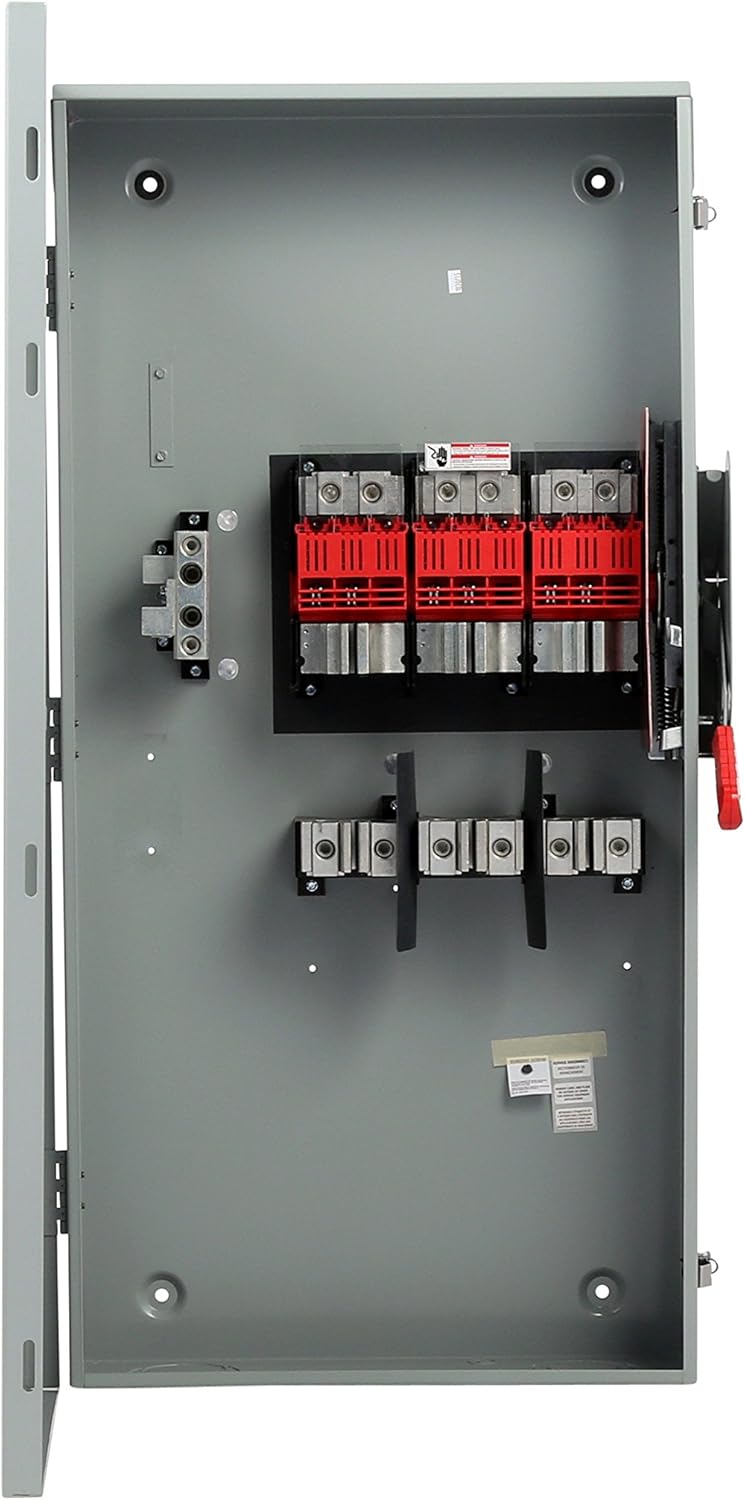

Siemens HF325NRA is a fusible disconnect switch designed for providing a visible break and overcurrent protection in three-phase industrial power distribution systems. It is rated for 240V AC operation with a current rating of 400A and an interrupting capacity of 200kA at 240V, ensuring robust protection against short circuits. The switch features a rugged NEMA 3R enclosure measuring 6.693" x 22.047" x 45.276" and weighing 94.583 lb, constructed for reliable operation in temperatures from -25°C to 70°C. It is UL listed and complies with industry standards for safety and performance. Typical applications include service entrance equipment, motor control centers, and industrial machinery where a fused disconnect is required for maintenance and protection.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 240V AC
  • Current Rating: 400A (Range: 200A to 400A)
  • Dimensions: 6.693" W x 22.047" H x 45.276" D
  • Weight: 94.583 lb
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, service entrance, motor control
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 1/0 to 750 Kcmil, Copper or Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872502
  • GTIN: 00887621872502
