Siemens HF325NA - Fusible Disconnect Switch 400A 3P (200kA AIC)
Siemens HF325NA - Fusible Disconnect Switch 400A 3P (200kA AIC)
SIemens HF325NA Disconnect Switch (Fusible) - Essential Electric Supply
Siemens HF325NA - Fusible Disconnect Switch 400A 3P (200kA AIC)
Siemens HF325NA - Fusible Disconnect Switch 400A 3P (200kA AIC)

Siemens HF325NA - Fusible Disconnect Switch 400A 3P (200kA AIC)

Siemens
Price
Save $8,185.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

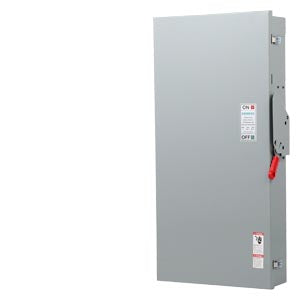

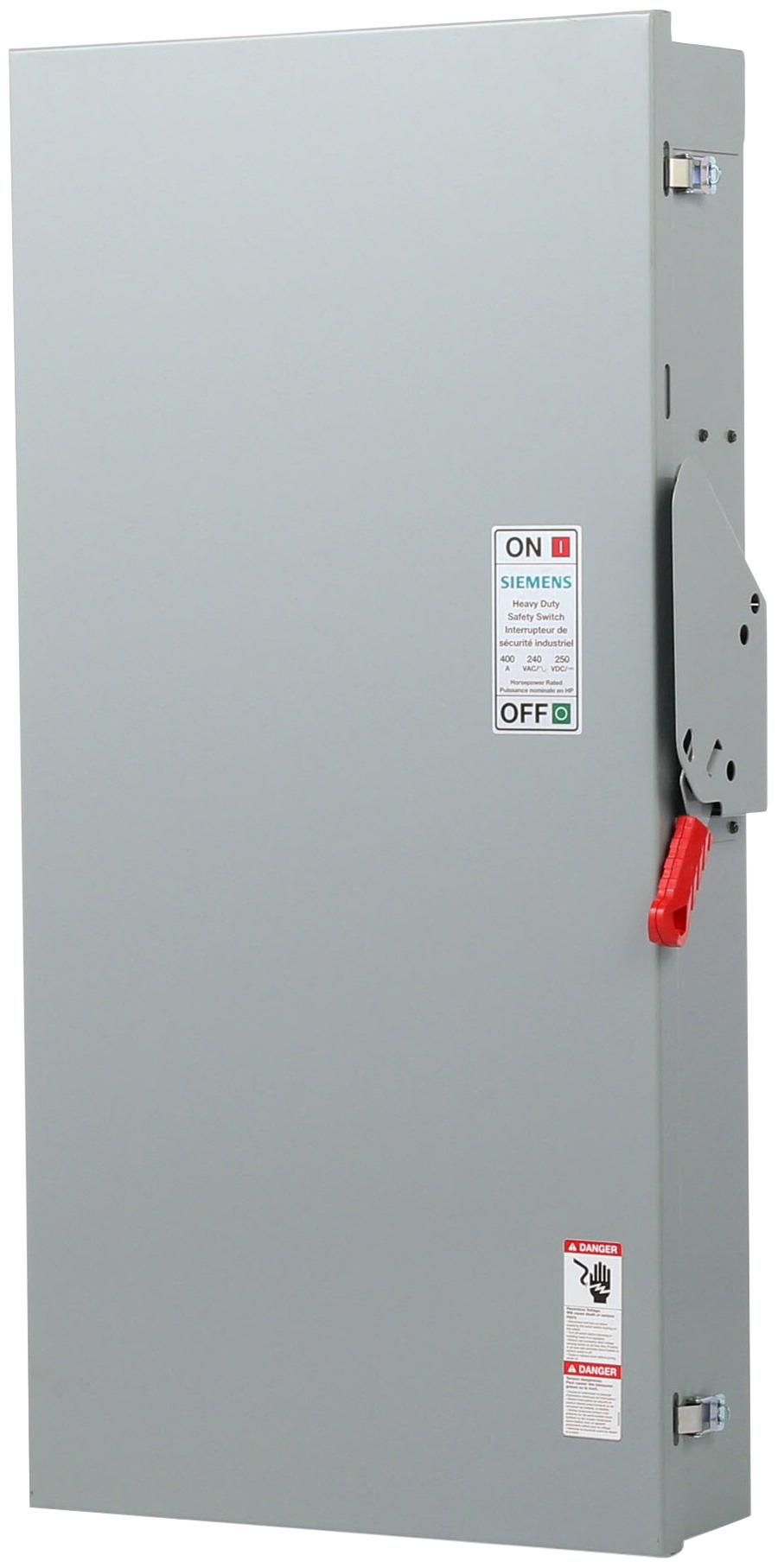

Siemens HF325NA is a fusible disconnect switch designed for providing visible isolation and overcurrent protection in industrial power distribution systems. It is rated for 400A at 240V AC in a three-phase configuration and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed with a NEMA 1 enclosure, measures 6.693" x 22.047" x 45.276" (W x H x D), and weighs approximately 139 lb, designed for compatibility with NS series frames. It is UL listed and accepts Class R and J fuses, making it suitable for applications in motor control centers, industrial panels, and main service disconnects where reliable circuit isolation and protection are required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF type
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R, J
  • NEMA Rating: NEMA 1
  • Phase: 3
  • Dimensions: 6.693" W x 22.047" H x 45.276" D
  • Weight: 139 lb
  • Standards: UL Listed
  • Compatible Frames: NS Series
  • Applications: Industrial power distribution, motor control centers, main service disconnects
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872489
  • GTIN: 00887621872489
