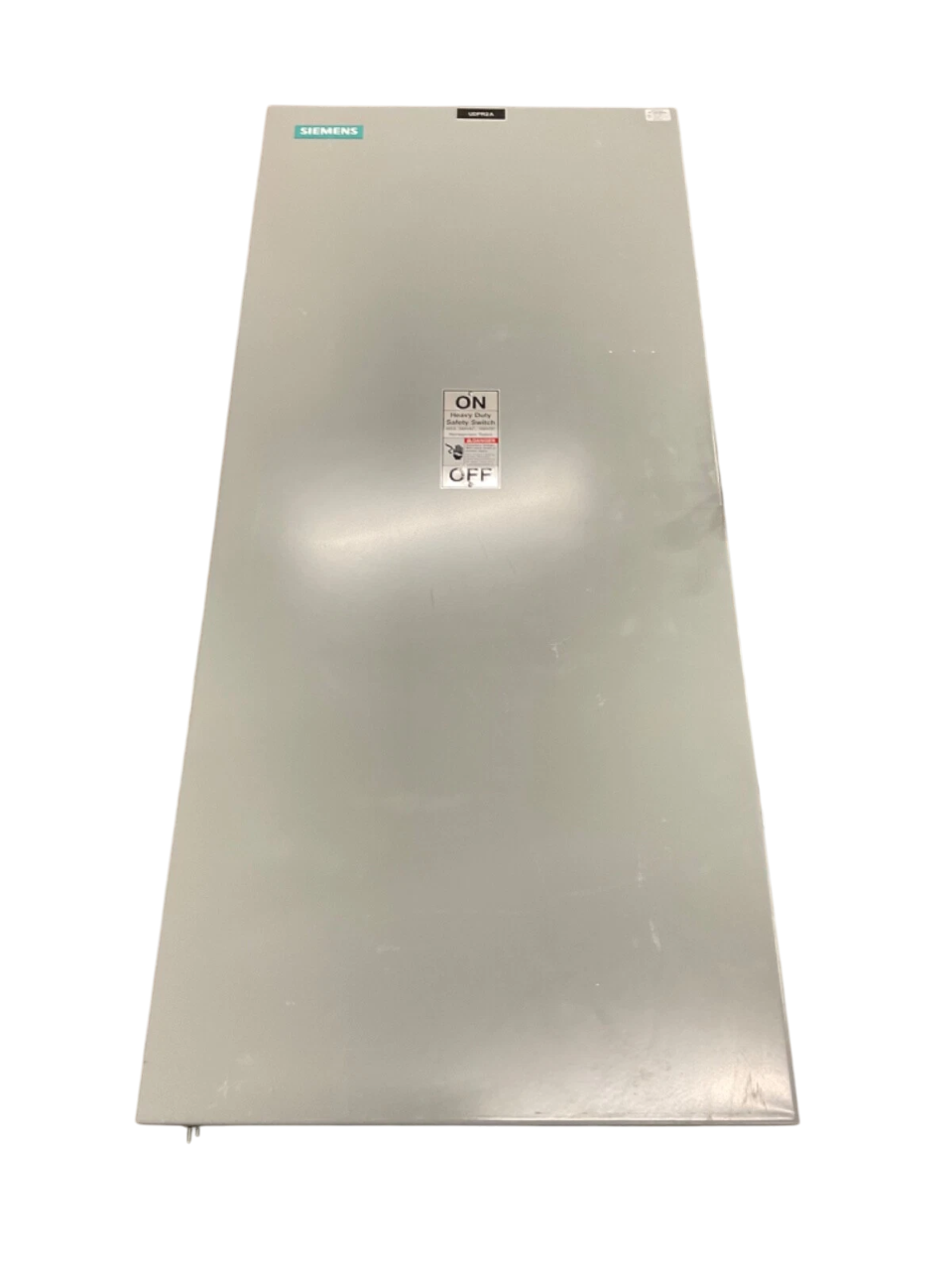

Siemens HF325N - Fusible Disconnect Switch 400A@240V (200kA AIC)

Siemens HF325N is a fusible safety disconnect switch designed for industrial power distribution systems requiring high fault current protection. This 3-phase switch features a 400A current rating and 240V voltage rating with a 200kA interrupting capacity at 240V, housed in a NEMA 1-rated enclosure weighing 258 lb for durable operation. The VBII Series switch complies with industry standards for fusible disconnects, utilizing Class R fuses in a single-configuration, 3-pole design compatible with NS frames. Typical applications include motor control centers, HVAC systems, and heavy machinery power isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch (VBII Series HF type)
• Voltage Rating: 240V AC
• Current Rating: 400A
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@240V
• Fuse Class: R
• NEMA Rating: 1
• Compatible Frames: NS
• Switch Style: Fusible
• Weight: 258 lb

Product Identification

• UPC: 887621872502
• GTIN: 00783164133172
