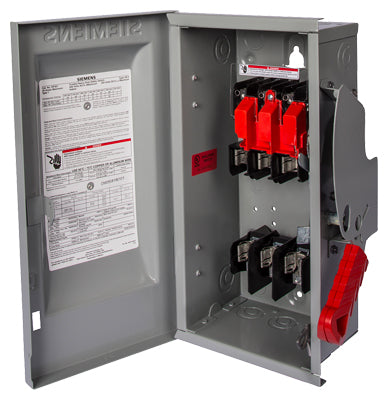

Siemens HF262 is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution circuits. It is rated for 600V AC systems with a continuous current capacity of 60A and features a two-pole, single-phase configuration for isolating and protecting branch circuits. The switch is constructed within a NEMA 1 enclosure measuring 16.62 x 10.37 x 8.67 inches and weighing 18.001 lb, and it is compatible with Class R fuses to achieve an interrupting rating of 200kA at 600V. This UL-listed component, part of the VBII Series and manufactured in Mexico, complies with industry safety standards and is typically applied in motor control centers, industrial panels, and machinery where reliable circuit isolation and high-fault protection are required.
Key Features & Specifications
Type: Fusible Disconnect Switch, HF Type, VBII Series
Voltage Rating: 600V AC
Current Rating: 60A
Configuration: Single, 2-Pole
Phase: 1
AIC Rating: 200kA @ 600V
Fuse Class: R
NEMA Rating: NEMA 1
Dimensions: 16.62 x 10.37 x 8.67 inch
Weight: 18.001 lb
Standards: UL Listed
Compatible Frames: ED
Applications: Industrial power distribution, motor control centers, machinery isolation
