Siemens HF224N - Fusible Disconnect Switch 200A 240V (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

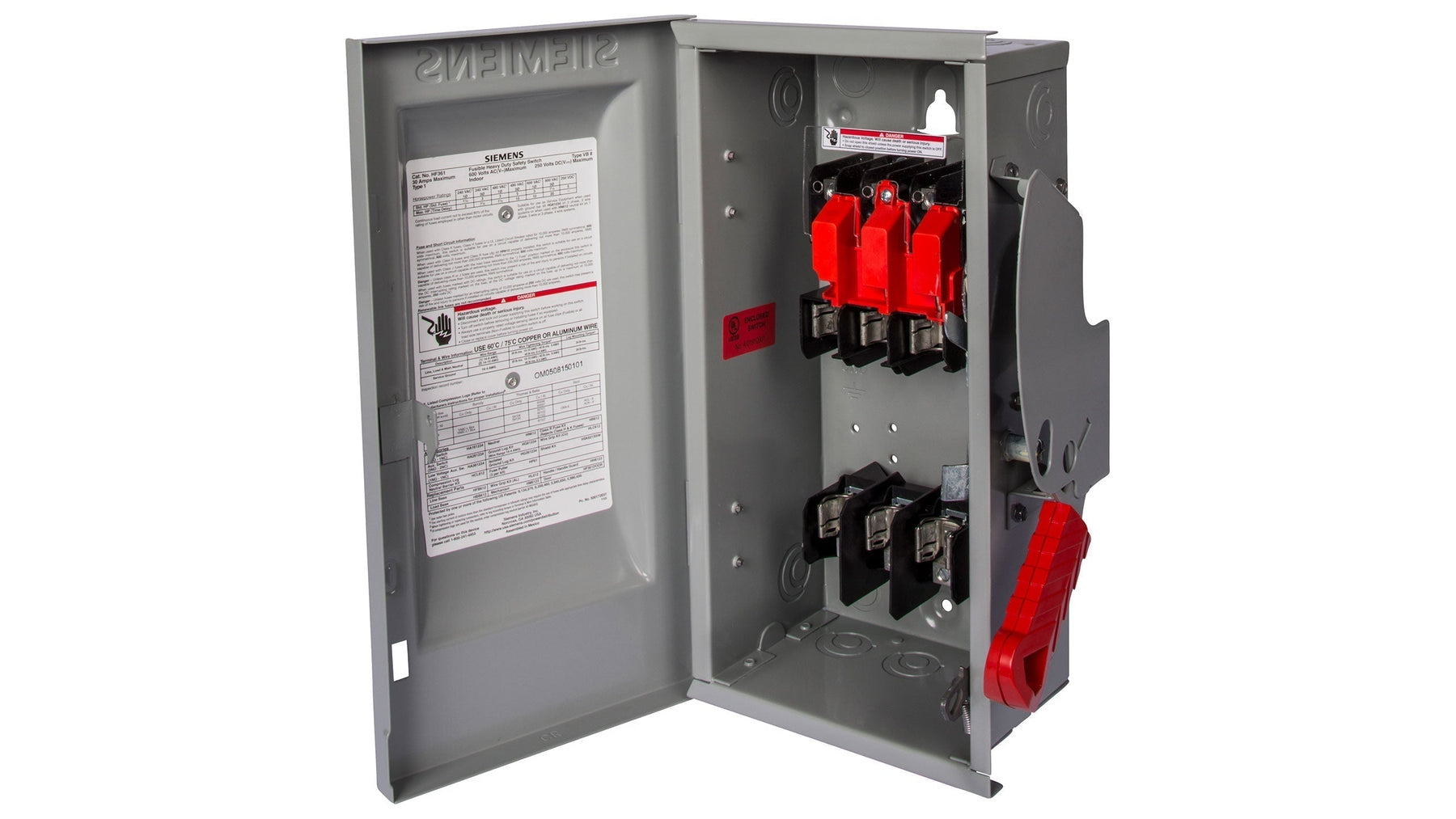

Siemens HF224N is a fusible disconnect switch designed for providing a visible break and overcurrent protection in industrial power distribution systems. It is rated for 240V AC single-phase operation with a continuous current rating of 200A and a high interrupting capacity of 200kA at 240V. The switch is constructed within a NEMA 1 enclosure measuring 33.465" x 18.504" x 9.449" and weighing 40.08 lb, and it is designed for use with Class R fuses. This unit is UL listed and is compatible with Siemens MHP frames for integrated assembly, making it suitable for applications such as motor control centers, industrial machinery, and panelboards where reliable isolation and protection are required.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, VBII Series, HF Type
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 33.465 x 18.504 x 9.449 inch
  • Standards: UL listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • AIC rating: 200kA @ 240V
  • Poles: 2
  • Phase: 1
  • Fuse Class: R
  • Nema Rating: NEMA 1
  • Compatible Frames: MHP
  • Country of Origin: Mexico
  • Weight: 40.08 lb


Product Identification
  • UPC: 783643150232
  • GTIN: 00783643150232
