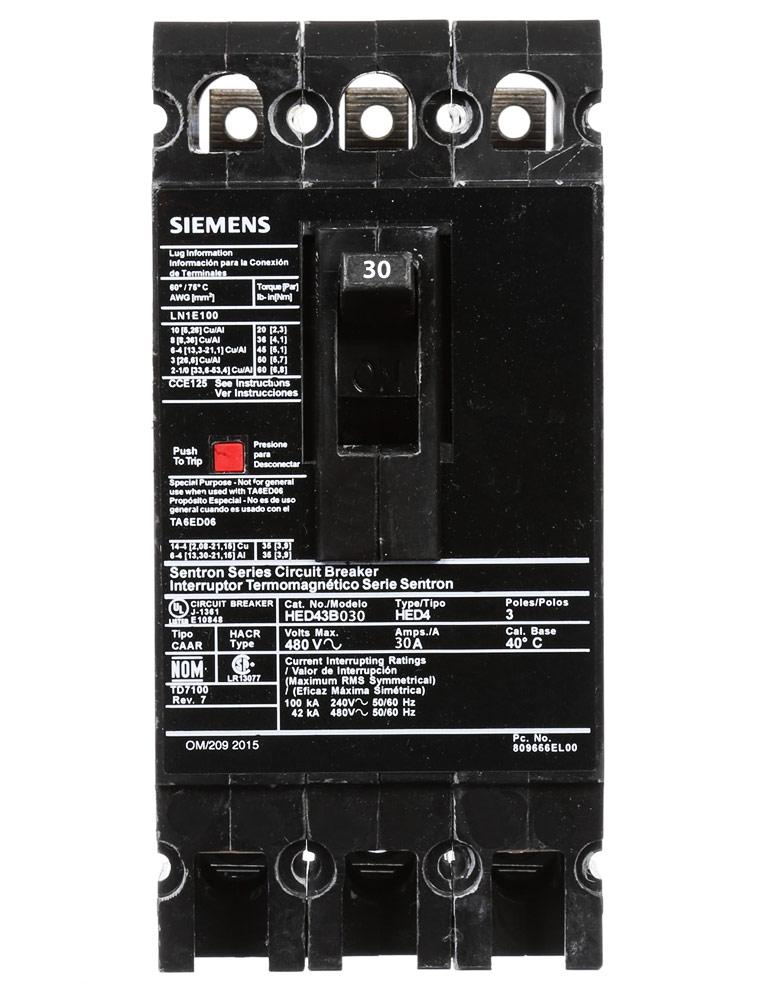

Siemens HED43B030 - Molded Case Circuit Breaker 30A 480V 3P (42kA AIC)
Siemens HED43B030 - Molded Case Circuit Breaker 30A 480V 3P (42kA AIC)

Siemens HED43B030 - Molded Case Circuit Breaker 30A 480V 3P (42kA AIC)

Siemens
Price
Save $4,048.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HED43B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 3" x 6.34" (76.2 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous protection. This HACR-rated and UL-listed breaker is constructed for operation in temperatures from -25°C to 70°C and is engineered for a high interrupting capacity of 42kA at 480V. It is typically applied in industrial and commercial power distribution within SB switchboards and Sentron panelboards, utilizing load-side lugs for secure connections with copper or aluminum conductors ranging from AWG 10 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, High Interrupting Capacity
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 3 in x 6.34 in (76.2 mm x 161 mm)
  • Weight: 3.657 lb
  • Standards: HACR Rated, UL Listed
  • Applications: SB Switchboards, Sentron Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25°C to 70°C
  • Phase: 3
  • AIC Rating: 42kA @ 480V
  • Connection: Lug In Panelboard, Load Side Lug
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/ED
  • Breaker Type: High Interrupting Capacity
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Wire Size: AWG 10 to AWG 1/0, Cu/Al
  • Certification: HACR Rated, UL Listed
  • Phase Connection: ABC
  • Panel Type: SB Switchboards, Sentron Panelboards


Product Identification
  • UPC: 783643210127
  • GTIN: 00783643210127
