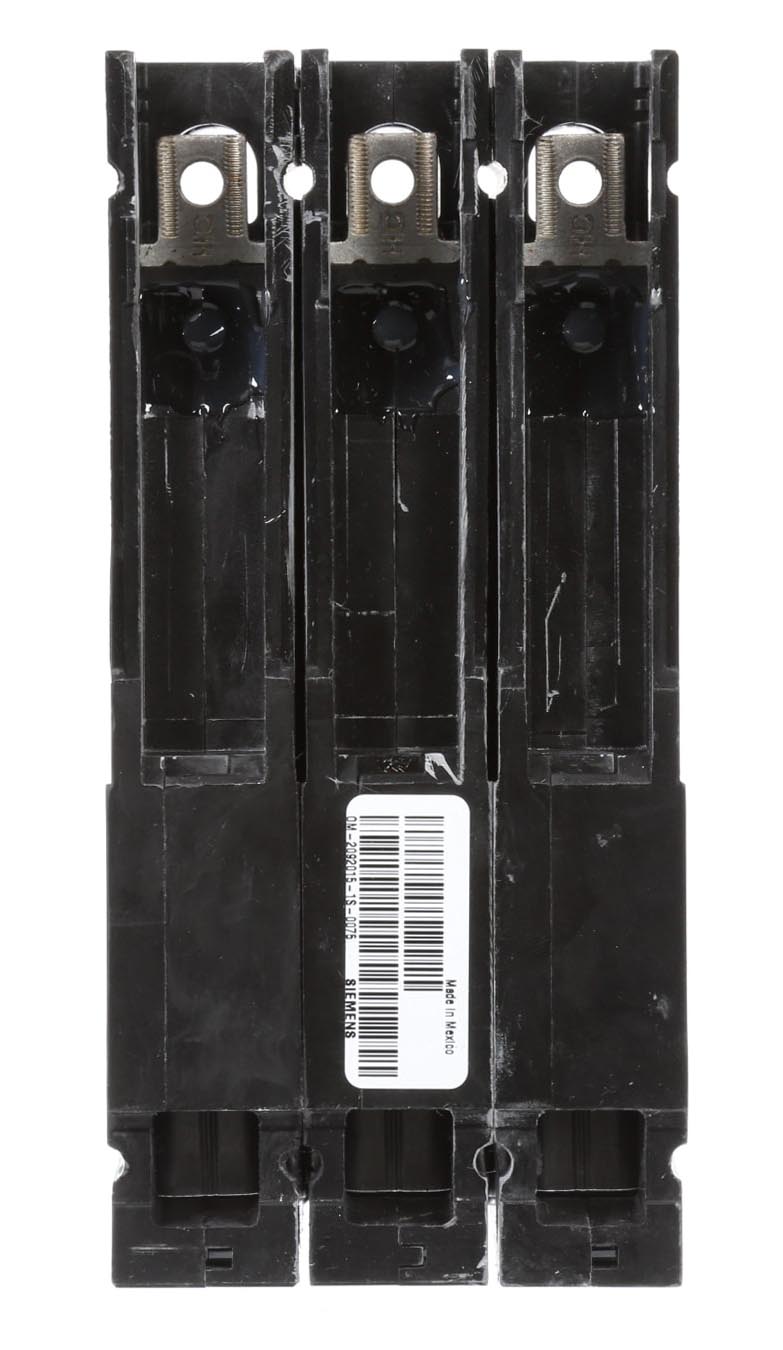

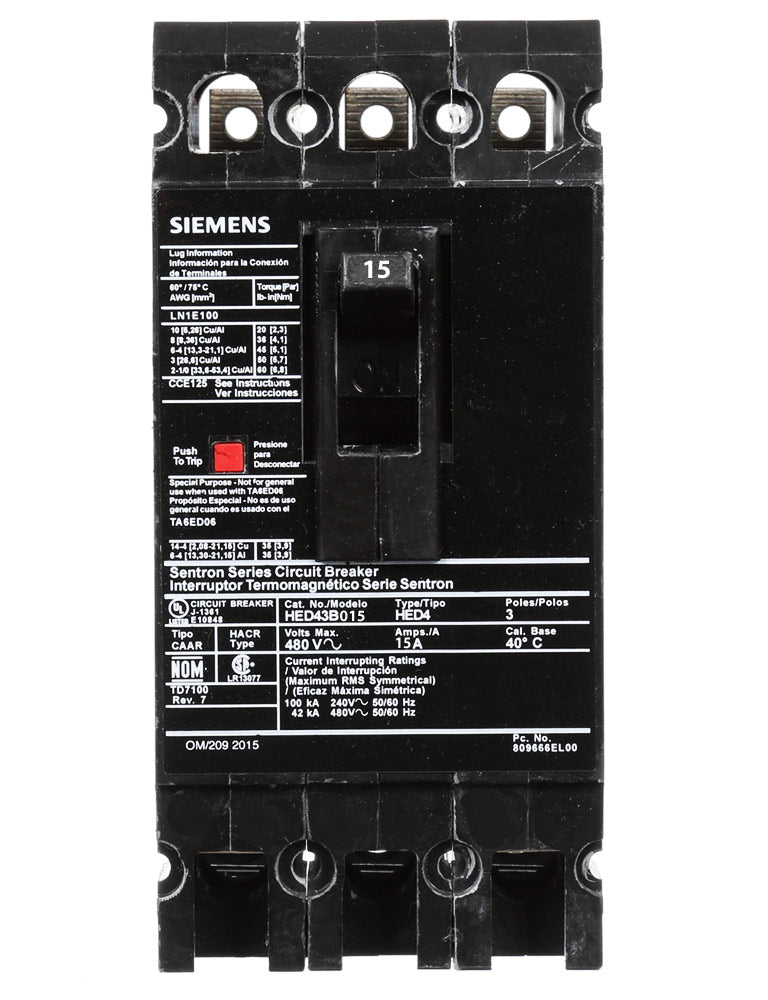

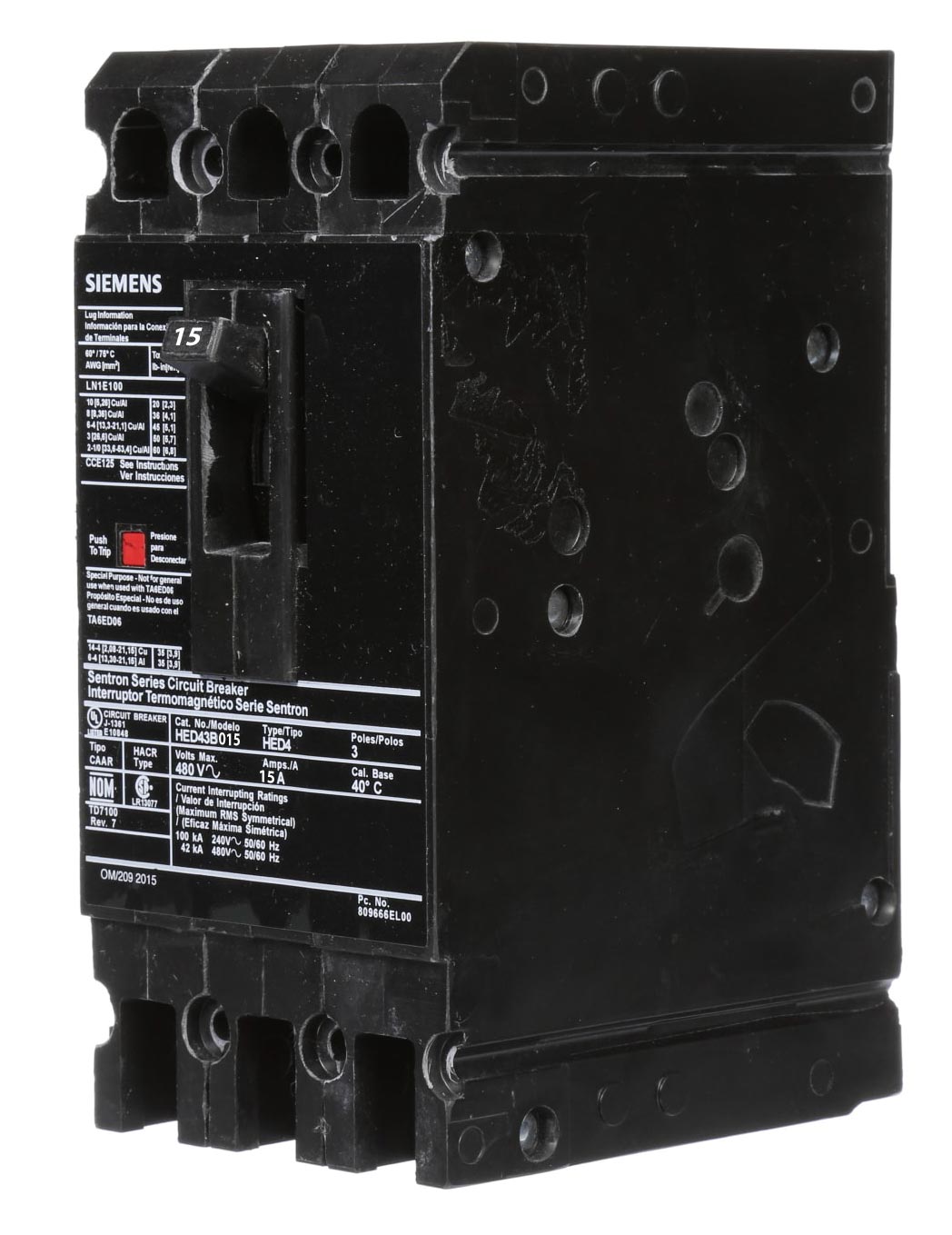

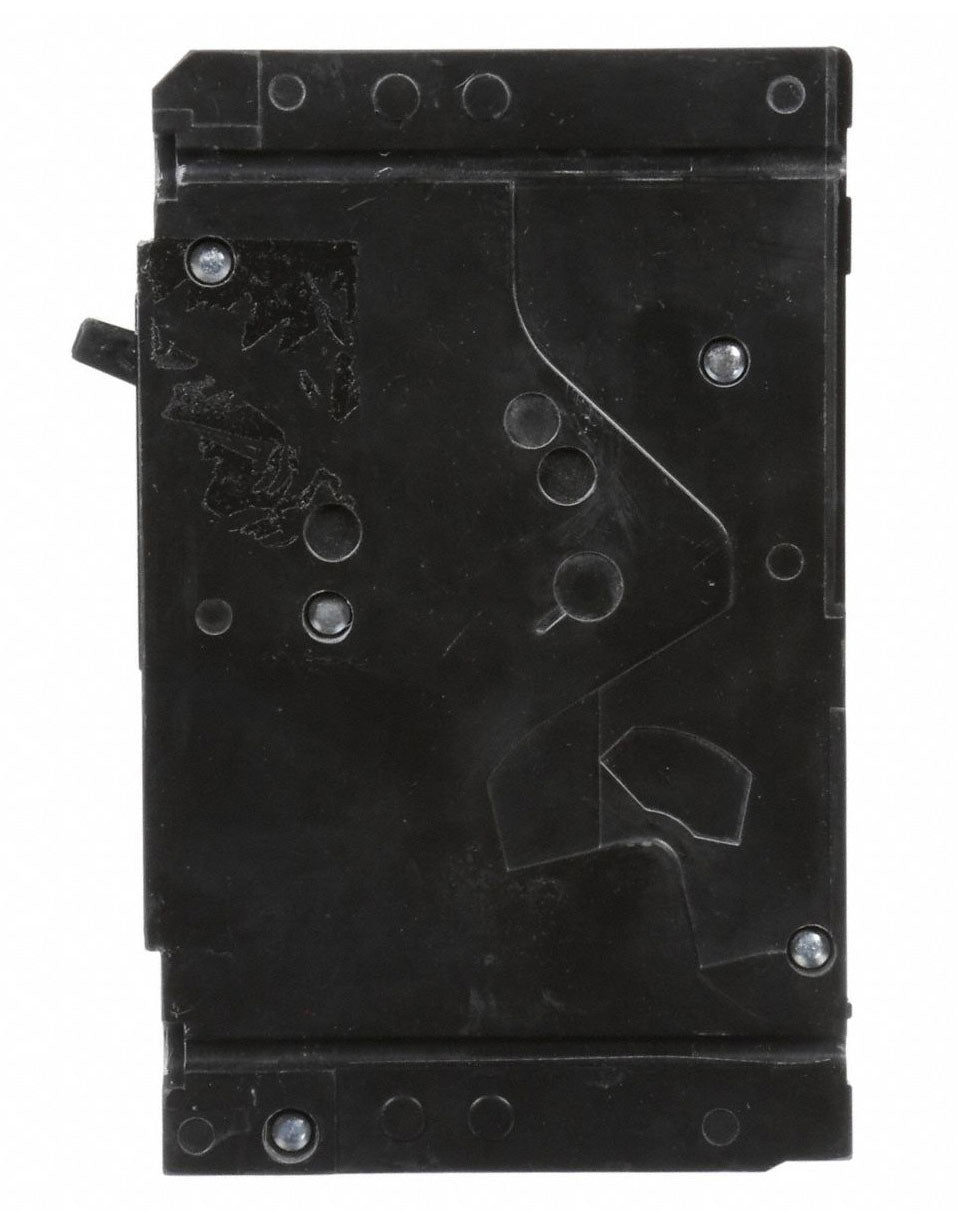

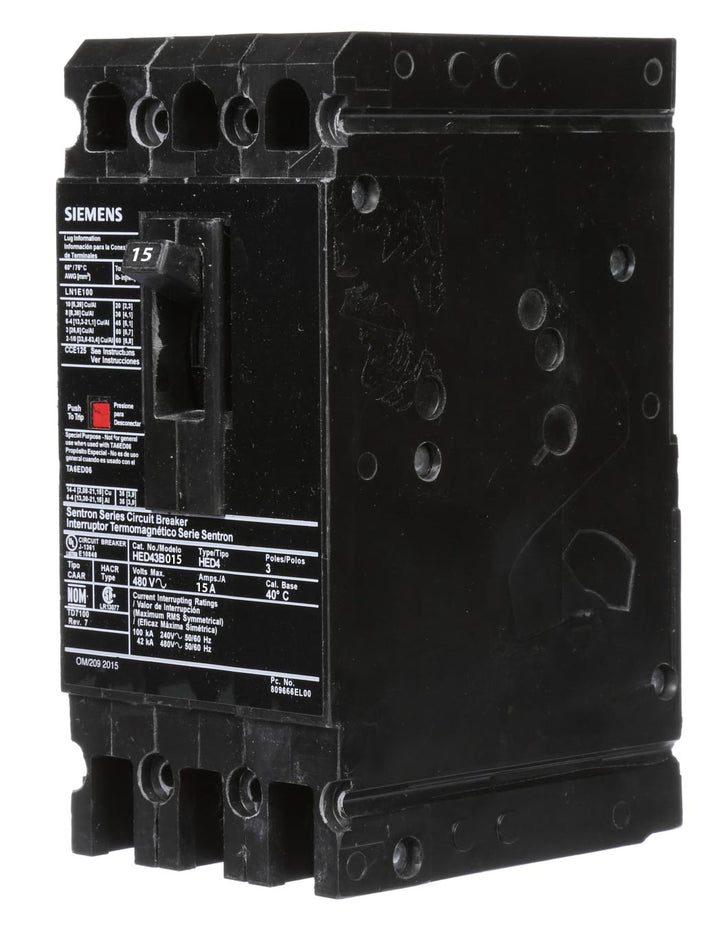

Siemens HED43B015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame measuring 3 inches by 6.34 inches and weighing 3.6 lb. This thermal-magnetic breaker is UL Listed and HACR Rated, ensuring compliance with industry safety standards for use in commercial and industrial applications such as SB switchboards and Sentron panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, High Interrupting Capacity
  • Voltage Rating: 480V AC
  • Current Rating: 15A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 42kA @ 480V
  • Phase Connection: 3-Phase, ABC
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Lug In Panelboard, Load Side Lug
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Dimensions: 3 in x 6.34 in
  • Weight: 3.6 lb
  • Standards & Certification: HACR Rated, UL Listed
  • Panel Type: Compatible with SB Switchboards and Sentron Panelboards
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210097
  • GTIN: 00783643210097
