Siemens
Price
Save $-1,093.91
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

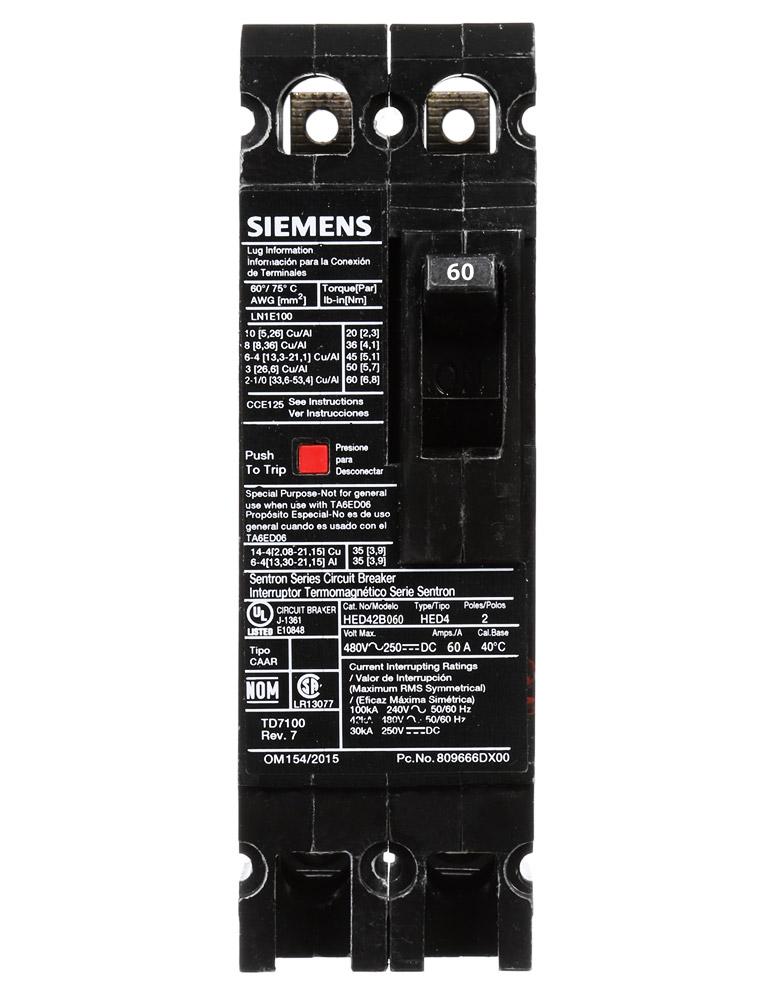

Siemens HED42B060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 60A current rating and a 480V voltage rating, housed within a compact 2" x 6.34" frame with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection functions. The breaker is constructed for durability with a 125A/ED frame size, features load-side lug connections compatible with 10 AWG to 1/0 AWG wire, and operates within a temperature range of -25 to 70 °C. It complies with industry standards, being UL Listed and HACR Rated for safety. This high-interrupting capacity (42kA @ 480V) breaker is typically applied in single-phase systems within Siemens Sentron panelboards and SB switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, High Interrupting Capacity
  • Voltage Rating: 480V AC
  • Current Rating: 60A
  • Dimensions: 2 in x 6.34 in
  • Weight: 2.8 lb
  • Standards: UL Listed, HACR Rated
  • Applications: Industrial panelboards and switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 42kA @ 480V
  • Connection: Lug In Panelboard, Load Side Lug
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/ED
  • Breaker Type: High Interrupting Capacity
  • MCM Size: Min. Wire Size 10 AWG, Max. Wire Size 1/0 AWG
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Certification: HACR Rated, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643210028
  • GTIN: 00783643210028
