Siemens HED41B020 - Molded Case Breaker 20A 277V (65kA AIC)
Siemens HED41B020 - Molded Case Breaker 20A 277V (65kA AIC)

Siemens HED41B020 - Molded Case Breaker 20A 277V (65kA AIC)

Siemens
Price
Save $1,426.52
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

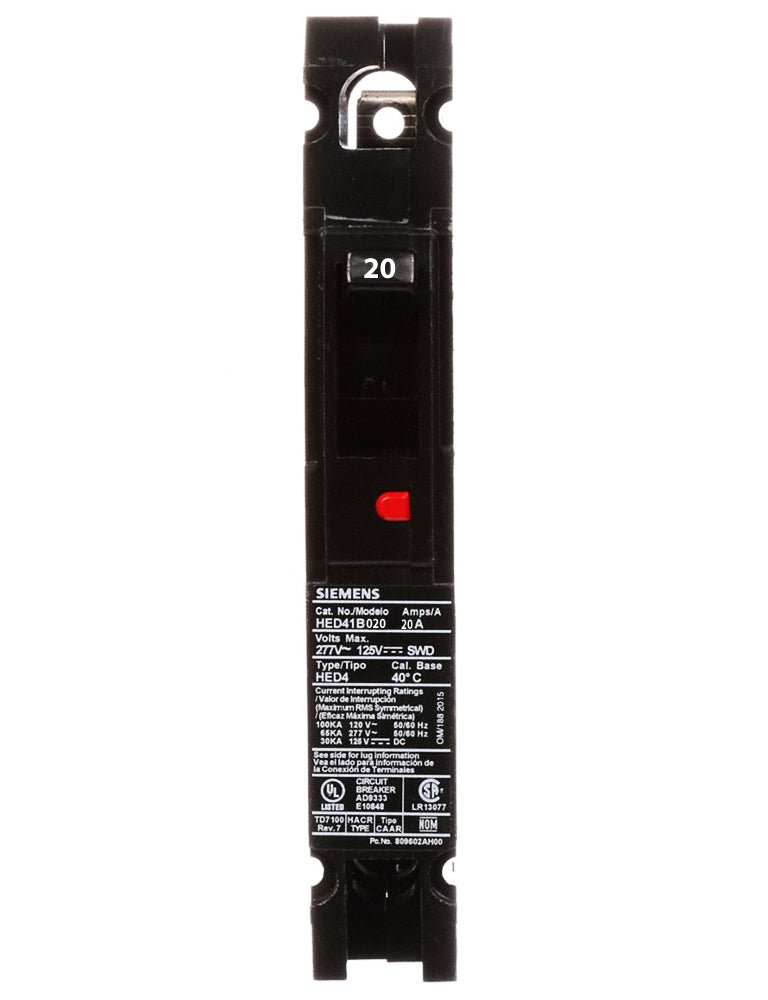

Siemens HED41B020 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It provides a 20A current rating and a 277V voltage rating for single-phase applications, featuring a compact design measuring 1" x 6.35" and a weight of 0.851 lb. The breaker is constructed with a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is built to operate within a temperature range of -25°C to 70°C. It complies with key industry standards including UL 489 and IEC 60947-2, ensuring safety and interoperability. This high-interrupting capacity (65kA @ 277V) breaker is typically applied in Siemens Sentron panelboards and SB switchboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, High Interrupting Capacity
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Dimensions: 1 in x 6.35 in (25.4 mm x 161.3 mm)
  • Standards: UL 489, IEC 60947-2
  • Applications: SB Switchboards, Sentron Panelboards, Industrial/Commercial Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 1
  • AIC Rating: 65kA @ 277V
  • Connection: Lug In Panelboard, Load Side Lug
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/ED
  • Breaker Type: High Interrupting Capacity
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 14 to AWG 10, AWG 12 to AWG 10, Cu/Al
  • MCM Size: Min. Wire Size 10 AWG, Max. Wire Size 4 AWG
  • Certification: IEC 60947-2, UL 489
  • Phase Connection: Any
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Family: Sentron Series
  • Weight: 0.851 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209824
  • GTIN: 00783643209824
