Square D
Price
Save $1,421.08
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

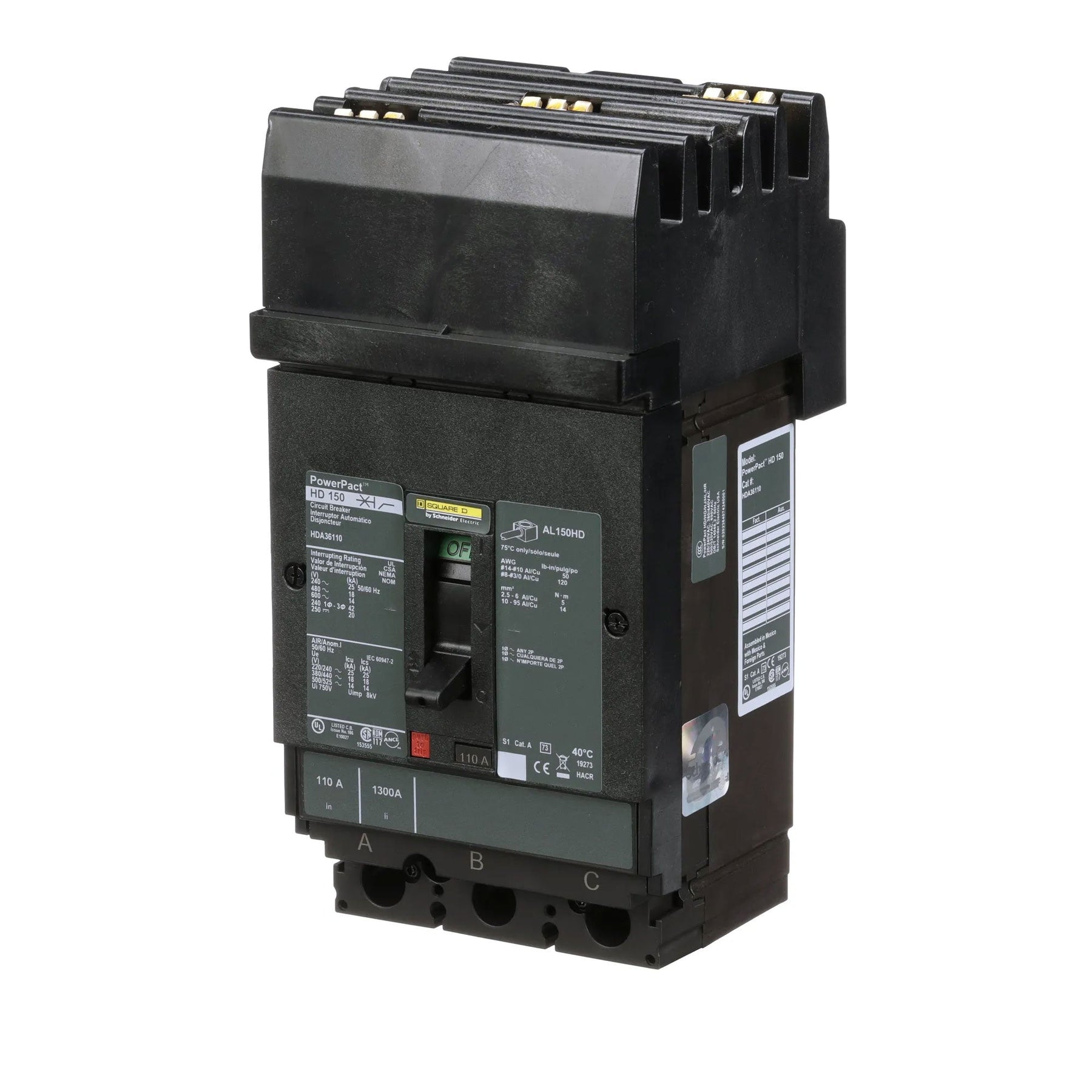

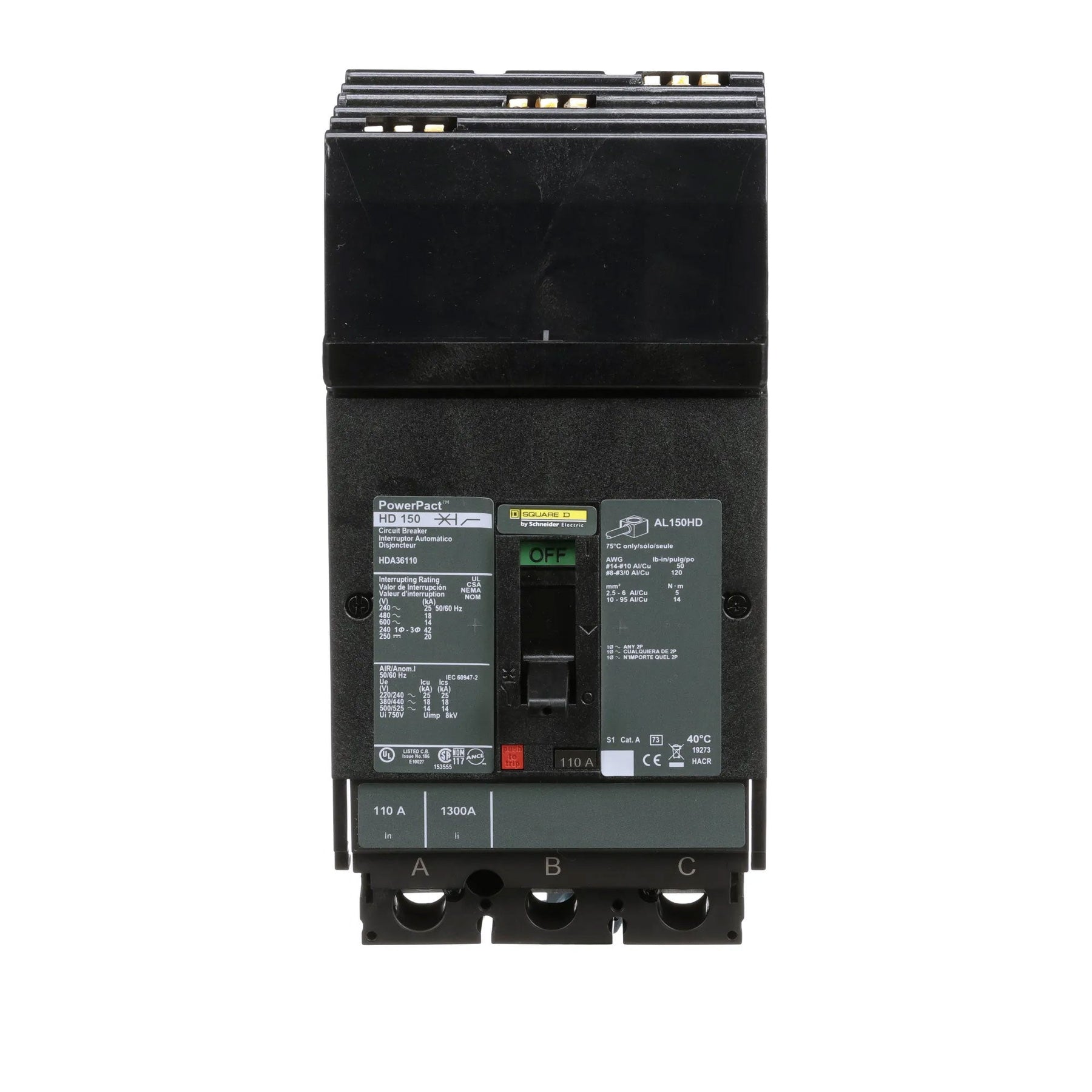

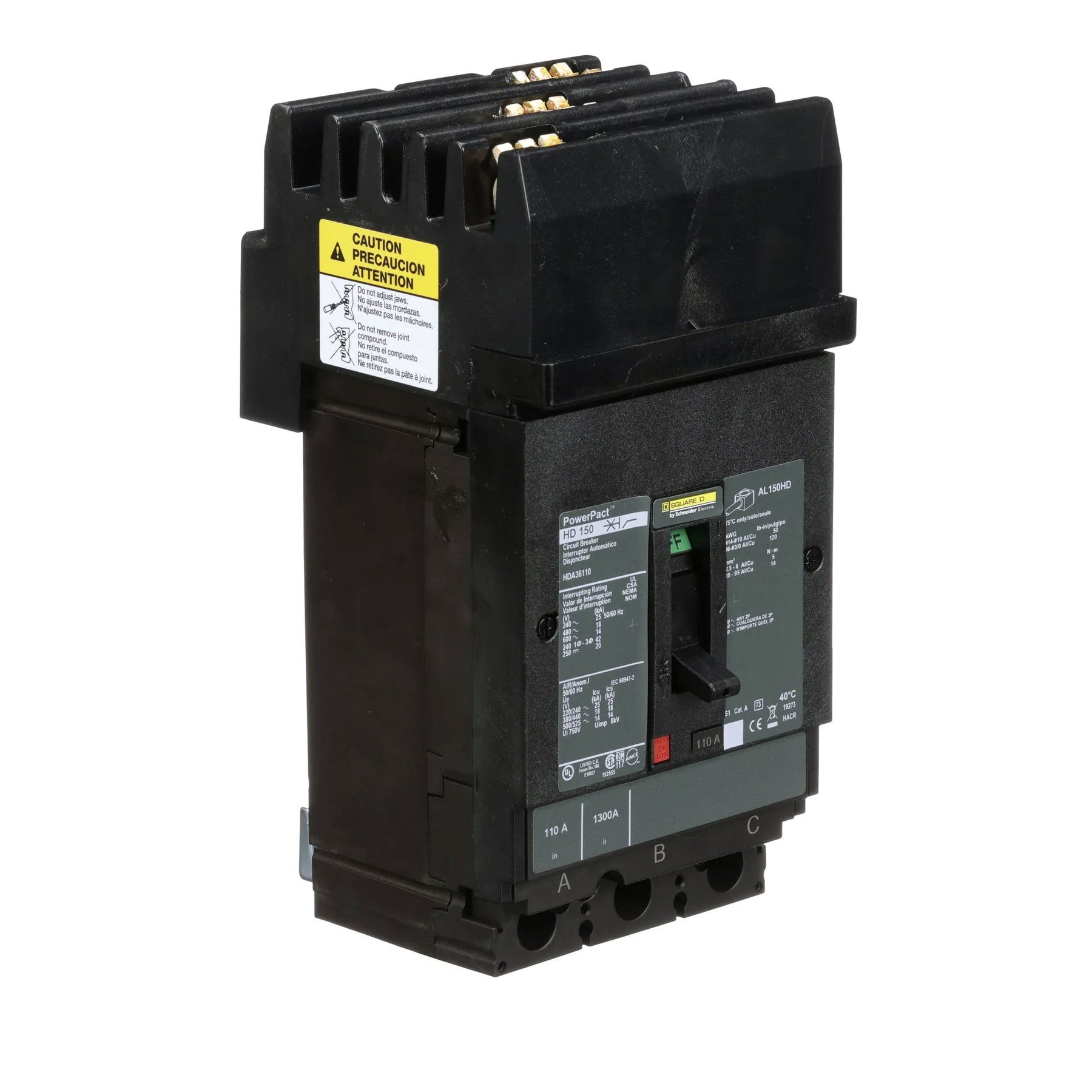

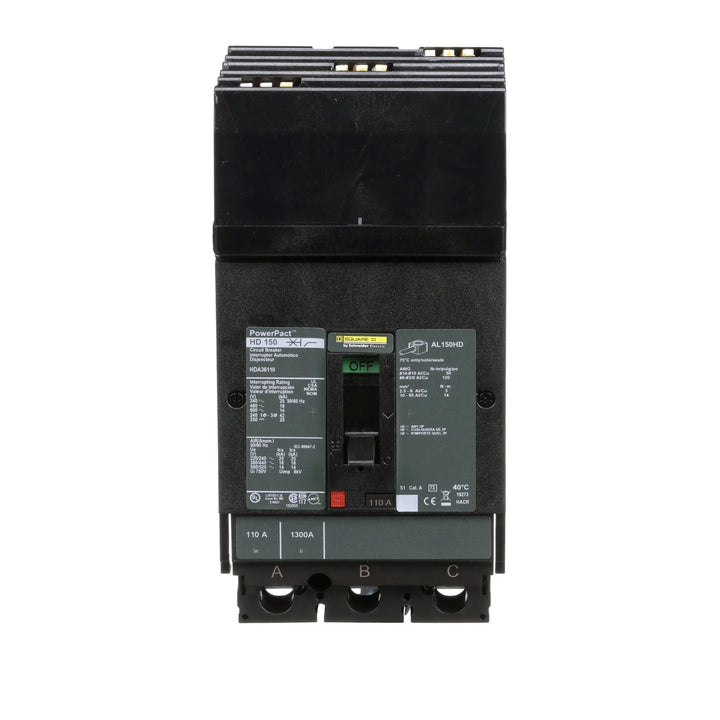

Square D HDA36110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.456 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection and is constructed for plug-in connection to I-Line panelboards with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial applications requiring an interrupting capacity of 18kA at 480V AC.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Frame Size: H
  • Poles: 3
  • AIC Rating: 18kA @ 480V AC

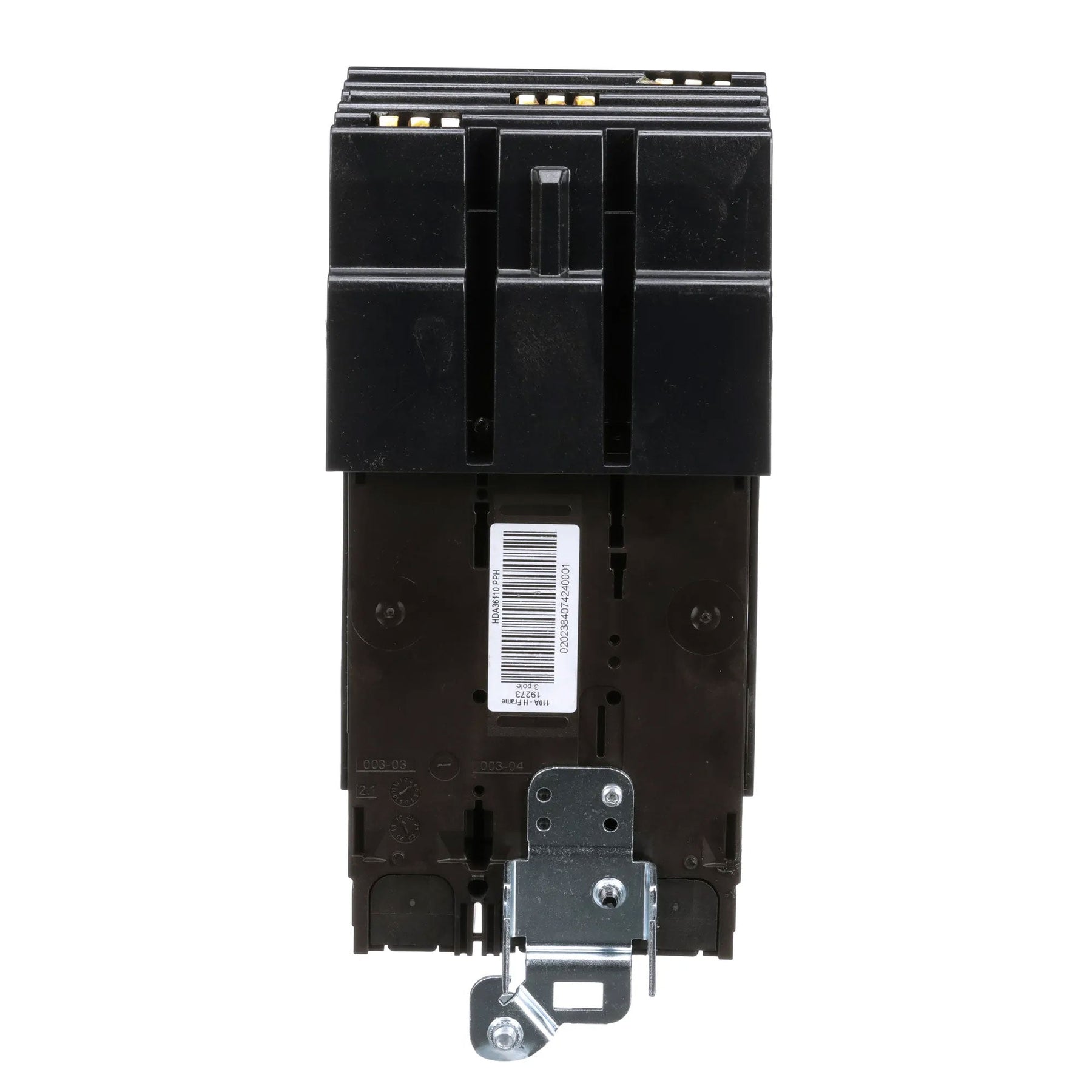

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Wire Size Range: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Trip Functions: Long Time and Instantaneous
  • Phase Connection: ABC
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM

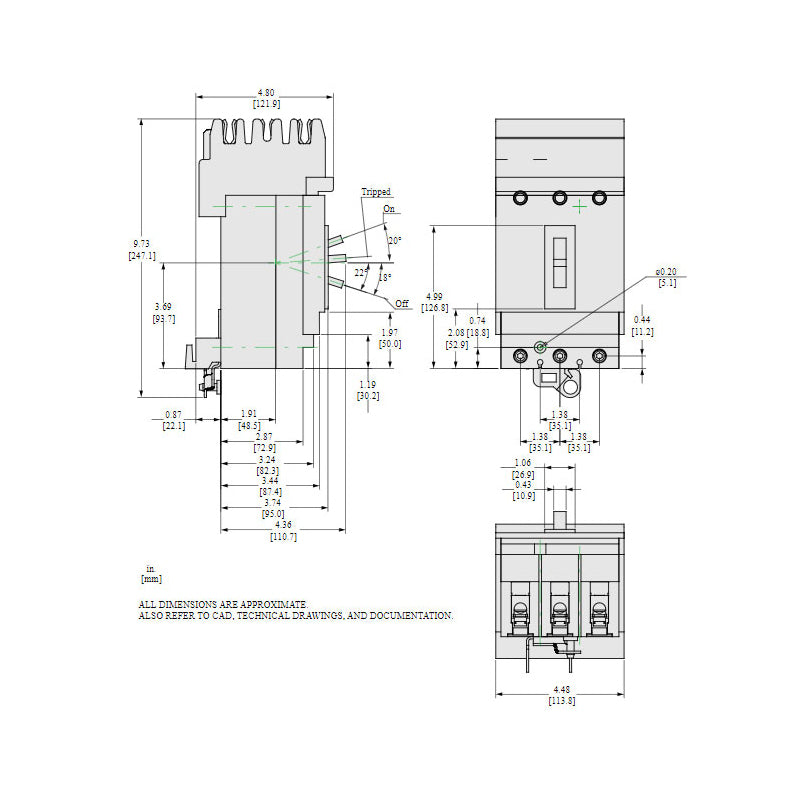

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 5.456 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901422273
  • GTIN: 00785901422273
