Hubbell HBL560C7W - 60A 277/480V Watertight Connector
Hubbell HBL560C7W - 60A 277/480V Watertight Connector

Hubbell HBL560C7W - 60A 277/480V Watertight Connector

Hubbell
Price
Save $194.22
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

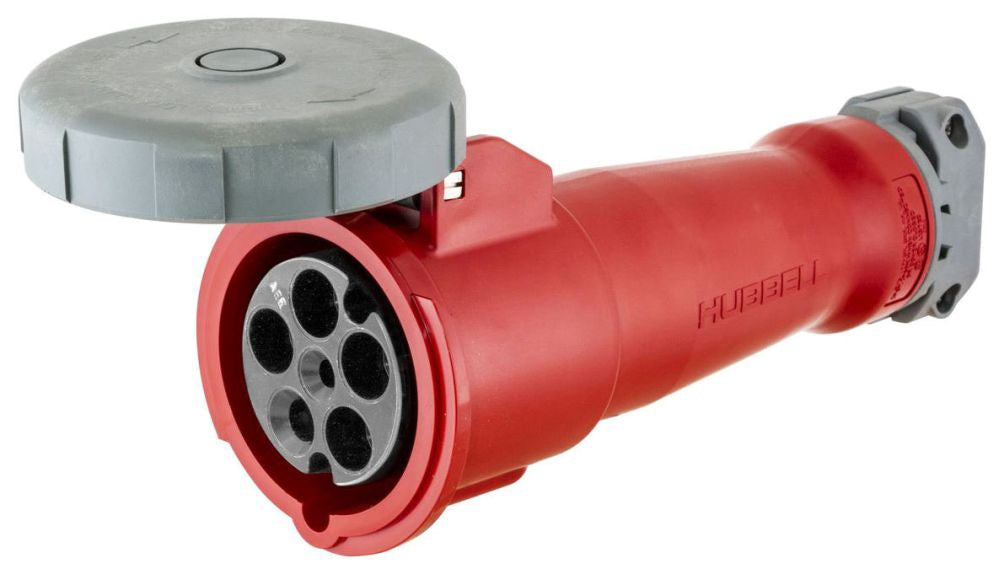

Hubbell HBL560C7W is a watertight pin and sleeve connector body designed for industrial power distribution in harsh environments. This heavy-duty female connector is rated for 60 amps continuous current at 277/480 VAC on 3-phase wye systems, with certified current interrupting capability at full rated current. The device features a rugged Zytel ST801 nylon housing with a self-closing gasketed cover, providing IP67 watertight protection, and includes pressure terminal screws for secure wiring. It meets UL and CSA certifications and operates reliably in temperatures from -40°C to 75°C. Typical applications include agriculture, chemical processing, and construction sites requiring durable, weather-resistant power connections.

Key Features & Specifications
  • Type: Plugs Recep
  • Amperage: 60 Amps
  • Voltage Rating: 277/480 VAC 3-Phase Wye
  • Poles: 4
  • Wires: 5 (including ground)
  • Mounting Type: Female Connector Body
  • Interrupt Rating: Certified for full rated current interrupting
  • Material: Zytel ST801 Nylon
  • Ingress Protection: IP67 Watertight
  • Operating Temperature: -40°C to 75°C
  • Certifications: UL, CSA
  • Color: Red
  • Terminal Type: Pressure Terminal Screws
  • Dimensions: 11.15 in L x 5.1 in W
  • Weight: 5.19 lb


Product Identification
  • UPC: 783585405667
  • GTIN: 00783585405667
