Hubbell HBL5100R9W - 100A 4-Pole Watertight Receptacle
Hubbell HBL5100R9W - 100A 4-Pole Watertight Receptacle

Hubbell HBL5100R9W - 100A 4-Pole Watertight Receptacle

Hubbell
Price
Save $205.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

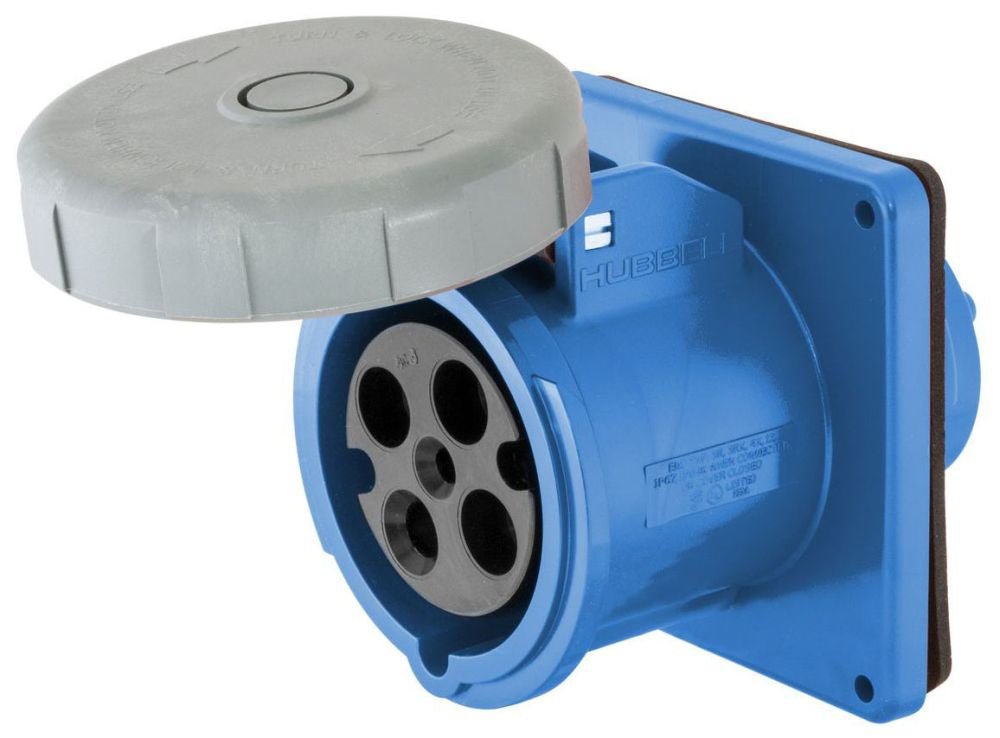

Hubbell HBL5100R9W is an industrial-grade, watertight IEC pin and sleeve receptacle designed for high-ampacity three-phase power distribution in demanding environments. This heavy-duty device is rated for 100A at 120/208V AC, three-phase Y, and is certified for current interrupting at full rated current. The receptacle features a rugged Zytel 101 Nylon housing with a self-closing gasketed cover, measures 5-1/2 inches in both length and width, and weighs 5.19 lb. It complies with UL1682, IP67, IEC 60309-1, and RoHS standards, ensuring superior moisture and environmental resistance. Typical applications include industrial power distribution requiring reliable, watertight connections in harsh conditions.

Key Features & Specifications
  • Type: Plugs Recep
  • Amperage: 100A
  • Voltage Rating: 120/208YV
  • Poles: 4-Pole
  • Number of Wires: 5-Wire (including ground)
  • Mounting Type: Screw mount, single flanged
  • Interrupt Rating: Certified for current interrupting at full rated current
  • Series/Frame: HBL Heavy Duty
  • Certifications: UL1682 listed, IP67, IEC 60309-1, RoHS compliant
  • Wire Size: #3 AWG to #1/0 AWG
  • Housing Material: Zytel 101 Nylon
  • Operating Temperature: -40°C to 75°C
  • Dimensions: 5-1/2 in L x 5-1/2 in W
  • Weight: 5.19 lb


Product Identification
  • UPC: 783585405124
  • GTIN: 00783585405124
