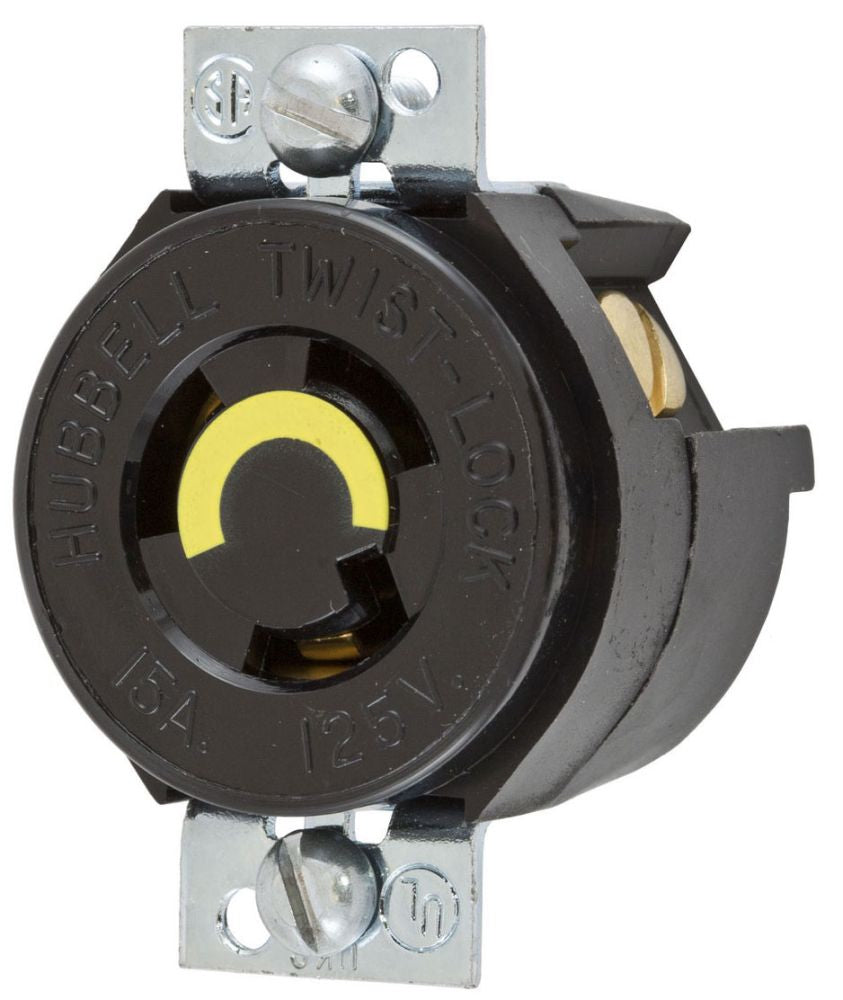

Hubbell HBL4713A - Locking Receptacle 15A 125V NEMA L5-15R
Hubbell HBL4713A - Locking Receptacle 15A 125V NEMA L5-15R

Hubbell HBL4713A - Locking Receptacle 15A 125V NEMA L5-15R

Hubbell
Price
Save $-33.02
/
Condition
  • Limited availability. Call +1-833-289-3873 to check stock. We'll confirm stock immediately after your order.
  • Backordered, shipping soon

Call for Price
Hubbell HBL4713A is a heavy-duty locking panel mount receptacle engineered to provide secure, reliable power connections in demanding industrial environments. This single-phase grounding receptacle is rated for 15 amperes at 125 volts AC, featuring a NEMA L5-15R configuration with twist-lock technology for enhanced safety. The unit is constructed with reinforced black nylon and includes all brass contacts, a brass mounting strap, and a stainless steel grounding clip, weighing 5.19 lb. It complies with UL 498, CSA C22.2 No. 42, and RoHS standards, with an IP20 and NEMA 4X/12 environmental rating. Typical applications include heavy-duty industrial settings where a durable, secure power connection is required.

Key Features & Specifications
  • Type: Locking Panel Mount Receptacle
  • Amperage Rating: 15 A
  • Voltage Rating: 125 VAC
  • Configuration: 2-Pole, 3-Wire Grounding
  • NEMA Rating: L5-15R
  • Mounting Type: Panel Mount, Screw Mount
  • Material: Reinforced Black Nylon
  • Terminal Type: Screw
  • Horsepower: 1/2 hp
  • Temperature Range: -40 degrees C to 75 degrees C
  • Dielectric Strength: 2,000V Minimum
  • Certifications: UL 498, CSA C22.2 No. 42, RoHS Compliant
  • Environmental Rating: IP20, NEMA 4X/12
  • Weight: 5.19 lb
