Hubbell HBL320R7W - IEC Pin & Sleeve Receptacle 20A 480V
Hubbell HBL320R7W - IEC Pin & Sleeve Receptacle 20A 480V

Hubbell HBL320R7W - IEC Pin & Sleeve Receptacle 20A 480V

Hubbell
Price
Save $96.07
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

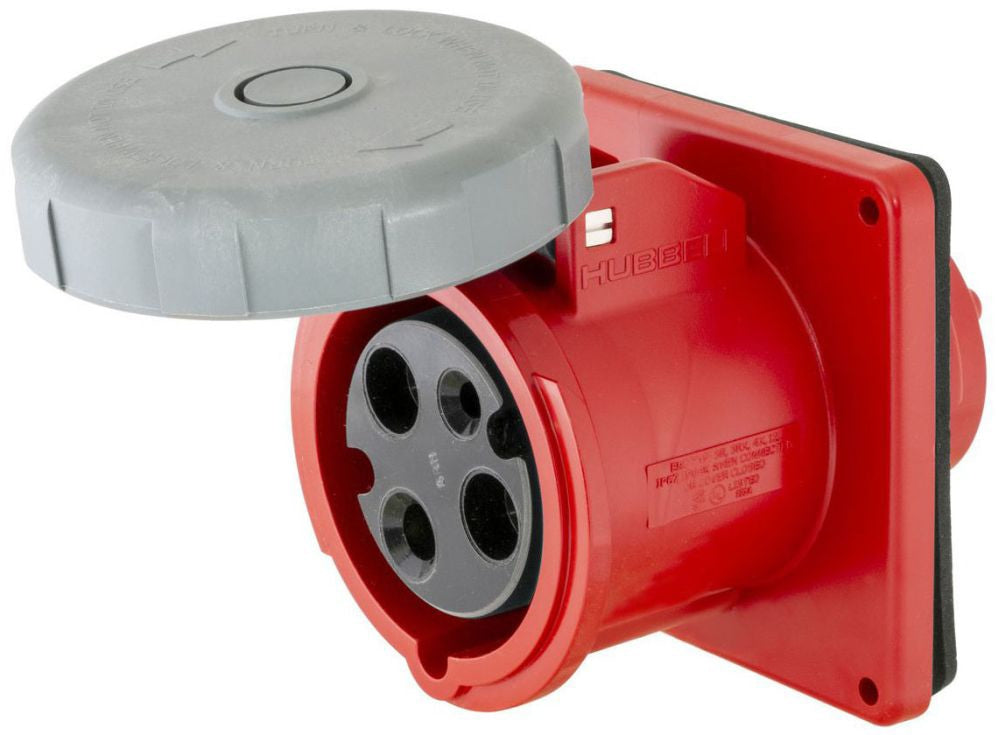

Hubbell HBL320R7W is a watertight IEC pin and sleeve receptacle designed for reliable power connection in demanding industrial environments. This 20 amp, 480 volt, 2-pole 3-wire device provides secure electrical performance. The receptacle features a rugged thermoplastic housing with a thermoset polyester contact carrier for high resistance to electrical tracking and temperature, measures 3-3/4 inches in both length and width, and weighs 5.19 lb. It is compliant with IEC 60309 standards and carries IP67, UL Type 4X, 12, and IP69k environmental ratings for watertight protection. Typical applications include heavy-duty North American industrial settings requiring a durable, screw-mounted wiring device with pressure terminal screws for wire sizes from #14 AWG to #10 AWG.

Key Features & Specifications
  • Type: Plugs Recep
  • Amperage Rating: 20 A
  • Voltage Rating: 480 VAC
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Mounting Type: Screw Mounting
  • Material: Thermoplastic housing with thermoset polyester contact carrier
  • Watertight Rating: IP67, UL Type 4X, 12, IP69k
  • Connection Type: Pressure Terminal Screws
  • Wire Size Range: #14 AWG to #10 AWG
  • Color: Red
  • Industry Standard: IEC 60309 compliant
  • Dimensions: 3-3/4 in L x 3-3/4 in W
  • Weight: 5.19 lb


Product Identification
  • UPC: 783585403458
  • GTIN: 0783585403458
