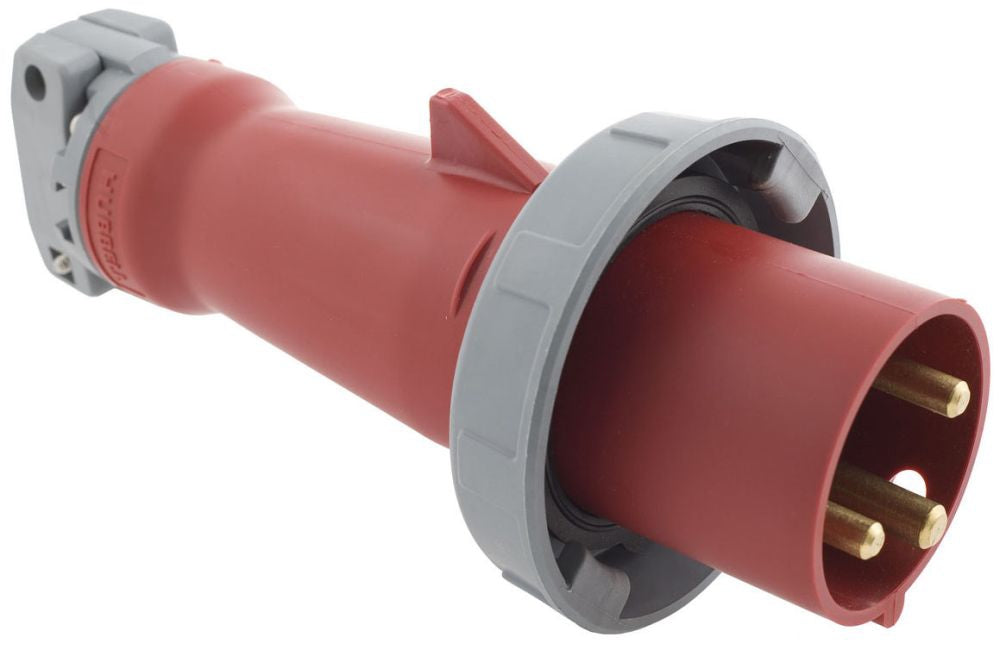

Hubbell HBL320P7W - Industrial Plug 480V 20A Locking
Hubbell HBL320P7W - Industrial Plug 480V 20A Locking

Hubbell HBL320P7W - Industrial Plug 480V 20A Locking

Hubbell
Price
Save $117.57
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Hubbell HBL320P7W is a heavy-duty industrial wiring device designed for reliable power distribution in demanding environments. This plug and receptacle combination is rated for 480V AC and 20A, ensuring robust performance for high-voltage applications. Constructed with a durable thermoplastic body measuring 2.87 inches in diameter and 6.61 inches in length, it features a NEMA configuration for secure locking connections and weighs 5.19 lb. The device complies with UL and CSA standards, making it suitable for use in manufacturing plants, data centers, and commercial facilities requiring safe, weather-resistant power connections.

Key Features & Specifications
  • Type: Heavy-duty industrial plug and receptacle, thermoplastic construction, locking mechanism
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Dimensions: 2.87 in Dia x 6.61 in L
  • Weight: 5.19 lb
  • Standards: UL Listed, CSA Certified
  • Applications: Manufacturing plants, data centers, commercial facilities
  • Configuration: NEMA locking
  • Connection: Terminal screw
  • Poles: 3-pole, 4-wire grounding
  • Phase: 3-phase
  • Nema Rating: NEMA L21-20
  • Installation Type: Flush or surface mount
  • Certification: UL, CSA
  • Frequency Rating: 60 Hz
  • Wire Size: 14-10 AWG
  • Terminal Connection: Screw terminals
  • Item QTY: 1


Product Identification
  • UPC: 783585403410
  • GTIN: 00783585403410
