Hubbell HBL3100B6W - 100A 250V AC Flanged Inlet
Hubbell HBL3100B6W - 100A 250V AC Flanged Inlet

Hubbell HBL3100B6W - 100A 250V AC Flanged Inlet

Hubbell
Price
Save $423.09
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

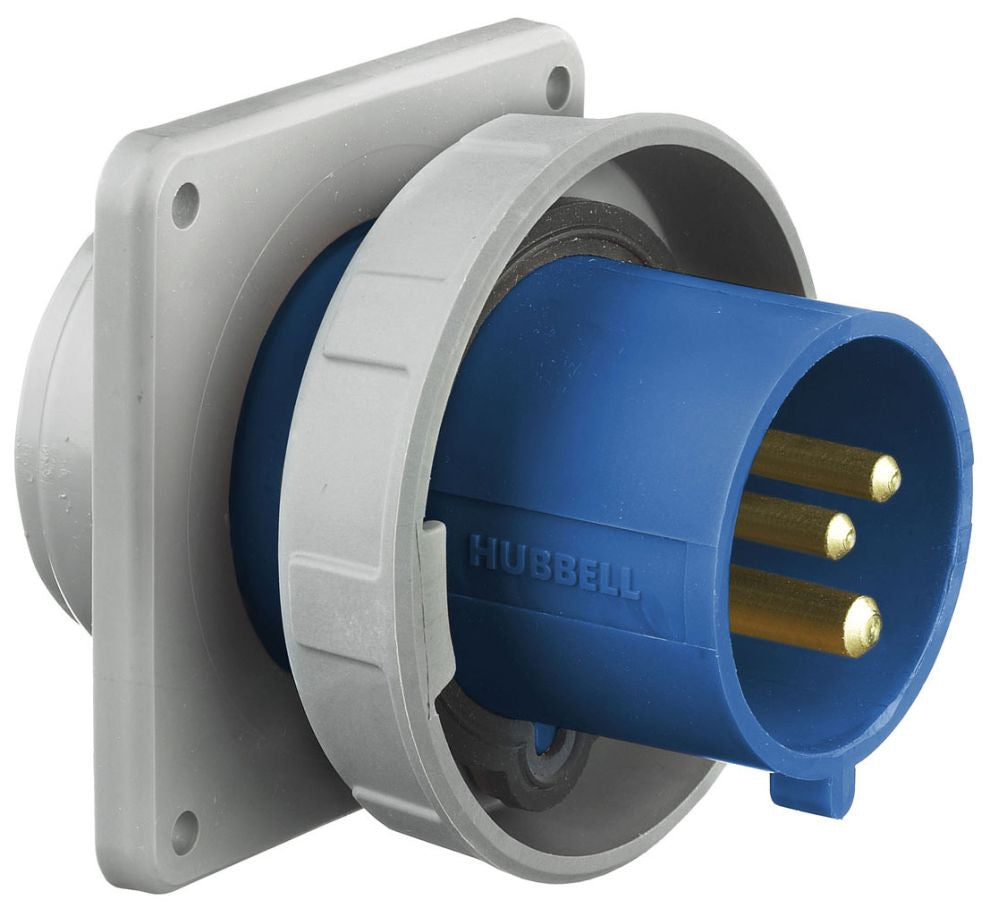

Hubbell HBL3100B6W is an industrial-grade, watertight IEC pin and sleeve male flanged inlet designed for high-ampacity power distribution in demanding environments. This heavy-duty device is rated for 100A at 250V AC and features a rugged thermoplastic housing with solid one-piece pins and a high-resistance thermoset polyester contact carrier for reliable connectivity and high-temperature performance. The unit measures 5-1/2 inches in height and width, weighs 5.19 lb, and is engineered for superior strain relief with a screw mount configuration. It is certified to UL 1682 and CSA C22.2 standards, ensuring full-rated current interrupting capability and IP67-rated watertight protection. Typical applications include industrial machinery, manufacturing facilities, and heavy equipment requiring a durable, weather-resistant power connection.

Key Features & Specifications
  • Type: IEC pin and sleeve male flanged inlet
  • Amperage: 100A
  • Voltage: 250V AC
  • Poles: 2
  • Mounting Type: Screw mount
  • Interrupt Rating: Certified for current interrupting at full rated current
  • Series/Frame: HBL
  • Certifications: UL 1682, CSA C22.2
  • Wire Size: 3 AWG to 1/0 AWG
  • Color: Blue
  • Watertight: Yes, IP67 rated
  • Material: Thermoplastic
  • Dimensions: 5-1/2 in H x 5-1/2 in W
  • Weight: 5.19 lb


Product Identification
  • UPC: 783585403014
  • GTIN: 0783585403014
