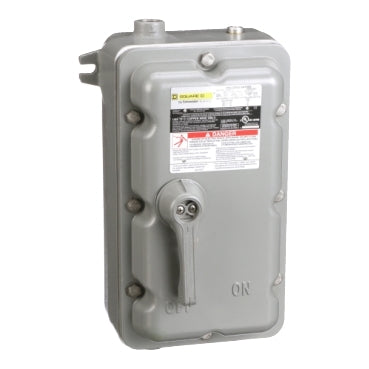

Square D H60XFA - Non-Fusible Disconnect Switch, 600V 60A 3-Pole

Square D
Price
Save $-2,302.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H60XFA is a non-fusible safety disconnect switch designed for providing a visible means of isolation and load break protection in industrial power distribution systems. It is rated for 600V AC and 60A in a three-phase configuration, housed in a robust enclosure measuring 404.62 mm H x 250.70 mm W x 176.78 mm D (15.93 in x 9.87 in x 6.96 in) and weighing 26.451 lb. The switch is UL and CSA certified, meeting NEMA 9-Jul standards, and is engineered for reliable service in demanding applications such as motor control centers and panelboards, where it is compatible with Series E, ED frame equipment. It features a three-pole, single configuration with a visible blade gap and accepts copper conductors from AWG 14 to AWG 3 or aluminum from AWG 12 to AWG 3.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, H-Type, Visible Blade Gap
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Dimensions: 404.62 mm H x 250.70 mm W x 176.78 mm D (15.93 in x 9.87 in x 6.96 in)
  • Weight: 26.451 lb
  • Wire Size: AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum
  • Standards: UL, CSA, NEMA 9-Jul
  • Switch Style: Non-Fusible
  • Compatible Frames: Series E, ED
  • Family: Series E
  • Item Subcategory: Disconnect


Product Identification
  • UPC: 785901327561
  • GTIN: 00785901327561
