Square D H367R - Fusible Safety Switch 800A 600V (3-Pole, NEMA 3R)
Square D H367R - Fusible Safety Switch 800A 600V (3-Pole, NEMA 3R)
Square D H367R Disconnect Switch (Fusible) - Essential Electric Supply
Square D H367R - Fusible Safety Switch 800A 600V (3-Pole, NEMA 3R)
Square D H367R - Fusible Safety Switch 800A 600V (3-Pole, NEMA 3R)

Square D H367R - Fusible Safety Switch 800A 600V (3-Pole, NEMA 3R)

Square D
Price
Save $5,318.70
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

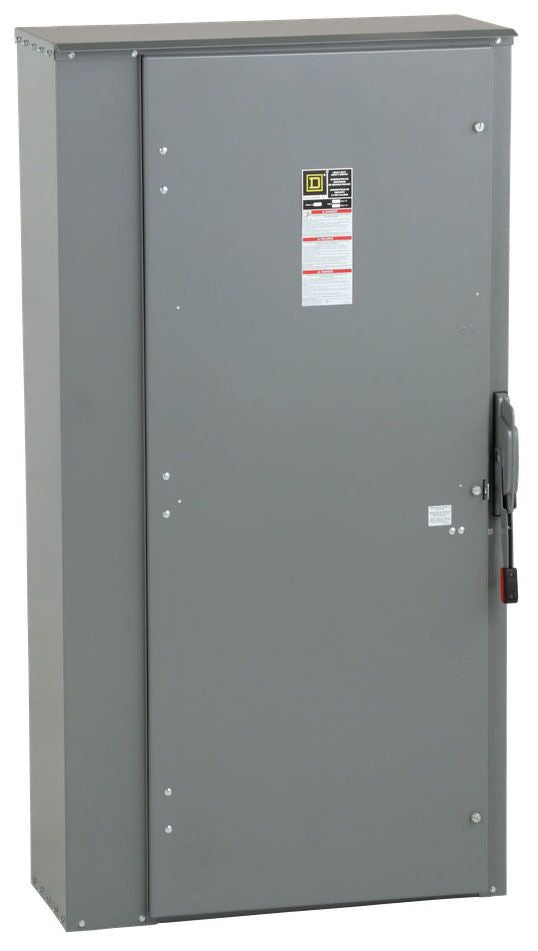

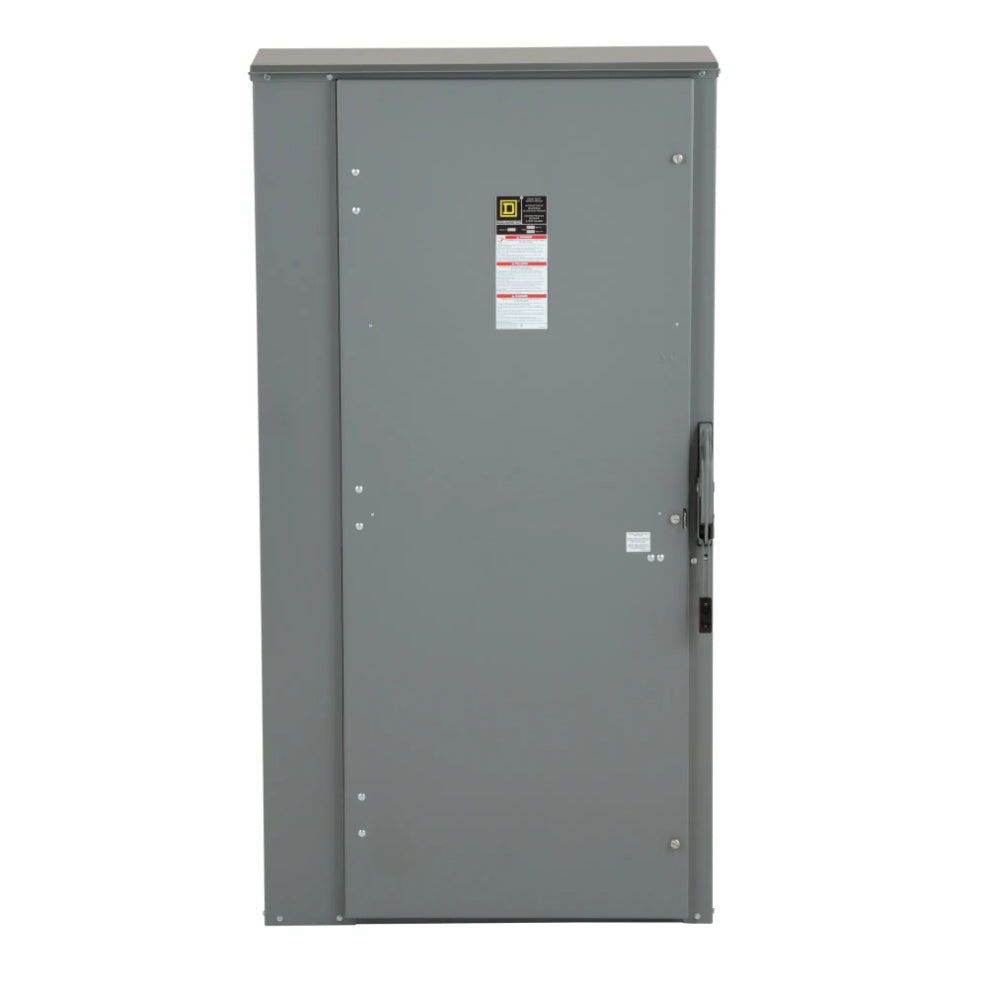

Square D H367R is a heavy-duty fusible safety switch designed for the main disconnection and circuit protection of high-power three-phase industrial equipment. It provides a 600V AC/DC voltage rating and an 800A current rating within a robust, NEMA 3R-rated enclosure for outdoor use. The unit features a three-pole, single-configuration design with a 200kA interrupting capacity at 600V and accepts Class R or L fuses for flexible protection. This UL-listed disconnect switch is constructed for demanding applications such as industrial control panels, large motor disconnects, and main service entrance equipment, ensuring reliable operation and safety compliance.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC/DC
  • Current Rating: 800A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R, L
  • Wire: 3
  • NEMA Rating: NEMA 3R
  • Certification: UL Listed
  • Dimensions: 9.13 in H x 36.62 in W x 17.75 in D
  • Weight: 357.001 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 78590182307
  • GTIN: 00783643150010
