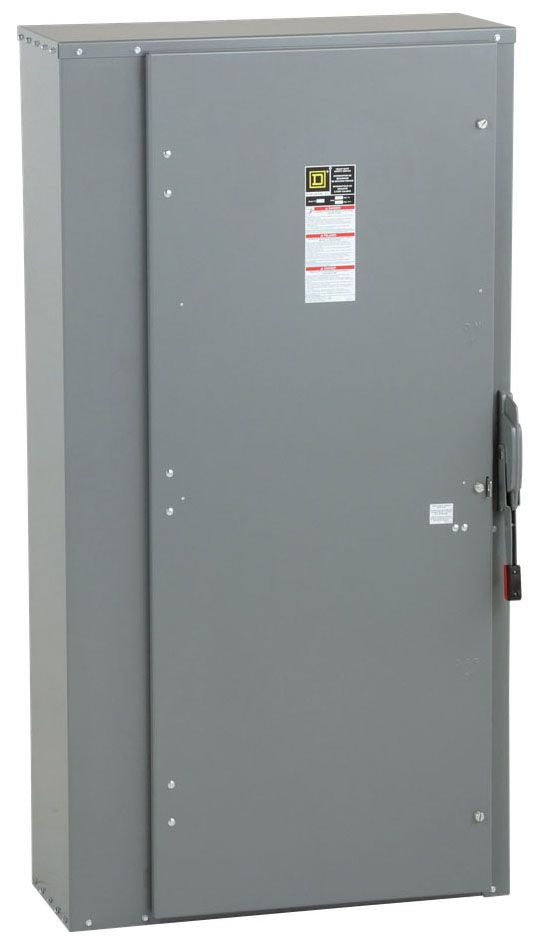

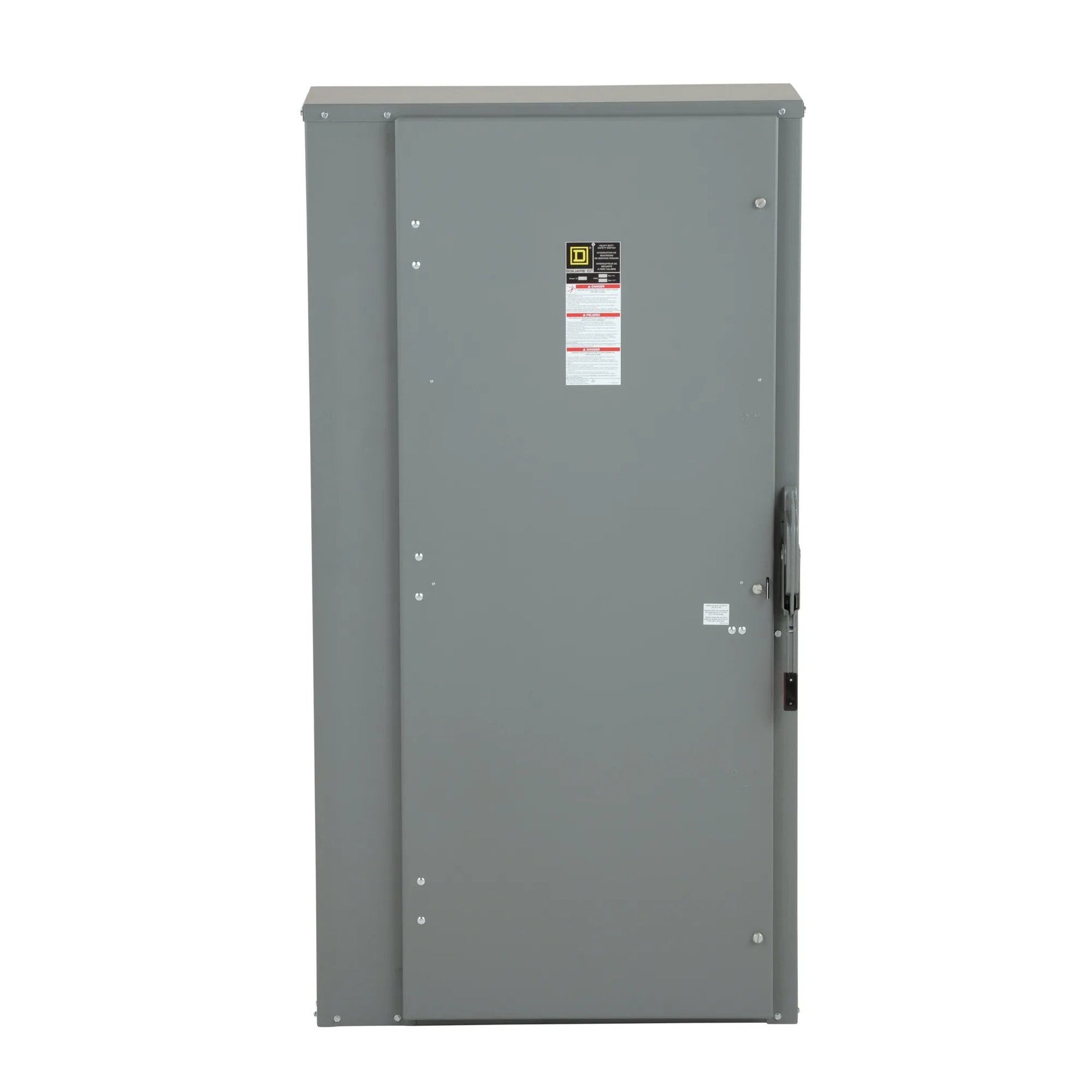

Square D H367N - Fusible Disconnect Switch 800A@600V (200kA AIC)

Square D H367N is a fusible safety disconnect switch designed for high-current industrial power distribution systems. This UL-listed, NEMA 1-rated switch handles 800A at 600V AC/DC with a 200kA interrupting capacity, featuring a rugged 3-pole single configuration in a 36.62" x 17.75" x 69.13" enclosure weighing 169.19 lb. Compliant with UL standards, it accepts Class R/L fuses for motor control centers and heavy machinery applications requiring reliable circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series E, Type H construction
• Voltage Rating: 600V AC/DC
• Current Rating: 800A
• Dimensions: 36.62" W x 17.75" D x 69.13" H
• Standards: UL Listed, NEMA 1 enclosure
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R, L
• Weight: 169.19 lb
• Country of Origin: United States

Product Identification

• UPC: 785901442417
• GTIN: 00785901000000
