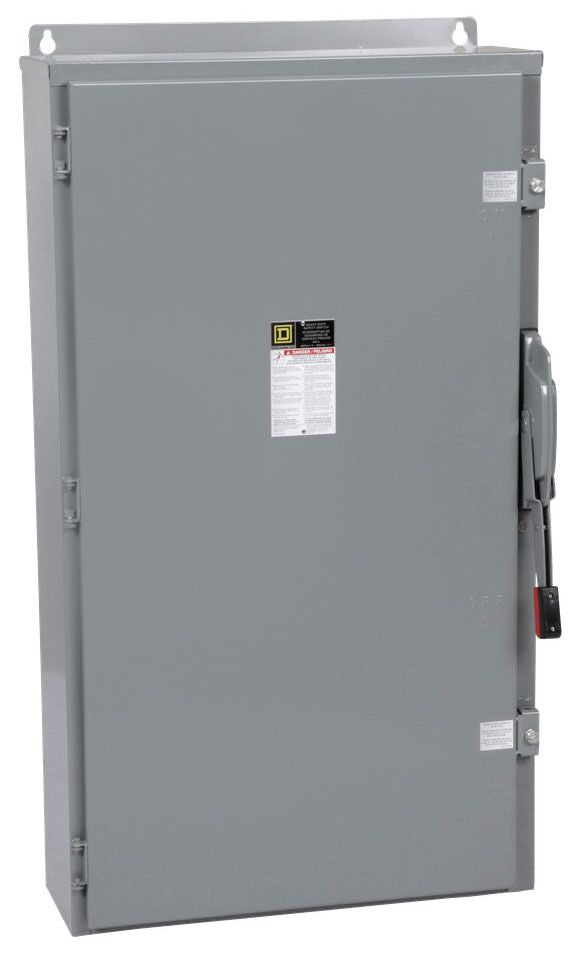

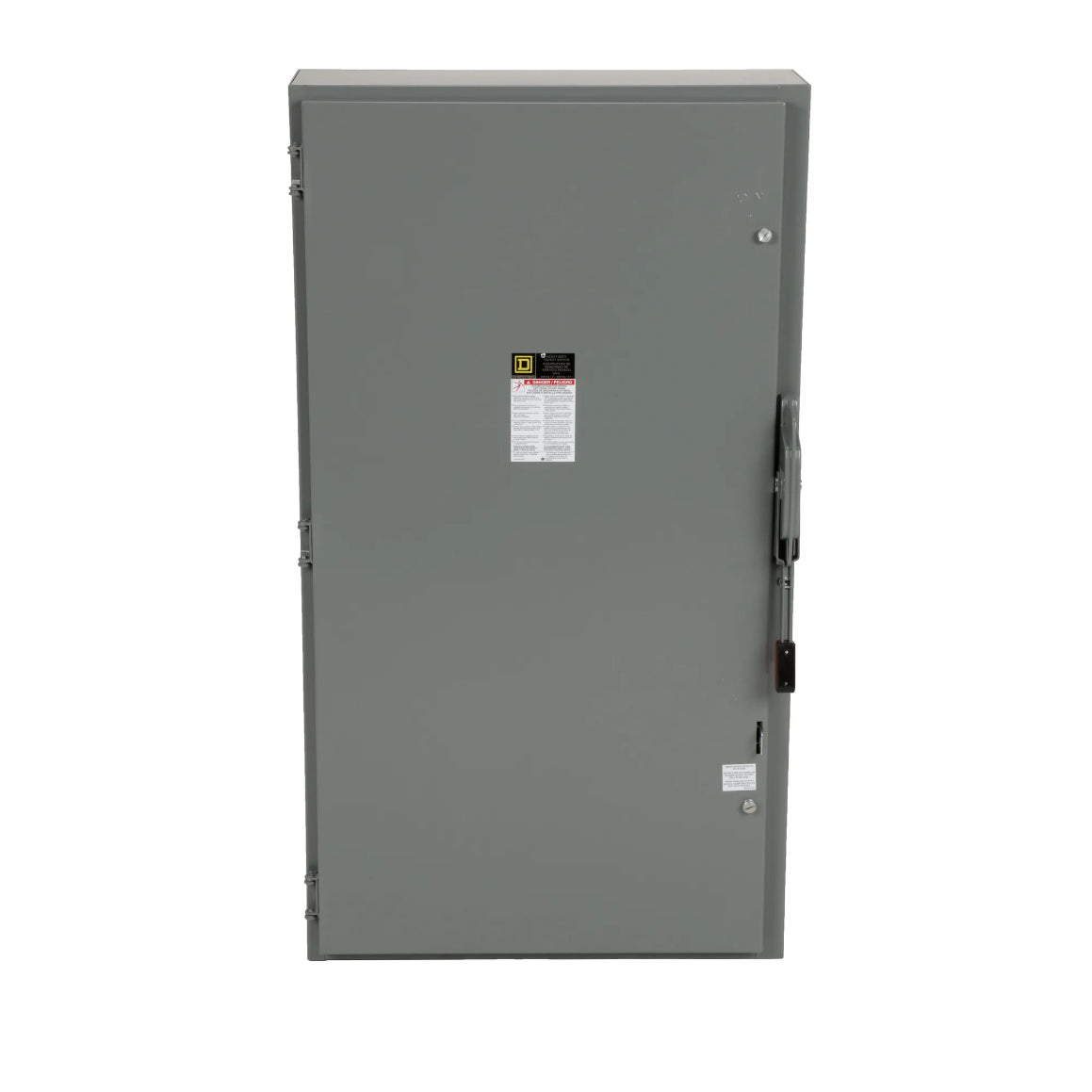

Square D H366AWK is a heavy-duty industrial disconnect switch designed for safely isolating and protecting three-phase electrical circuits. It is rated for 600V and 600A, featuring a robust construction with dimensions of 1174.75 mm H x 666.75 mm W x 257.30 mm D and a weight of 175.001 lb. The switch is UL certified, complies with NEMA 12 standards for its enclosure, and is engineered for an interrupting capacity of 200kA at 600V. Its design is suitable for demanding industrial applications requiring reliable circuit protection and isolation.
Key Features & Specifications
Type: H-Series, Fusible Disconnect Switch, Single Configuration
Voltage Rating: 600V AC
Current Rating: 600A
Dimensions: 1174.75 mm x 666.75 mm x 257.30 mm (H x W x D)
Weight: 175.001 lb
Standards: UL Certified, NEMA 12 Enclosure
Applications: Industrial power distribution and circuit isolation
Switch Type: Fusible Disconnect
Configuration: Single
Poles: 3
Phase: 3
AIC Rating: 200kA @ 600V
Wire Size: AWG 3/0 to 500 Kcmil (Copper or Aluminum)
