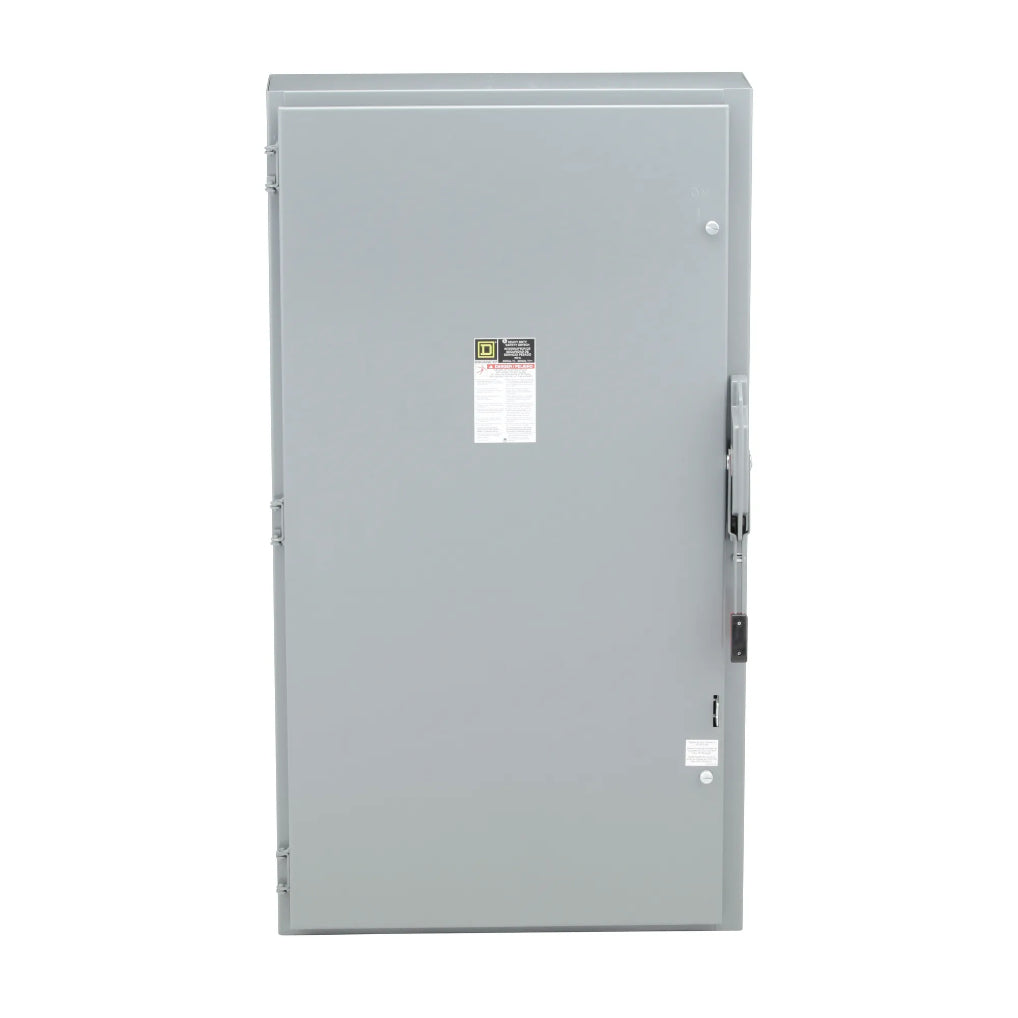

Square D H365 is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial environments. It features a 600V AC voltage rating and a 400A current rating, housed within a robust NEMA 1 enclosure measuring 1276.35 mm H x 701.80 mm W x 257.30 mm D and weighing 167.999 lb. The switch is UL listed and offers a high 200kA interrupting capacity at 600V, ensuring compliance with critical safety standards for three-phase power systems. Its design accommodates a wide range of conductor sizes, from AWG 1/0 to 750 Kcmil for copper or aluminum, making it suitable for main service disconnects, motor control centers, and industrial power distribution.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 1276.35 mm H x 701.80 mm W x 257.30 mm D (50.25 in x 27.63 in x 10.13 in)
  • Weight: 167.999 lb
  • Standards: UL Listed
  • Applications: Main Service Disconnects, Motor Control Centers, Industrial Power Distribution
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Phase: 3
  • Wire Size: AWG 1/0 to 750 Kcmil (Copper or Aluminum)
  • Fuse Class: R
  • NEMA Rating: NEMA 1
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901482192
  • GTIN: 00785901482192
