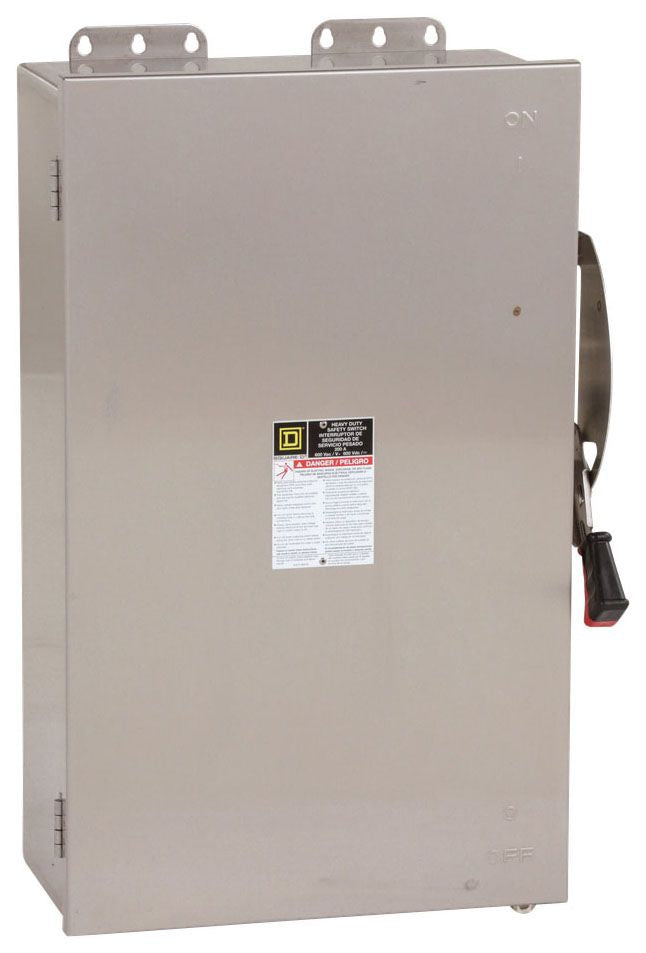

Square D H364NDS - Fusible Safety Switch 200A 600V 3P

Square D
Price
Save $2,388.35
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H364NDS is a fusible safety switch designed for providing reliable circuit isolation and protection in demanding industrial environments. It is rated for 600V AC and 200A, featuring a robust three-pole, single-configuration design with a 200kA interrupting capacity at 600V. The switch is housed in a NEMA 4/4X rated enclosure measuring 736.6 mm H x 488.95 mm W x 225.55 mm D and weighing 54.201 lb, constructed for durability. It complies with industry standards for safety disconnects and is engineered for use in three-phase power distribution systems, motor control centers, and industrial machinery where Class R fuse protection is required.

Key Features & Specifications
  • Type: Fusible Safety Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 488.95 mm W x 225.55 mm D (29 in x 19.25 in x 8.88 in)
  • Standards: NEMA 4/4X Enclosure Rating
  • Applications: Industrial power distribution, motor control, machinery isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: AWG 6 to 250 KCMil, Copper/Aluminum
  • Weight: 54.201 lb


Product Identification
  • UPC: 078590126677
  • GTIN: 00785901266778
