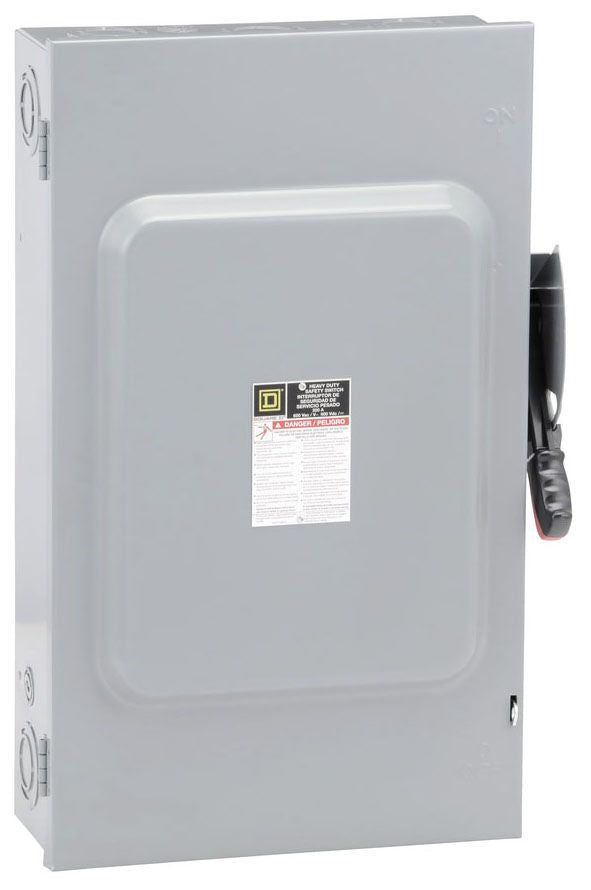

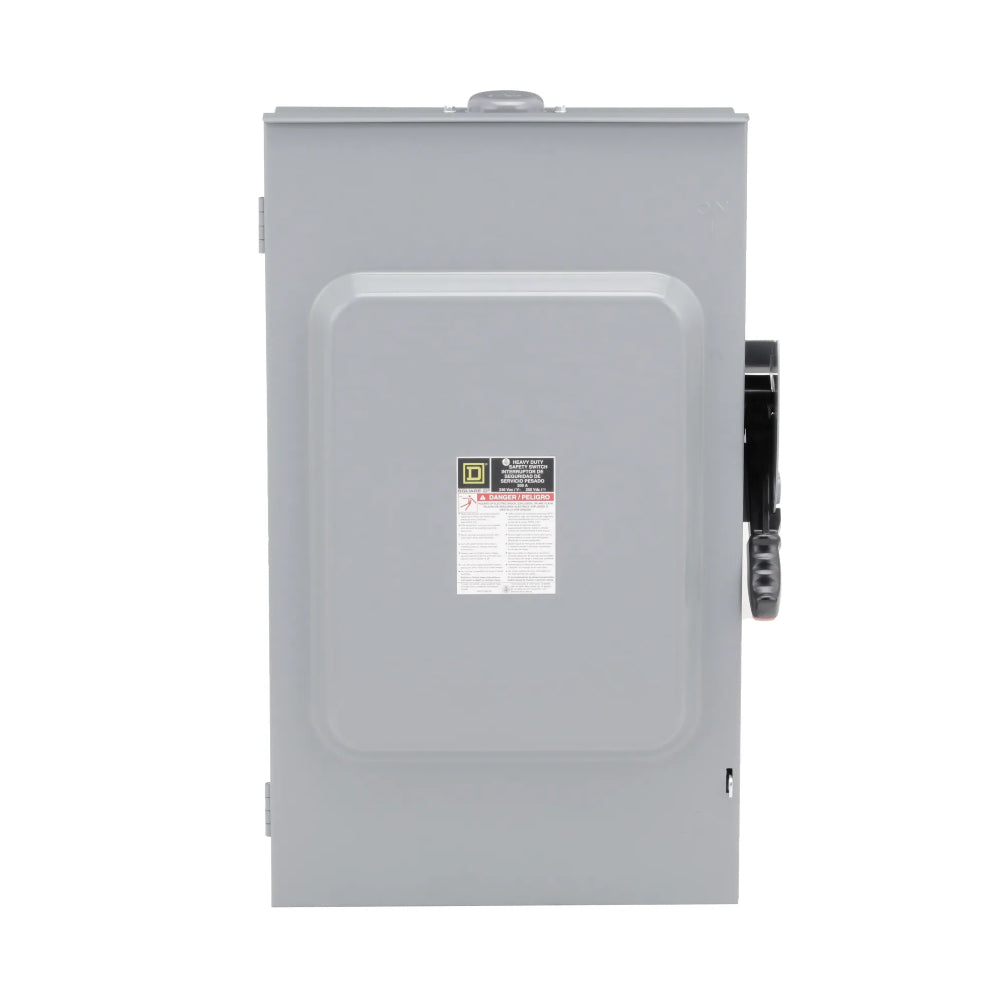

Square D H364 is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 200A in a 3-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 736.6 mm H x 469.9 mm W x 209.55 mm D and a weight of 44.8 lb. The switch is UL Listed and engineered for a high interrupting capacity of 200kA at 600V, ensuring reliable protection. Its design accommodates Class R fuses and is compatible with LD frames, making it suitable for controlling motors, HVAC equipment, and industrial machinery where a visible break is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Single, 3-Pole
  • Switch Style: Fusible
  • AIC Rating: 200kA @ 600V
  • Phase: 3
  • Fuse Class: R
  • Wire Size: #6 to 250 AWG/kcmil (Al/Cu)
  • Dimensions: 29 in (736.6 mm) H x 18.5 in (469.9 mm) W x 8.25 in (209.55 mm) D
  • Weight: 44.8 lb
  • NEMA Rating: 1
  • Certification: UL Listed
  • Compatible Frames: LD
  • Applications: Industrial power distribution, motor control, HVAC systems, machinery disconnects


Product Identification
  • UPC: 785901482314
  • GTIN: 00785901482314
