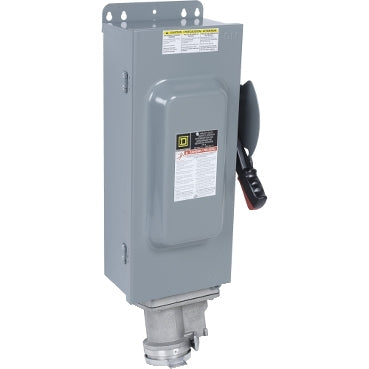

Square D H363AWC - Fusible Safety Switch 100A 600V 3P

Square D
Price
Save $6,087
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H363AWC is a fusible safety switch disconnect designed for providing reliable circuit isolation and overcurrent protection in demanding three-phase industrial environments. It is rated for 100A at 600V AC with a 200kA interrupting capacity, housed in a robust NEMA 12 enclosure measuring 20.5 in (520.7 mm) H x 10.5 in (266.7 mm) W x 7 in (177.8 mm) D and weighing 31 lb. This UL-listed disconnect is constructed for use with Class J or R fuses and is engineered to meet rigorous industrial safety standards for motor control and power distribution applications.

Key Features & Specifications
  • Type: Fusible Safety Switch Disconnect, NEMA 12 Enclosure
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 20.5 in H x 10.5 in W x 7 in D (520.7 mm x 266.7 mm x 177.8 mm)
  • Standards: UL Listed
  • Applications: Industrial motor control, power distribution panel isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 12
  • Fuse Class: J, R
  • Wire: 3
  • Weight: 31 lb
  • Country of Origin: United States


Product Identification
  • UPC: 78590107701
  • GTIN: 00785901077015
