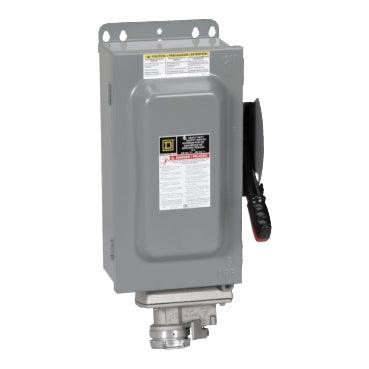

Square D H361AWC - Fusible Safety Switch, 600V 30A 3-Pole

Square D
Price
Save $77.72
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H361AWC is a fusible safety switch designed for providing visible circuit isolation and overcurrent protection in industrial power distribution. It is rated for 600V AC, 30A, 3-phase operation and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The unit is constructed with a NEMA 3R/12 rated enclosure measuring 419.1 mm H x 266.7 mm W x 177.8 mm D and weighs 23.001 lb, and it is UL listed for compliance with industry safety standards. This disconnect is typically applied in industrial control panels and motor branch circuits where reliable isolation for Class J or R fuses is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Phase: 3
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: J, R
  • Wire: 3
  • NEMA Rating: 3R/12
  • Dimensions: 419.1 mm H x 266.7 mm W x 177.8 mm D (16.5 in x 10.5 in x 7 in)
  • Weight: 23.001 lb
  • Certification: UL Listed
  • Compatible Frames: ED
  • Country of Origin: United States


Product Identification
  • UPC: 78590107697
  • GTIN: 00785901076971
