Square D H327N - Fusible Safety Switch 800A 240V AC/DC
Square D H327N Disconnect Switch (Fusible) - Essential Electric Supply
Square D H327N - Fusible Safety Switch 800A 240V AC/DC
Square D H327N - Fusible Safety Switch 800A 240V AC/DC
Square D H327N Disconnect Switch (Fusible) - Essential Electric Supply
Square D H327N - Fusible Safety Switch 800A 240V AC/DC

Square D H327N - Fusible Safety Switch 800A 240V AC/DC

Square D
Price
Save $3,970.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

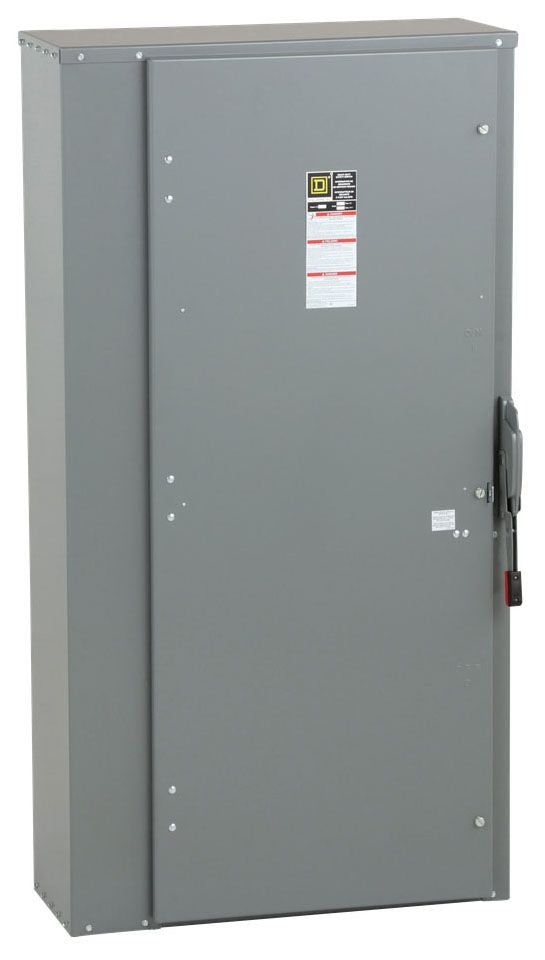

Square D H327N is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial power distribution applications. It is rated for 800A at 240V AC/250V DC and features a 200kA interrupting capacity, housed within a robust NEMA 1 enclosure measuring 1755.9 mm H x 930.15 mm W x 450.85 mm D and weighing 356 lb. The switch is UL Listed and engineered for three-phase systems, utilizing Class R or L fuses for coordinated protection. Its design ensures safe disconnection and is typically applied in industrial control panels, motor control centers, and main service entrance equipment.

Key Features & Specifications
  • Type: H-Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC / 250V DC
  • Current Rating: 800 Amps
  • AIC Rating: 200kA at 240V
  • Configuration: Single, 3-Pole
  • Phase: 3
  • Fuse Class: R, L
  • NEMA Rating: NEMA 1
  • Dimensions: 1755.9 mm H x 930.15 mm W x 450.85 mm D (69.13 in x 36.62 in x 17.75 in)
  • Weight: 356 lb
  • Standards: UL Listed
  • Compatible Frames: KM
  • Applications: Industrial power distribution, motor control centers, main service disconnects


Product Identification
  • UPC: 785901195375
  • GTIN: 00785901195375
