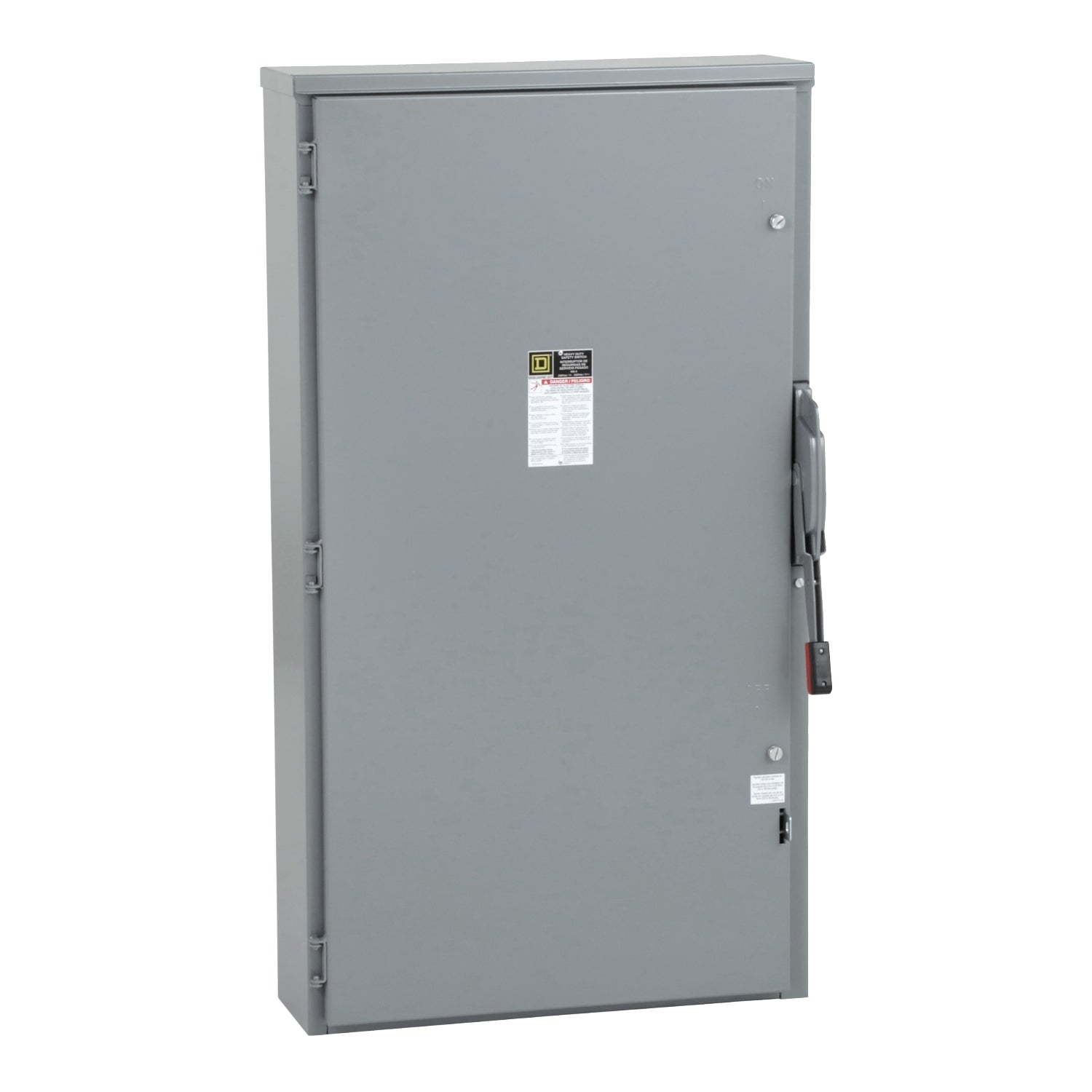

Square D H325R is a heavy-duty industrial disconnect switch designed for providing reliable circuit isolation and protection in demanding three-phase applications. It is rated for 400A at 240V AC and features a fusible switch style with Class R fuses, offering an interrupting capacity of 200kA at 240V. The robust enclosure measures 1277.87 mm H x 708.15 mm W x 257.30 mm D, weighs 175.001 lb, and carries a NEMA 3R rating for outdoor suitability. This UL-listed device is engineered for compatibility with EH3 frames and is constructed for use in industrial power distribution, motor control centers, and main service disconnects where high fault current protection is critical.

Key Features & Specifications
  • Type: Fusible Disconnect Switch, 3-Pole, Single Configuration
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Dimensions: 1277.87 mm H x 708.15 mm W x 257.30 mm D (50.31 in x 27.88 in x 10.13 in)
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial Power Distribution, Motor Control Centers, Main Service Disconnects
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire: 4
  • Compatible Frames: EH3
  • Weight: 175.001 lb


Product Identification
  • UPC: 785901451433
  • GTIN: 00785901451433
