Square D H325N - Fusible Safety Switch 400A 240V 3P (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

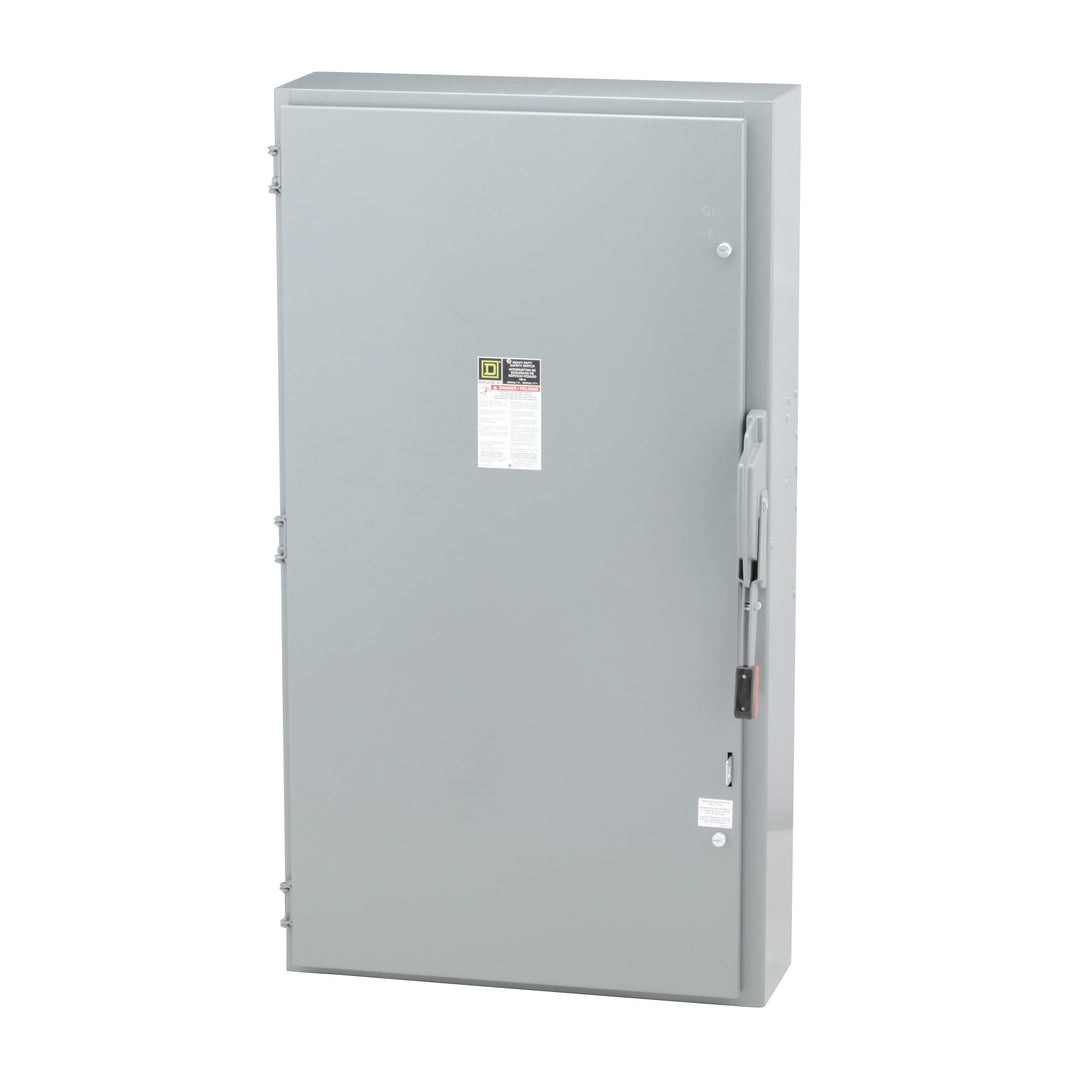

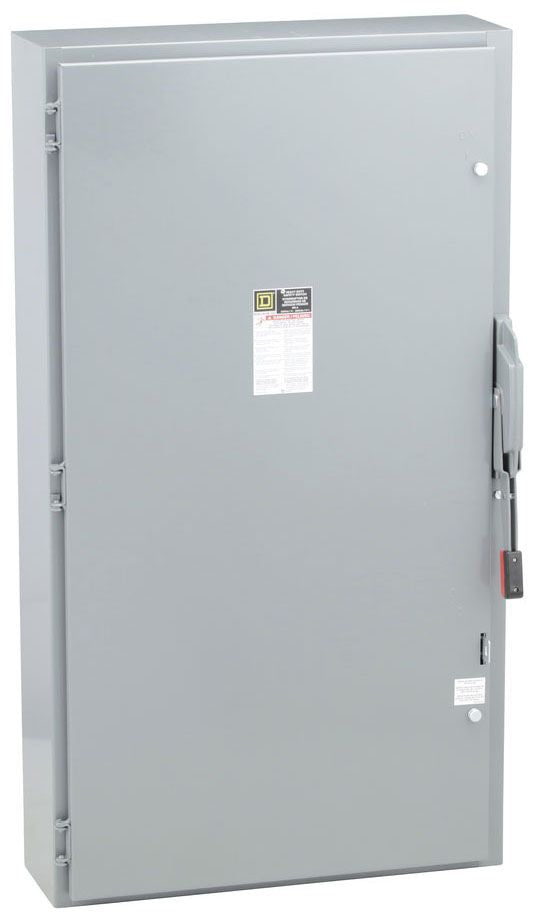

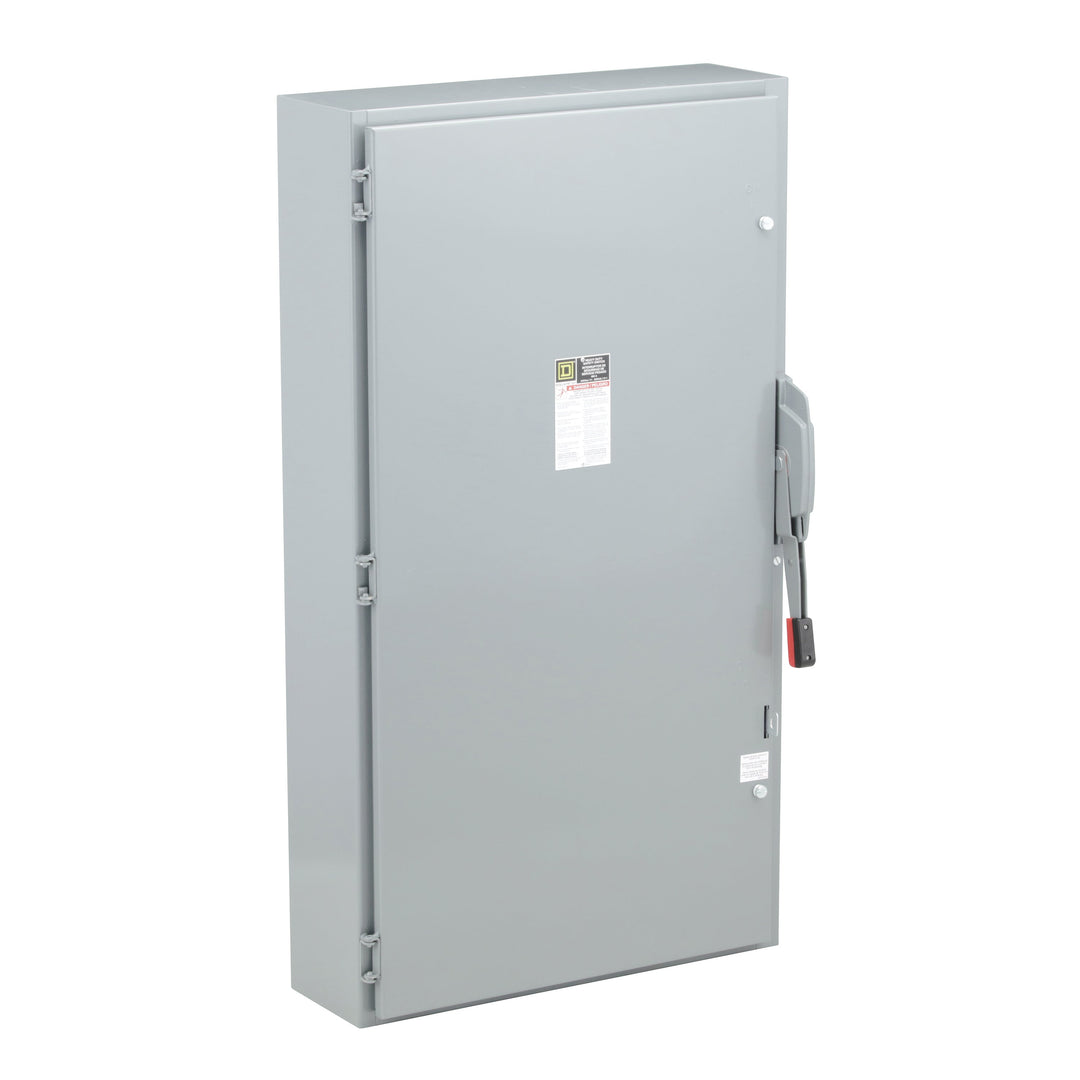

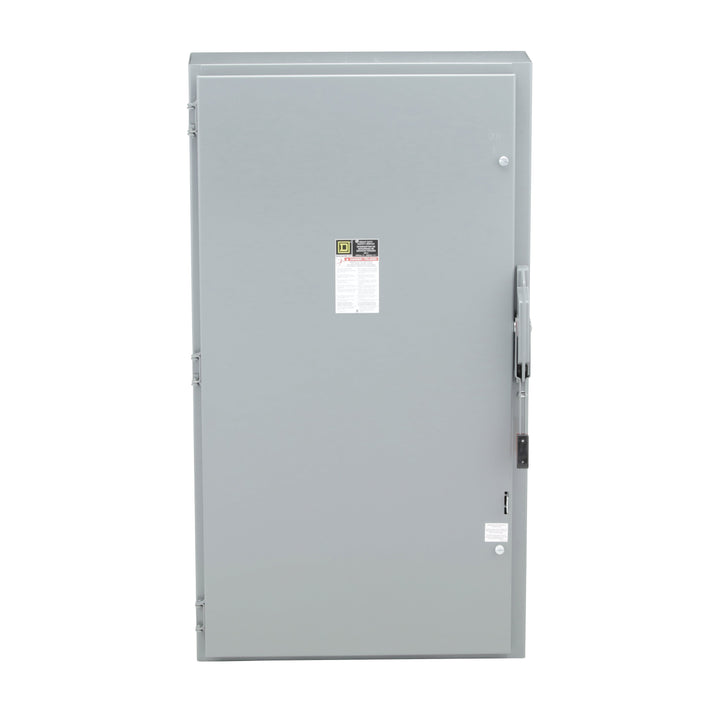

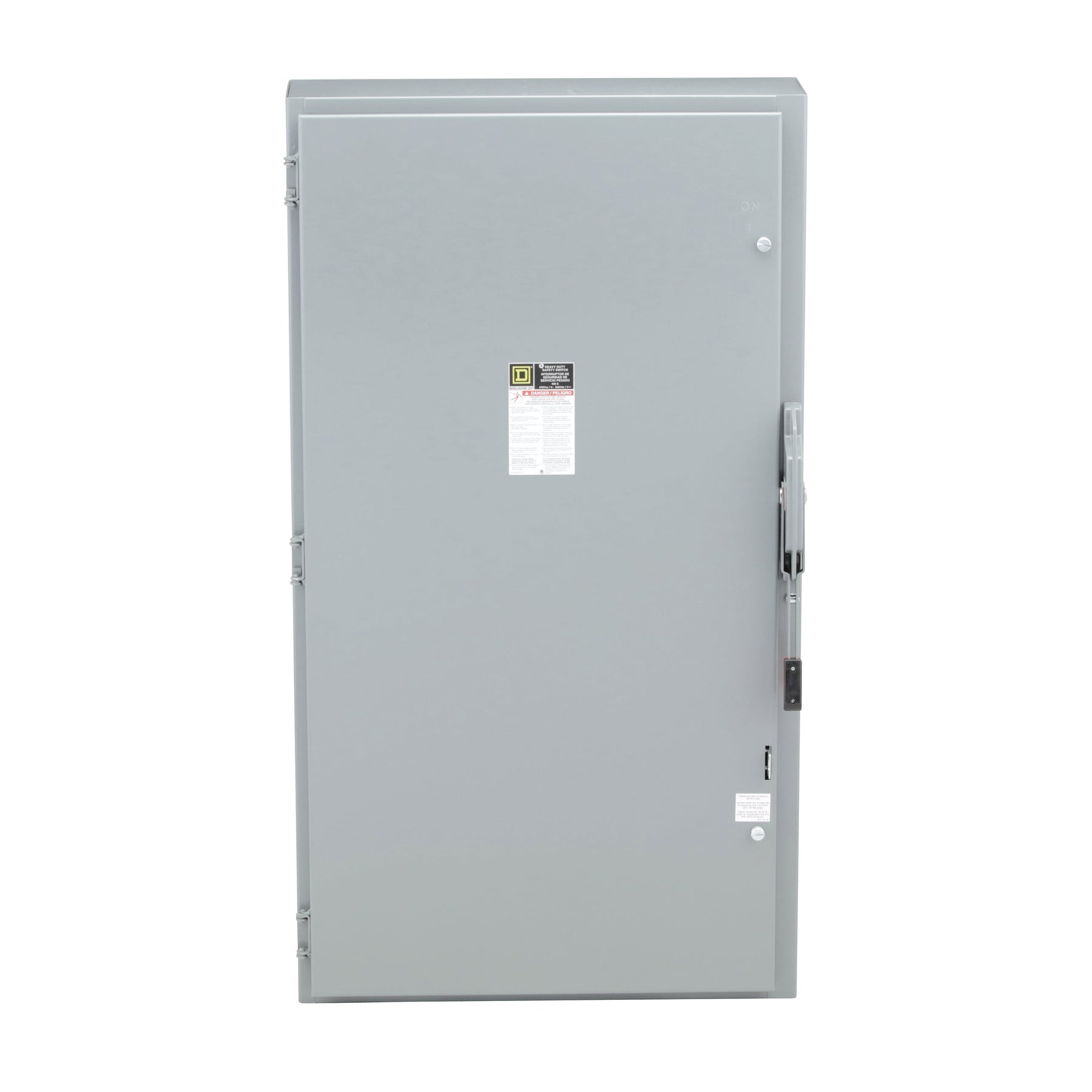

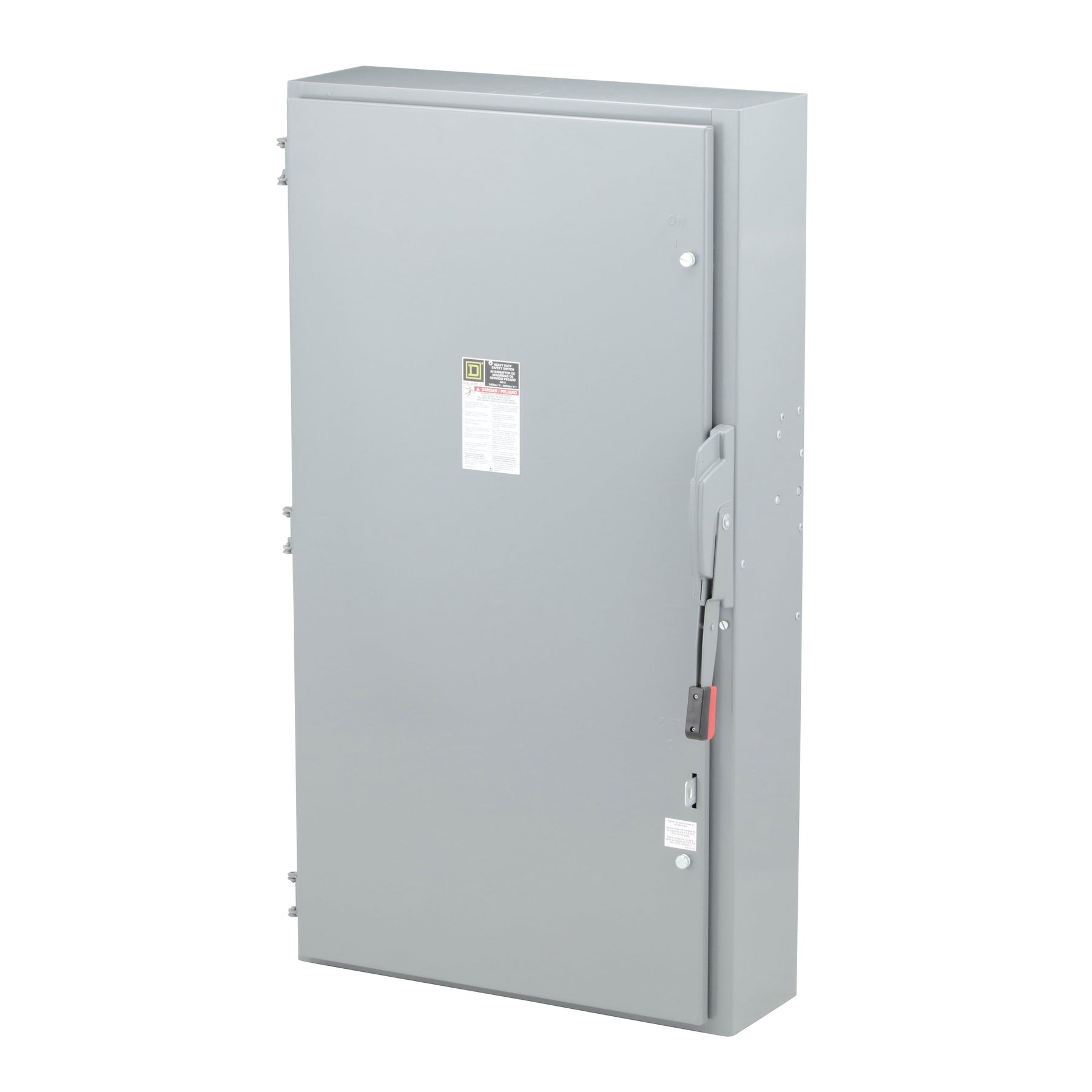

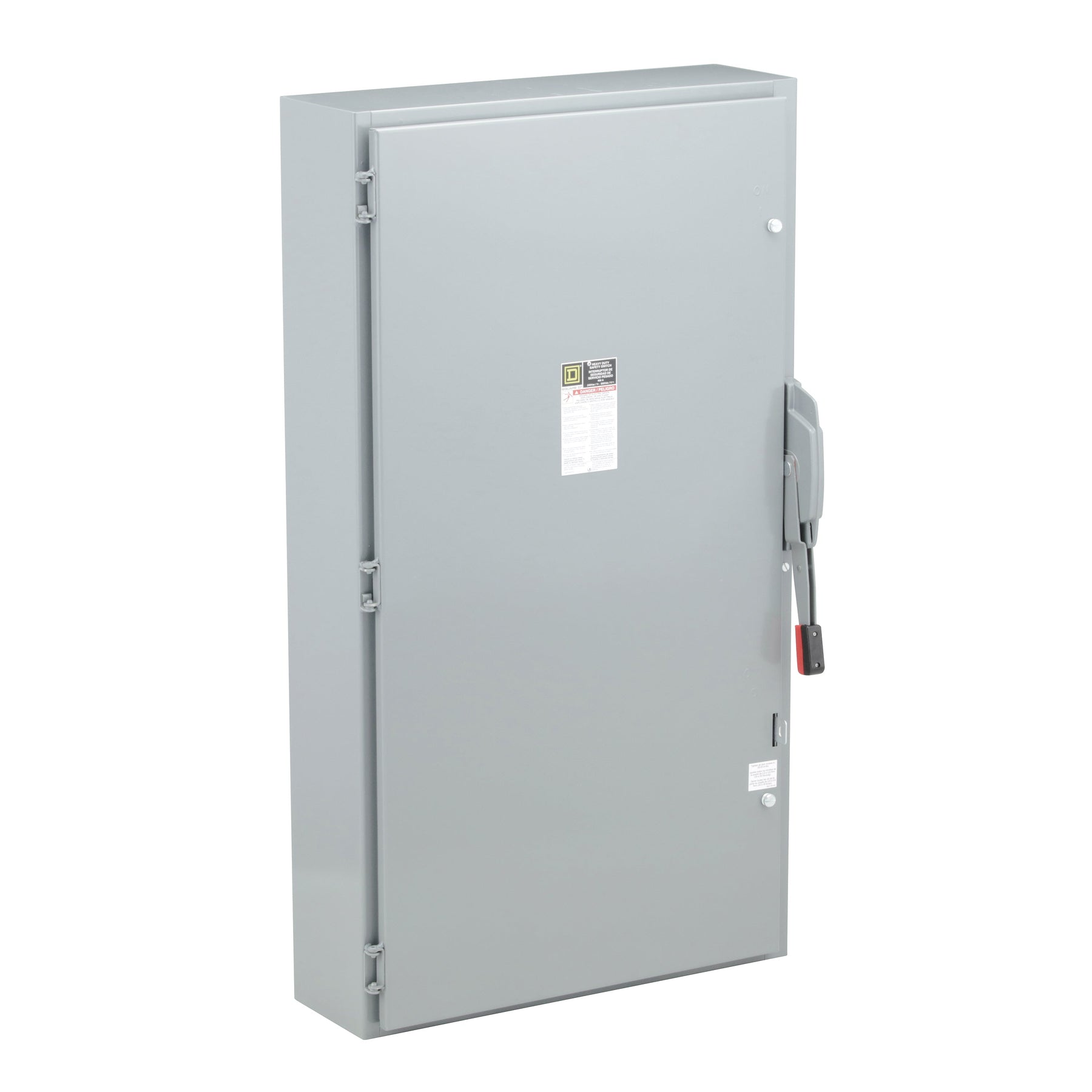

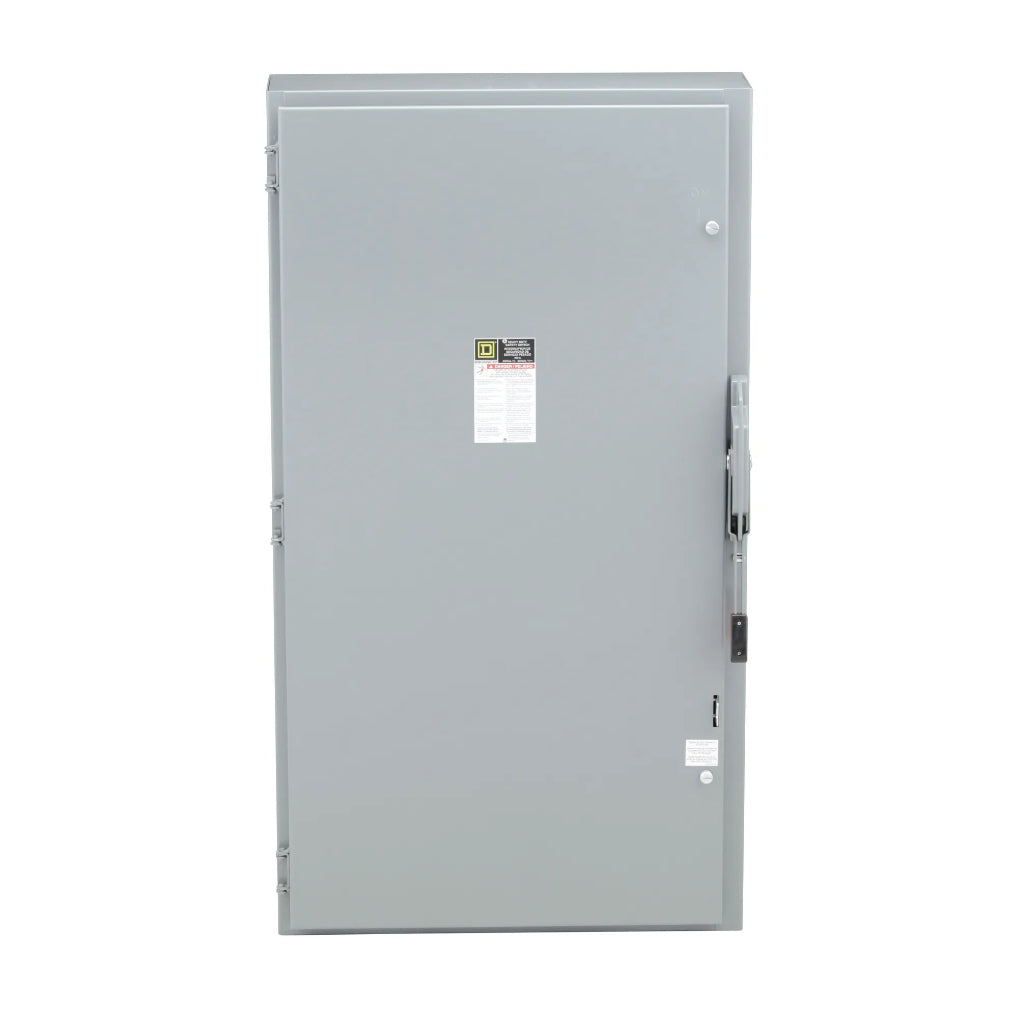

Square D H325N is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding three-phase industrial applications. It features a 400A current rating and a 240V AC voltage rating, housed within a robust NEMA 1 enclosure measuring 1276.35 mm H x 701.80 mm W x 257.30 mm D and weighing 168 lb. The switch is UL listed and offers a high interrupting capacity of 200kA at 240V, ensuring compliance with critical safety standards for industrial power distribution systems, including motor control centers and main service disconnects.

Key Features & Specifications
  • Type: H-Type Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Phase: 3
  • Poles: 3
  • Configuration: Single
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Switch Style: Fusible
  • Wire Size: #1/0 to 750 AWG AL, #1/0 to 750 Kcmil CU
  • NEMA Rating: NEMA 1
  • Dimensions: 1276.35 mm H x 701.80 mm W x 257.30 mm D (50.25 in x 27.63 in x 10.13 in)
  • Weight: 168 lb
  • Standards: UL Listed
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901450368
  • GTIN: 00785901450368
