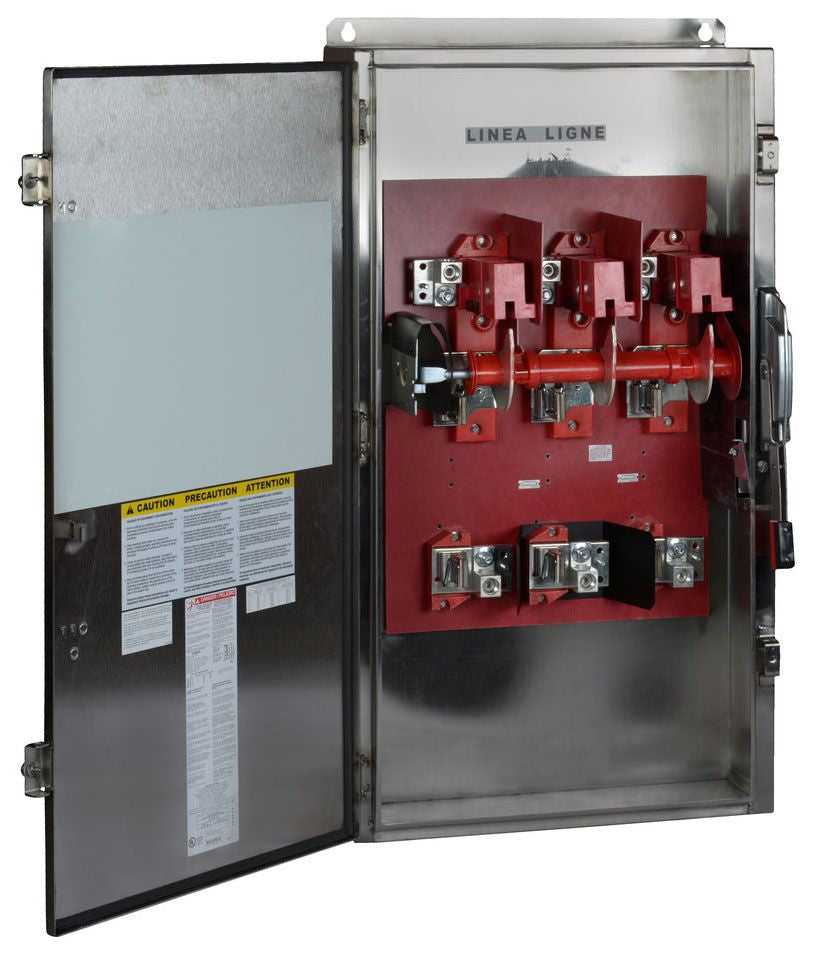

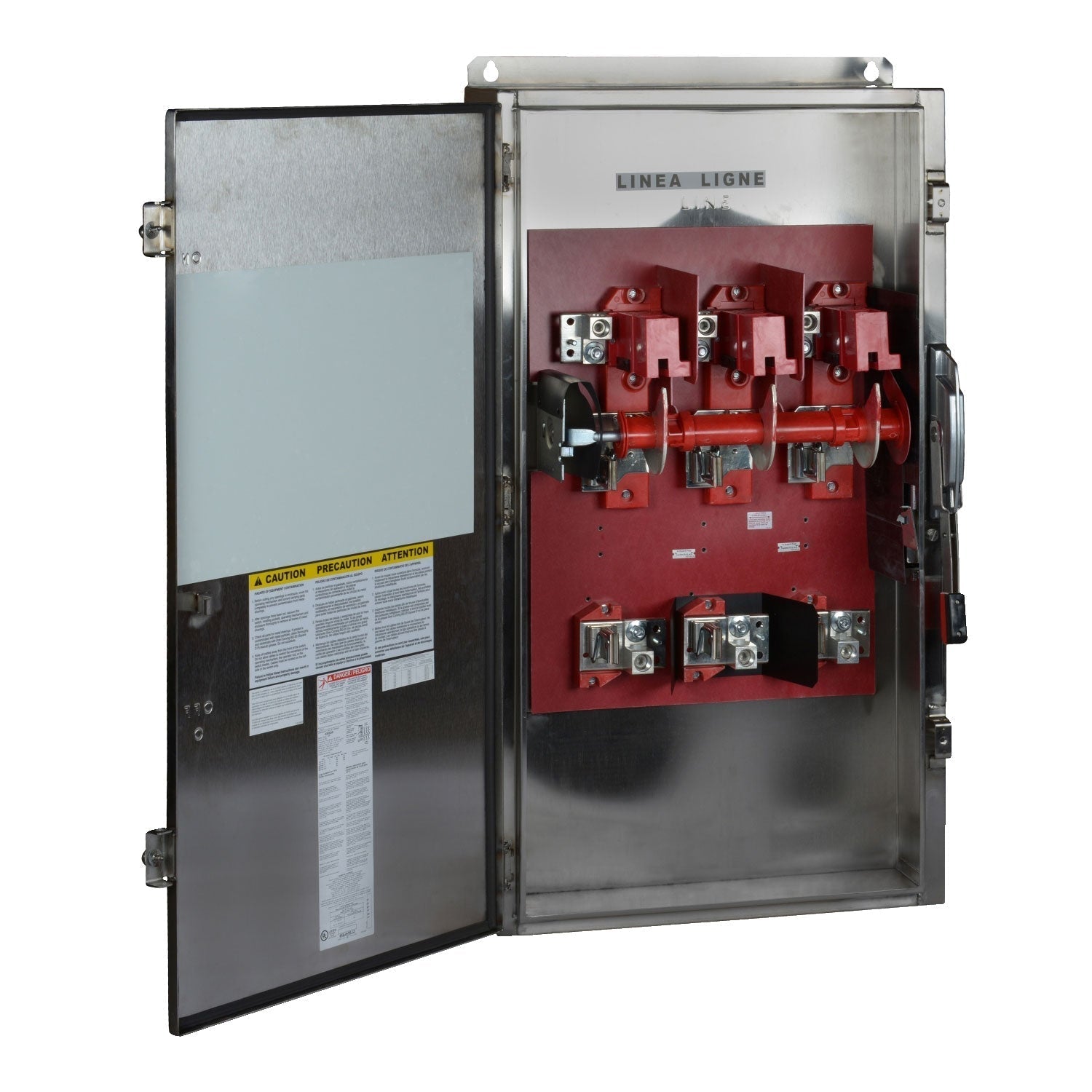

Square D H325DS - Fusible Safety Switch 400A 3-Pole (200kA AIC)

Price
Regular price $14,510.79
Regular price $14,961.00 Sale price $14,510.79
Save $450.21
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D H325DS is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial environments. It features a 400A current rating and a 240V AC voltage rating, engineered to handle high-capacity three-phase power distribution. The robust NEMA 5 enclosure measures 1174.75 mm H x 666.75 mm W x 257.30 mm D and is constructed for durability with a UL-listed certification. This disconnect switch complies with industry standards and offers a high interrupting capacity of 200kA at 240V, making it suitable for main service entrance, feeder, and branch circuit applications in manufacturing plants and commercial facilities.

Key Features & Specifications
  • Type: H-Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Dimensions: 1174.75 mm H x 666.75 mm W x 257.30 mm D (46.25 in x 26.25 in x 10.13 in)
  • Standards: UL Listed
  • Applications: Main Service, Feeder, and Branch Circuit Protection
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • NEMA Rating: NEMA 5
  • Phase: 3
  • Fuse Class: R
  • Weight: 180.001 lb
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901333333
  • GTIN: 00785901333333
