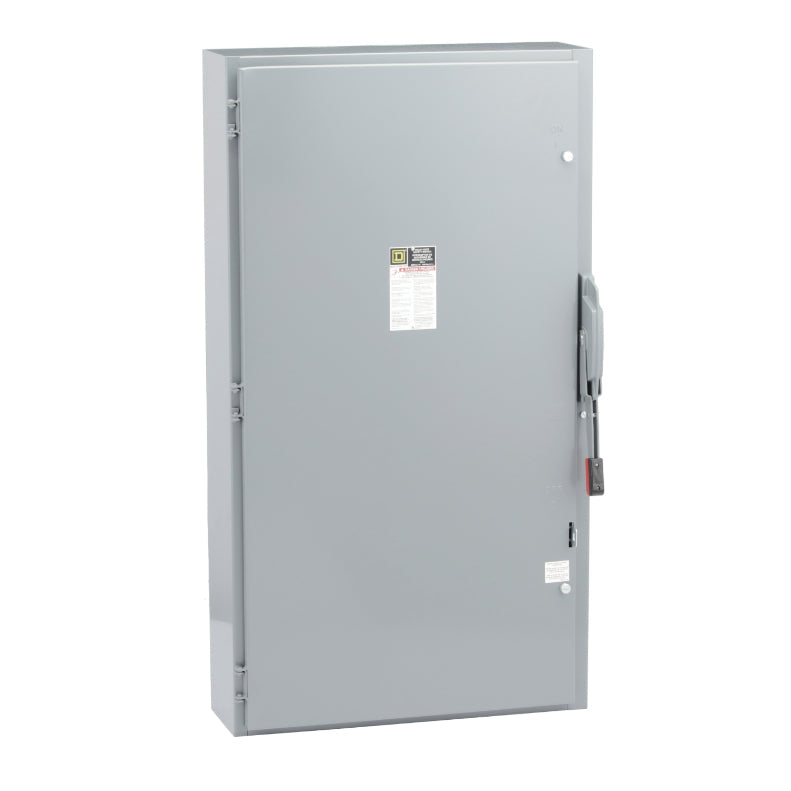

Square D H325 - Fusible Safety Switch 400A 240V 3-Phase
Square D H325 - Fusible Safety Switch 400A 240V 3-Phase
Square D H325 Disconnect Switch (Fusible) - Essential Electric Supply
Square D H325 - Fusible Safety Switch 400A 240V 3-Phase
Square D H325 - Fusible Safety Switch 400A 240V 3-Phase

Square D H325 - Fusible Safety Switch 400A 240V 3-Phase

Square D
Price
Save $2,606.74
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D H325 is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution. It is rated for 400A at 240V AC in a three-phase configuration and features a robust NEMA 1 enclosure with dimensions of 1276.35 mm H x 701.80 mm W x 257.30 mm D and a weight of 170.001 lb. The switch is UL-certified and offers a high interrupting capacity of 200kA at 240V, ensuring compliance with stringent safety standards for protecting electrical equipment and personnel in demanding environments such as manufacturing facilities and commercial buildings.

Key Features & Specifications
  • Type: H-Type Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Phase: 3
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Switch Style: Fusible
  • Wire Size: AWG 1/0 to 750 Kcmil (Copper/Aluminum)
  • NEMA Rating: NEMA 1
  • Dimensions: 1276.35 mm H x 701.80 mm W x 257.30 mm D (50.25 in x 27.63 in x 10.13 in)
  • Weight: 170.001 lb
  • Standards/Certification: UL
  • Compatible Frames: NSE
  • Family: Series F
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901451365
  • GTIN: 00785901451365
