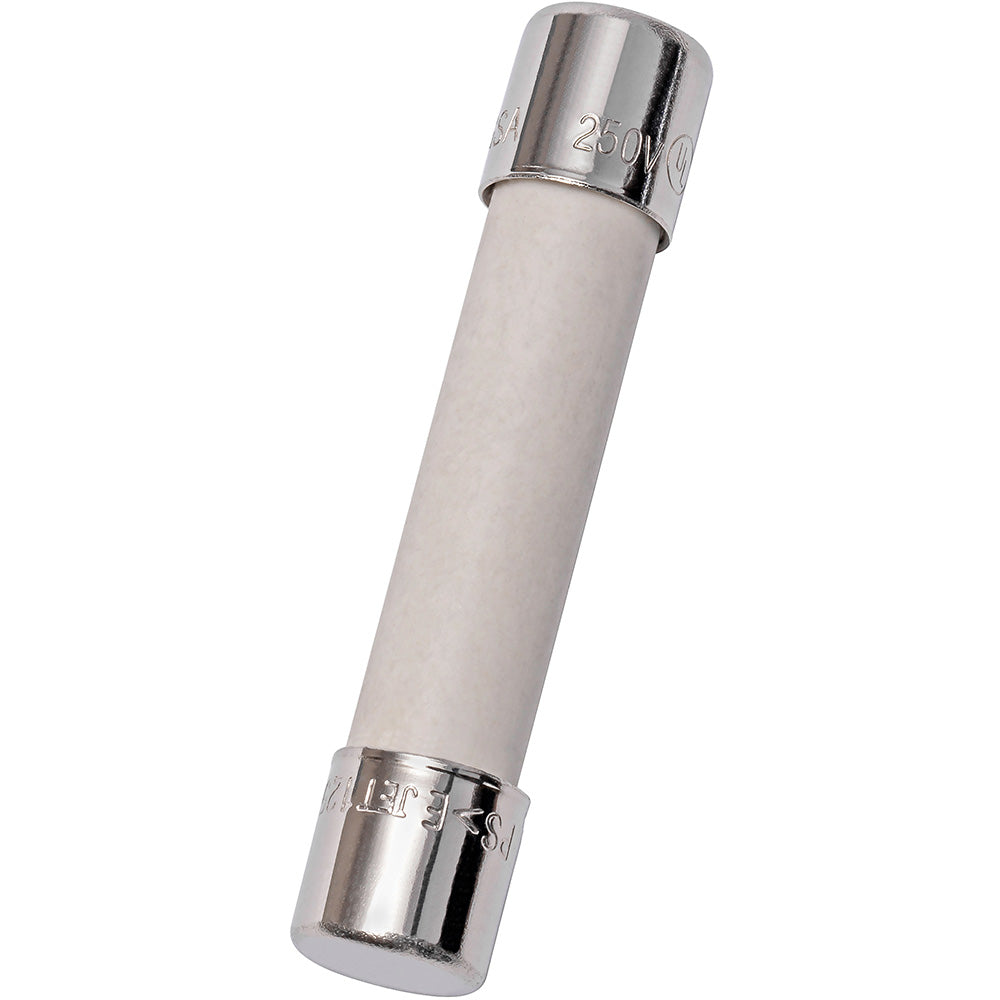

Ferraz Shawmut GSA7 - Low Voltage Time-Delay Fuse 7A@250V (200kA AIC)

Ferraz Shawmut GSA7 is a low-voltage time-delay fuse designed for circuit protection in industrial applications. It features a 250V AC rating with a 7A current capacity and 200kA interrupting rating, housed in a compact 1-1/4" ferrule-connected design with 14mm diameter. The UL/CSA-certified fuse utilizes a single-barrel construction with time-delay characteristics for overload protection. Compliant with North American safety standards, it's commonly used in motor control centers, transformers, and power distribution systems.

Key Features & Specifications

• Type: GSA series time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 7A
• Dimensions: 1-1/4" length, 14mm diameter
• Standards: UL, CSA certified
• Applications: Motor controls, transformers, power distribution
• AIC rating: 200kA@250V
• Connection: Ferrule
• Barrels: 1
• Velocity: Time-Delay
• Weight: 0.006 lb
• Country of Origin: China

Product Identification

• UPC: 782001764197
• GTIN: 00782001764197
