Cutler Hammer GSA5 - Time-Delay Fuse 5A 250V (200kA AIC)

Cutler Hammer
Price
Save $47.05
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

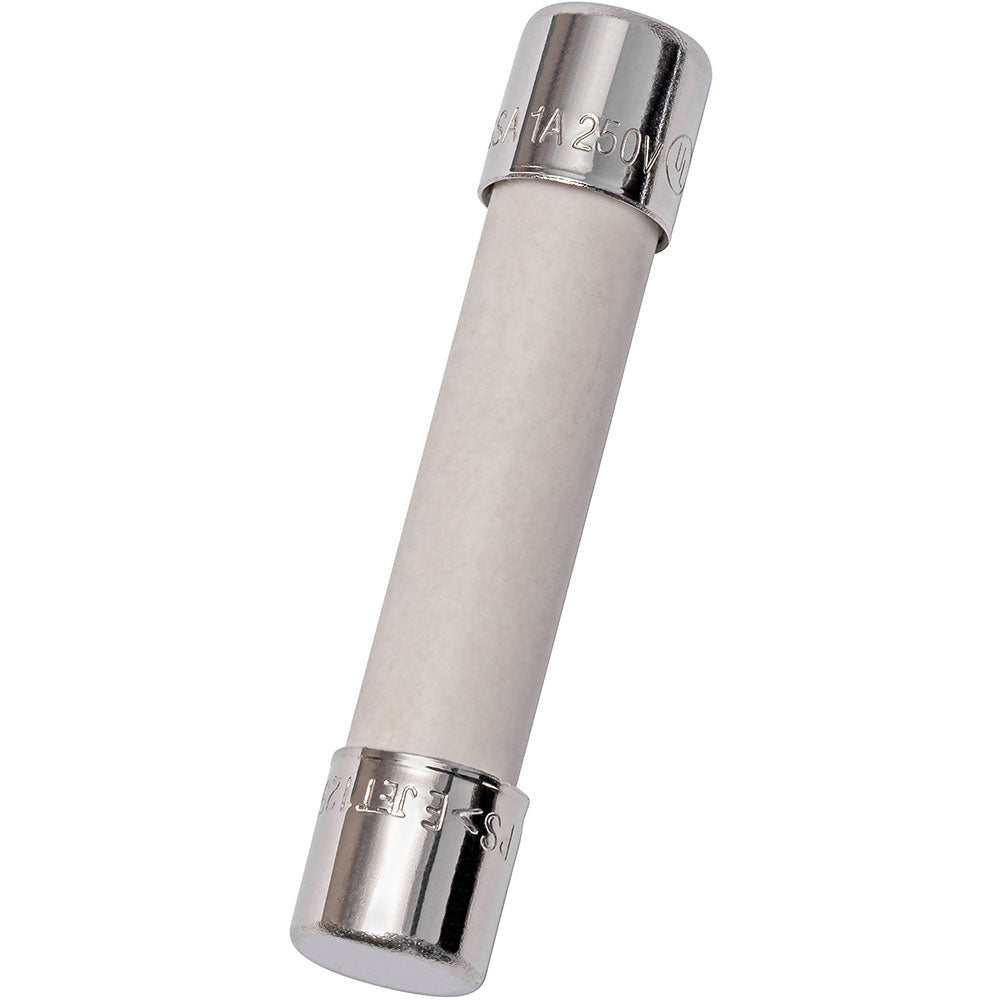

Cutler Hammer GSA5 is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It is rated for 250V AC/DC applications with a 5A current rating and provides a high 200kA interrupting capacity at its rated voltage. The fuse features a compact, single-barrel ferrule construction with dimensions of 52 mm x 28 mm x 126 mm (L/D x H x W) and a 14 mm diameter, built for reliable performance. It complies with UL and CSA standards, ensuring suitability for a wide range of demanding environments. Typical applications include protecting motor circuits, transformers, and control panels where sustained overload protection is required.

Key Features & Specifications
  • Type: GSA Series, Low Voltage, Time-Delay, Single Barrel Ferrule Fuse
  • Voltage Rating: 250V AC/DC
  • Current Rating: 5A
  • Dimensions: 52 mm (Length/Depth) x 28 mm (Height) x 126 mm (Width)
  • Diameter: 14 mm
  • Weight: 0.01495 lb
  • Standards: Certified to UL and CSA
  • AIC Rating: 200kA @ 250V
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Time-Delay
  • Family: GSA Series
  • Country of Origin: China


Product Identification
  • UPC: 782001764173
  • GTIN: 00782001764173
