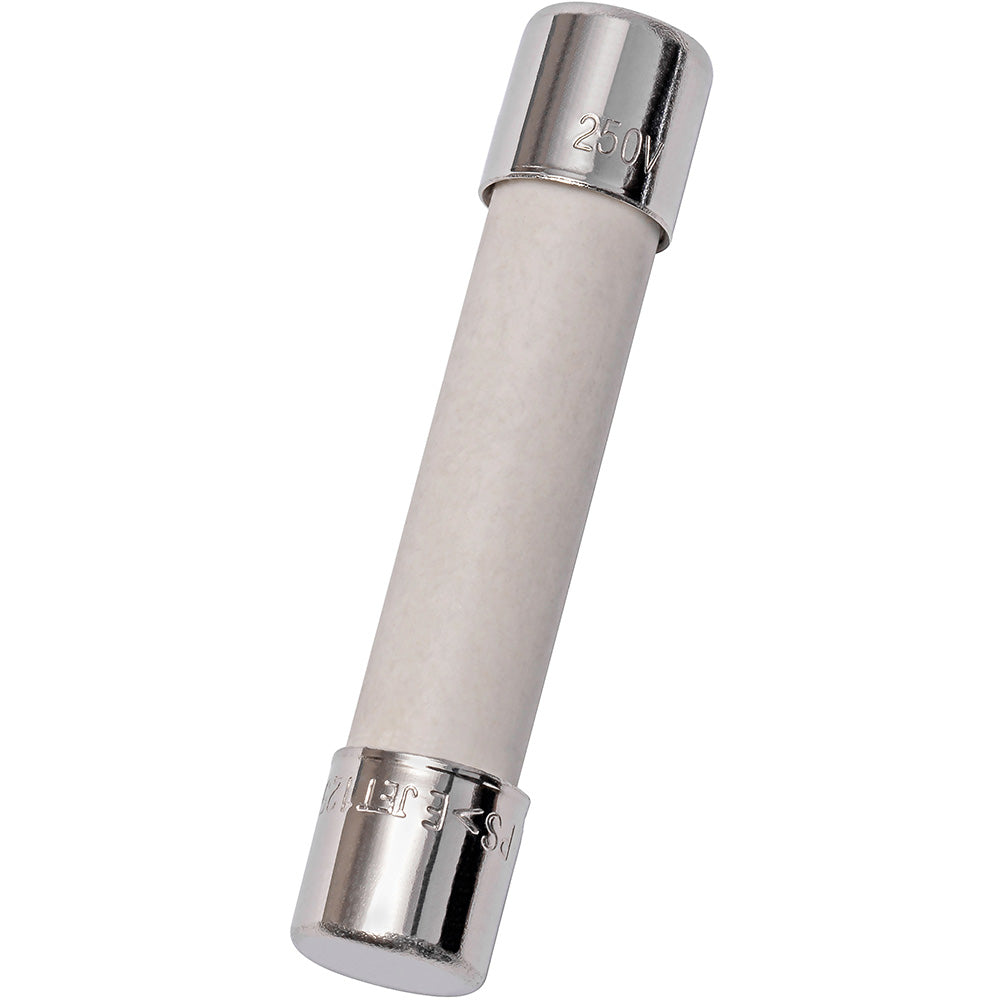

Cutler Hammer GSA20 - Time-Delay Fuse 20A 250V (UL/CSA/CE Certified)

Cutler Hammer GSA20 is a low voltage time-delay fuse designed for circuit protection in industrial applications. It features a 20A current rating and 250V voltage rating with 400A interrupting capacity at 250V AC. The fuse construction includes a single-barrel design with ferrule connections and measures 1-1/4" in length with 14mm diameter. It complies with CE, CSA, and UL standards for safety and performance. Typical applications include motor branch circuits, transformers, and industrial control panels where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: Low voltage time-delay fuse with single-barrel construction and ferrule connections
• Voltage Rating: 250V AC
• Current Rating: 20A
• Dimensions: 1-1/4" length, 14mm diameter
• Standards: CE, CSA, UL certified
• Applications: Motor branch circuits, transformers, industrial control panels
• AIC rating: 400A@250Vac
• Velocity: Time-Delay
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb
• Family: GSA Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782001230937
• GTIN: 00782001230937
