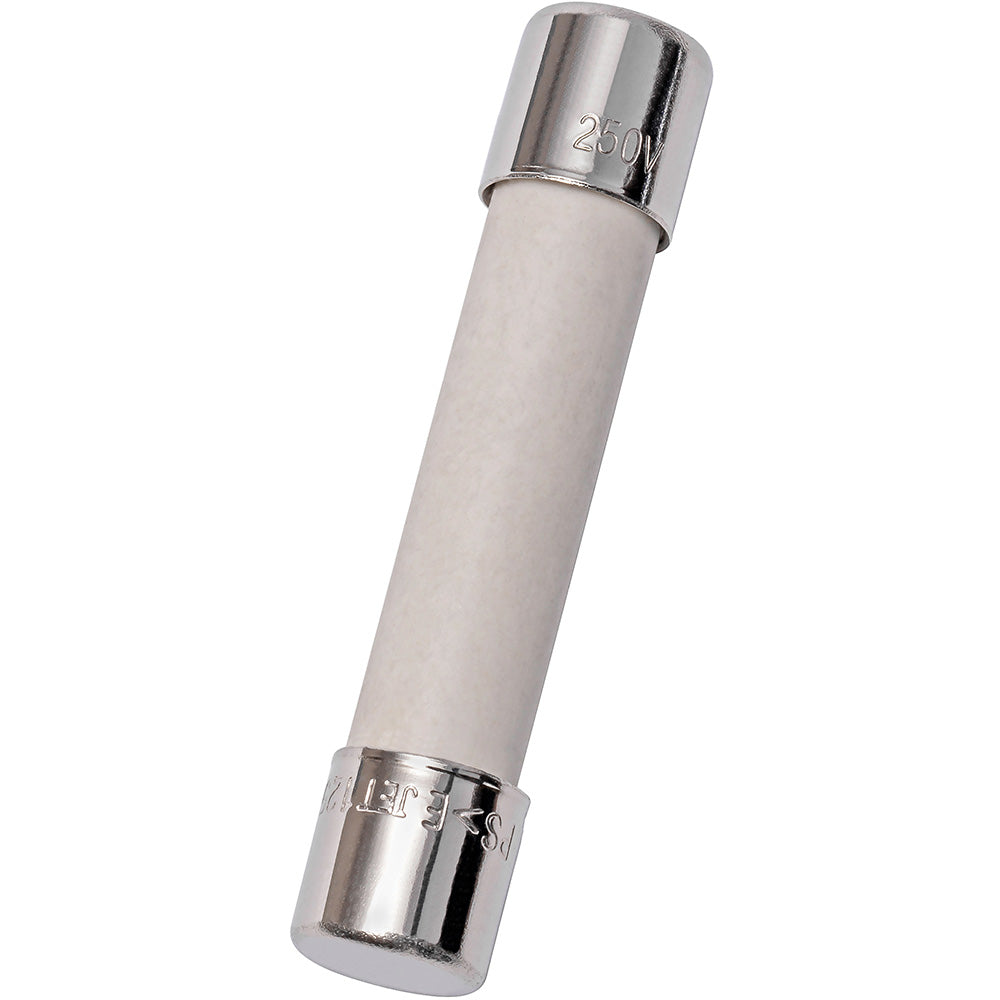

Ferraz Shawmut GSA12 - GSA Time-Delay Fuse 12A@250V (750A AIC)

Ferraz Shawmut GSA12 is a low-voltage time-delay fuse designed for circuit protection in industrial applications. It features a 250V AC voltage rating and 12A current rating with a 750A@250Vac interrupting capacity, housed in a compact 1-1/4" ferrule-connected barrel construction with 14mm diameter. The fuse meets CSA and UL safety standards, employing a time-delay characteristic for motor circuit protection while withstanding temporary overloads. Typical applications include motor branch circuits, transformers, and power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: GSA series time-delay low-voltage fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 12A
• Dimensions: 1-1/4" length, 14mm diameter
• Standards: CSA, UL certified
• Applications: Motor circuits, transformers, power distribution
• AIC rating: 750A@250Vac
• Connection: Ferrule
• Barrels: 1
• Velocity: Time-Delay
• Certification: CSA, UL

Product Identification

• UPC: 782001764227
• GTIN: 00782001764227
