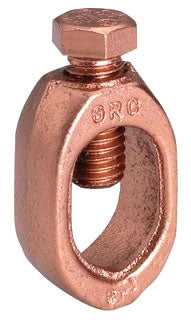

Burndy GRC58 - Ground Rod Clamp 5/8" Rod, 12 AWG-1 AWG
Burndy GRC58 - Ground Rod Clamp 5/8" Rod, 12 AWG-1 AWG

Burndy GRC58 - Ground Rod Clamp 5/8" Rod, 12 AWG-1 AWG

Burndy
Price
Save $990.69
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Burndy GRC58 is a high-strength mechanical ground rod clamp designed for connecting copper cable to ground rods in direct burial applications. It supports copper solid conductors from 10 AWG and stranded conductors from 12 AWG to 1 AWG, fitting 5/8 inch drive rods and 3/8 inch studs. Constructed from durable copper alloy with silicon bronze hardware, this clamp measures 2.18 inches in height, 0.95 inches in width, and 0.63 inches in length, weighing 5.19 lb. It is UL 467 listed for direct burial in earth or concrete, RUS compliant, and RoHS compliant, ensuring reliable grounding in harsh environments. Typical applications include connecting cable to copper clad, galvanized steel, and stainless steel ground rods in industrial settings.

Key Features & Specifications
  • Conductor Size Range: 10 AWG solid, 12 AWG to 1 AWG stranded
  • Rod Size: 5/8 inch drive rod
  • Stud Size: 3/8 inch
  • Material: Copper alloy with silicon bronze hardware
  • UL Listed: Yes, UL 467 for direct burial
  • Industry Standards: RUS compliant
  • RoHS Compliant: Yes
  • Dimensions: 2.18 in height x 0.95 in width x 0.63 in length
  • Application: Cable to copper clad, galvanized steel, stainless steel ground rods
  • Mounting Type: Mechanical clamp
  • Direct Burial Rated: Yes
  • Country of Origin: Mexico
  • Weight: 5.19 lb
  • Certification: UL Listed Direct Burial, UL467


Product Identification
  • UPC: 781810230961
  • GTIN: 00781810230961
